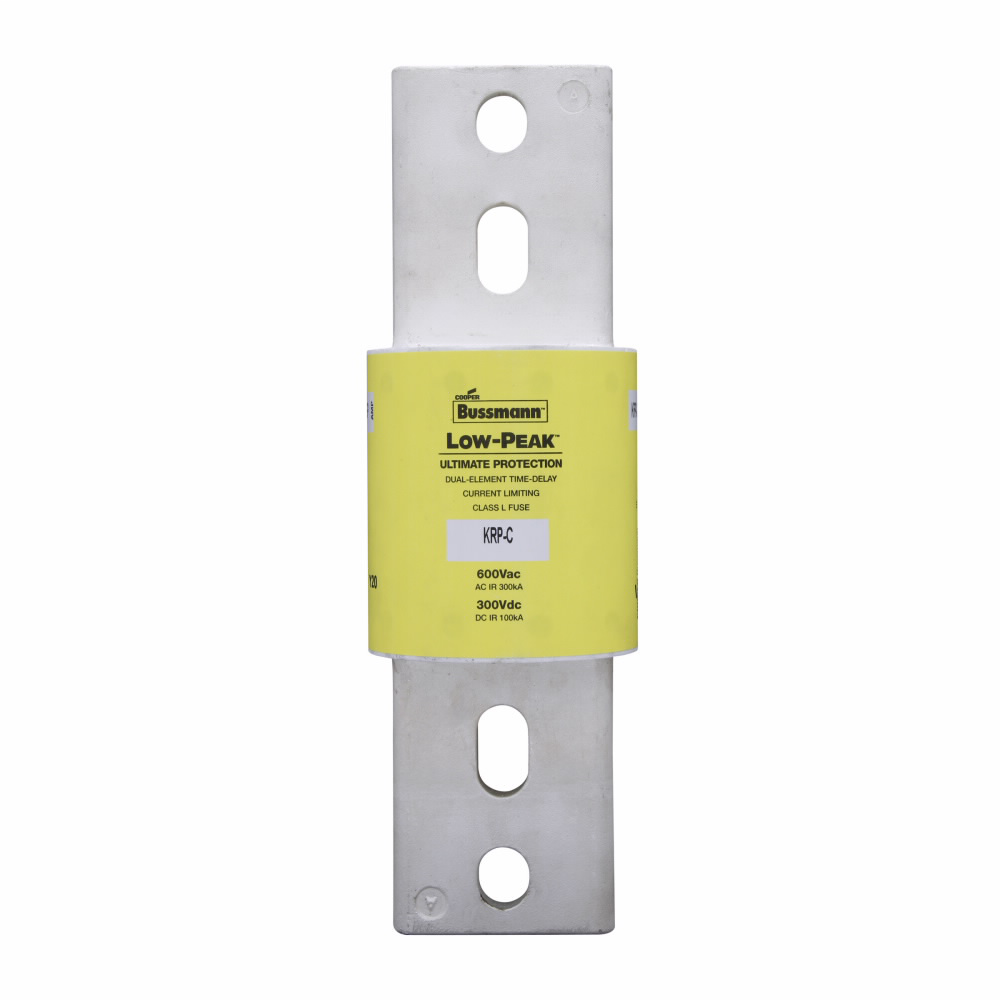

Bussmann KRP-C-2000SP Low Peak Fuse Time Delay 2000 Amp

Product Description

The Bussmann KRP-C-2000SP is a current-limiting, time-delay fuse. Rated at 2000A, this Class L fuse features bolted blade end connections. It is suitable for large distribution switchboards, large machinery disconnects, and power panelboards. The fuse offers an interrupt rating of 300 kAIC at 600V and 100 kAIC at 300Vdc.

• Current-limiting
• Time-delay
• Interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc

Product Highlights

The Bussmann KRP-C-2000SP fuse is a Class L, time-delay fuse with a 2000A amperage rating and high interrupt capacity.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KRP-C-2000SP

Technical Specifications

• Catalog Number: KRP-C-2000SP
• Type: Current Limiting,Time-Delay
• Brand: Bussmann
• Class: Class L
• Height: 3.53 in
• Length: 10.75 in
• Voltage: 600//300 VAC//VDC
• Amperage: 2000 Amp
• Diameter: 3.5 in
• End Type: Blade,Bolted
• Material: Melamine
• Sub Brand: Low-Peak
• Applications: Large Distribution Switchboards, Large Machinery Disconnects, Power Panelboards
• Response Time: 4 sec at 500%
• TC Connection: Bolted blade end x bolted blade end
• Connection Type: Blade
• Interrupt Rating: 100 kAIC
• Product UPC: 05171260520
• 12-Digit UPC: 051712605205
• Product Name: Eaton Bussmann series KRP-C fuse
• Product Length/Depth: 10.75 in
• Product Height: 3.53 in
• Product Width: 3.53 in
• Compliances: RoHS Compliant CE Marked
• Product Type: Fuse
• Amperage Rating: 2000 A
• Interrupt rating: 300 kAIC at 600 Vac 100 kAIC Vdc
• Voltage rating: 600 Vac, 300 Vdc
• Packaging type: Standard
• Connection: Bolted blade end x bolted blade end
• Fuse indicator: Non-indicating
