Bussmann KLM-3 Fuse 3 A

Product Description

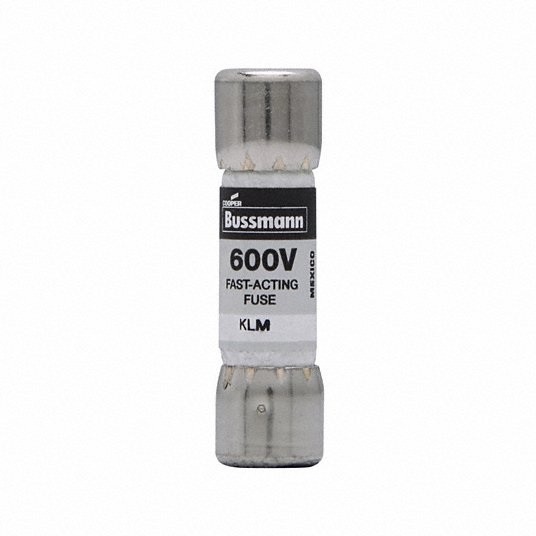

The Bussmann KLM-3 series fuse is a 3A, non-indicating fuse with ferrule end connections. Constructed with a melamine tube and nickel-plated bronze endcaps. It is designed for DC control circuits and PV systems up to 600Vdc. It provides fast-acting protection with a high interrupting rating.

• Non-indicating
• Ferrule end x ferrule end
• 100 kAIC at 600 V

Product Highlights

Fast-acting fuse with melamine tube and nickel-plated bronze endcaps. Ideal for DC control circuits and PV systems.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KLM-3
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Bussmann series KLM fuse
• Catalog Number: KLM-3
• UPC: 051712695107
• EAN: 5027590445382
• Product Type: Fuse
• Amperage Rating: 3 A
• Interrupt rating: 100 kAIC at 600 Vac 50 kAIC at 600 Vdc
• Voltage rating: 600 Vac, 600 Vdc
• Material: Melamine tube Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Amps: 3
• Volts: 600
• Fuse Type: Midget
• Acting Speed: Fast Acting
• Tube Material: Melamine
• Endcaps: Nickel-plated bronze
• Physical Size: 0.41" x 1.5"
• Interrupting Rating @ 600 VAC: 100,000 AIC
• Interrupting Rating @ 600 VDC: 50,000 AIC
• Brand: Bussmann
• Voltage: 600 Volts
• Specification Met: UL
• Mounting Type: Midget
• Speed: Fast Blow
• Class: Class CC Fuse
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse KLKD
• Dimensions: 0.41" Dia x 1.5" L (10.3x38.1mm)
• UNSPSC Code: 39120000
• Application: DC Control circuits, DC photovoltaic systems
• Current Rating: 3 A
• Indicator: Non-indicating
• Manufacturer Part Number: KLM-3
• Primary Type: Single Use Fuses
• Series: KLM Series
• Size: 5AG in
• Termination: Cartridge
• Type: Fuse
• Unit of Measure: EA
• Voltage Rating: 600 V
• AC Voltage Rating: 600 V AC
• Body Material: Melamine
• Compatible Fuse Block Series: BMM; C2617; C5268; CHM; HEB; HPG; HPS
• DC Voltage Rating: 600 V DC
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 100 kA
• Interrupt Rating - DC: 50 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Fast-Acting: Fast-Acting
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121604
• Country of Origin: China
