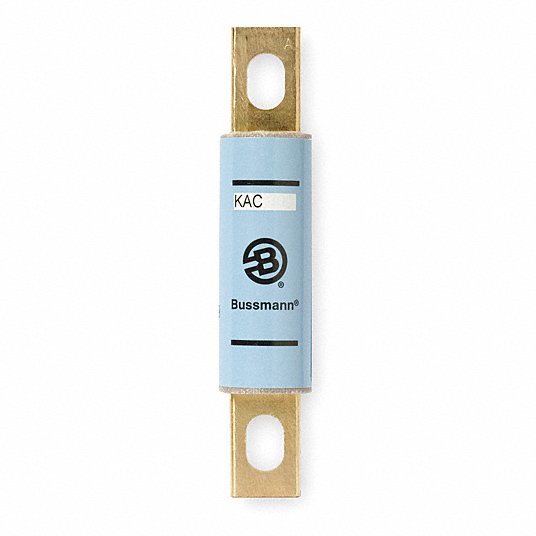

Bussmann KAC-100 Tron KAC High Speed Fuse 100 A

Product Description

The BUSSMANN KAC-100 is a Tron KAC series high-speed fuse. This 100A, 600V AC fuse offers a 200 kAIC interrupt rating and is non-indicating. It provides protection for components like diodes and silicon-controlled rectifiers in industrial and DC traction applications. It has optimized dimensions and materials for thermal dissipation.

• Low arc voltage and low energy let-through
• Excellent DC performance
• Low wattage loss

Product Highlights

The BUSSMANN KAC-100 high-speed fuse provides superior protection for sensitive equipment with fast-acting response and bolt-on installation.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KAC-100
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series Tron KAC high speed fuse
• Catalog Number: KAC-100
• UPC: 051712471008
• Product Length/Depth: 1 in
• Product Height: 5 in
• Product Width: 1 in
• Product Weight: 0.27 lb
• Compliances: CE Marked
• Certifications: UL Recognized
• Product Type: High speed fuse
• Amperage Rating: 100 A
• Interrupt rating: 200 kAIC
• Packaging type: Standard
• Connection: Blade end x blade end
• Fuse indicator: Non Indicating
• Mounting method: Stud
• Ampere: 100 A
• Voltage rating: 600 VAC
• Speed: Fast Blow
• Class: N/A
• Shape: Cartridge Blade Fuses
• Approvals: CE, UL, CSA
• Material: Fiberglass
• Application: Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications
• Terminal Type: Blade End
• Frequency Rating: 40 to 1000
• Type: North American Style Rectifier
• Series: KAC
• AC Voltage Rating: 600 V
• Body Material: Fiberglass
• Compatible Fuse Block Series: 1BS
• Current Rating: 100 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Bolt-On
• Fuse Diameter x Length: 1 in x 5 in
• Interrupt Rating - AC: 200 kA
• Overall Diameter: 1 in
• Overall Length: 5 in
• Standards: CE; UL
• Visual Indication: Non-Indicating
• Country of Origin: Mexico (subject to change)
• Voltage: N/A
• Length: 6.000
• Width: 1.100
• Depth: 1.100
