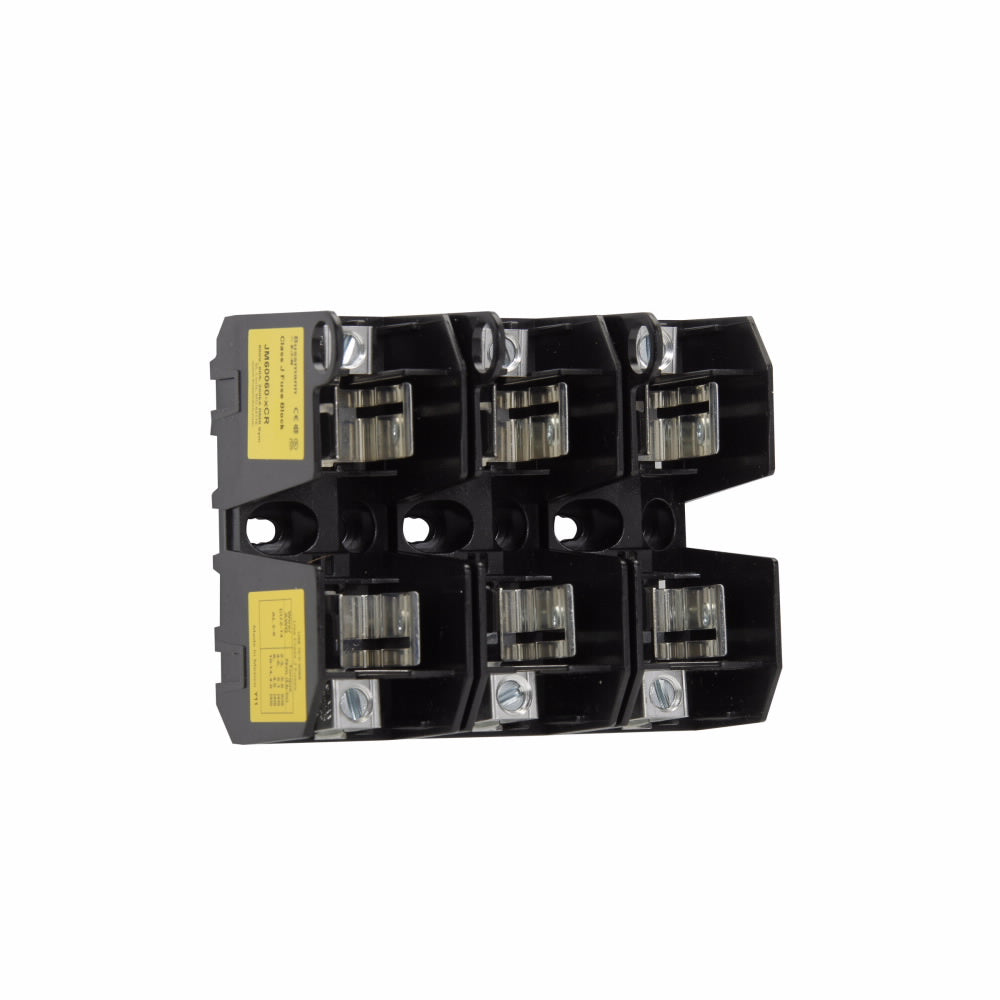

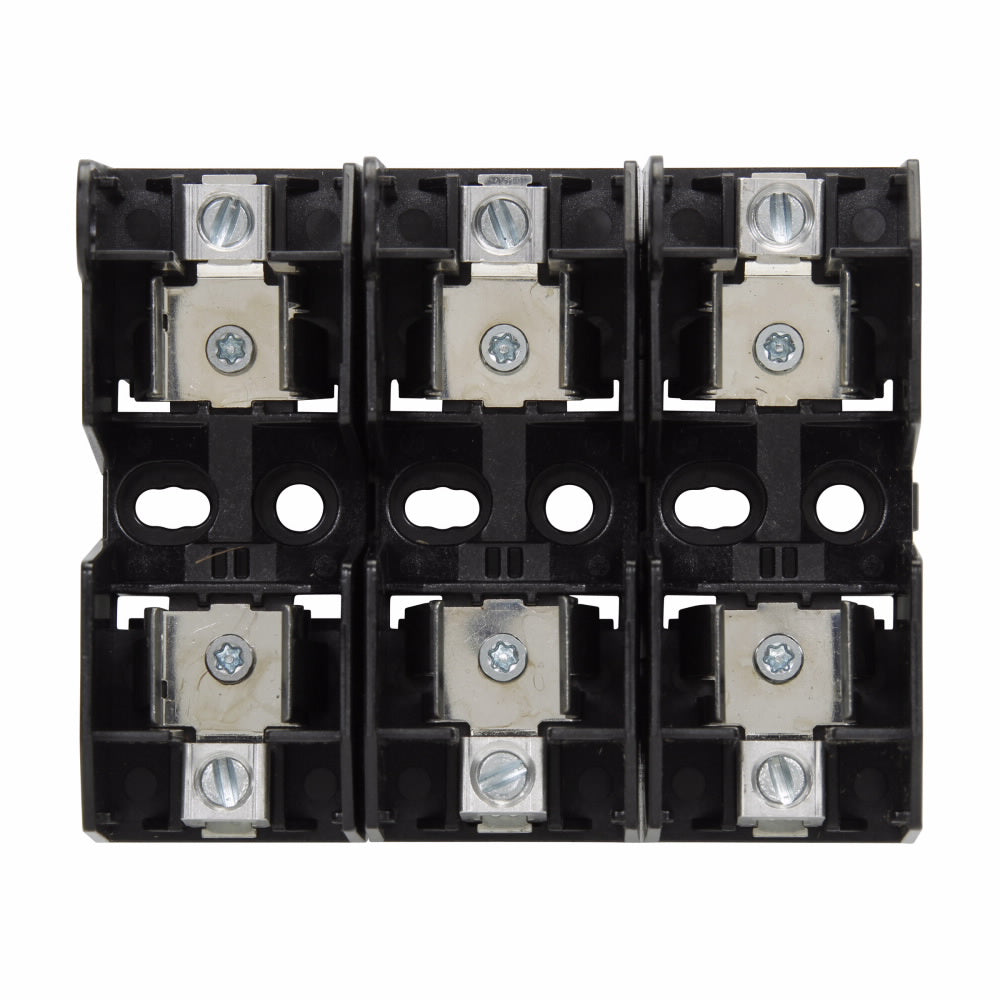

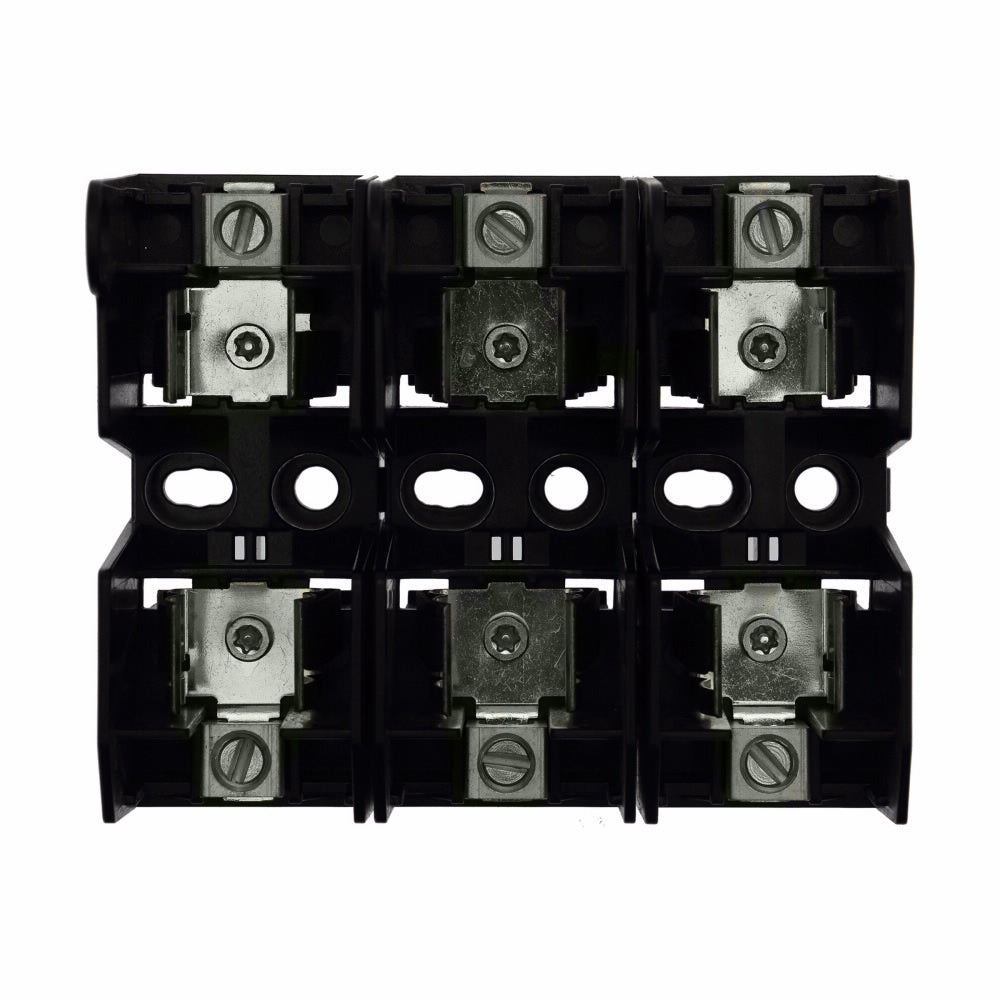

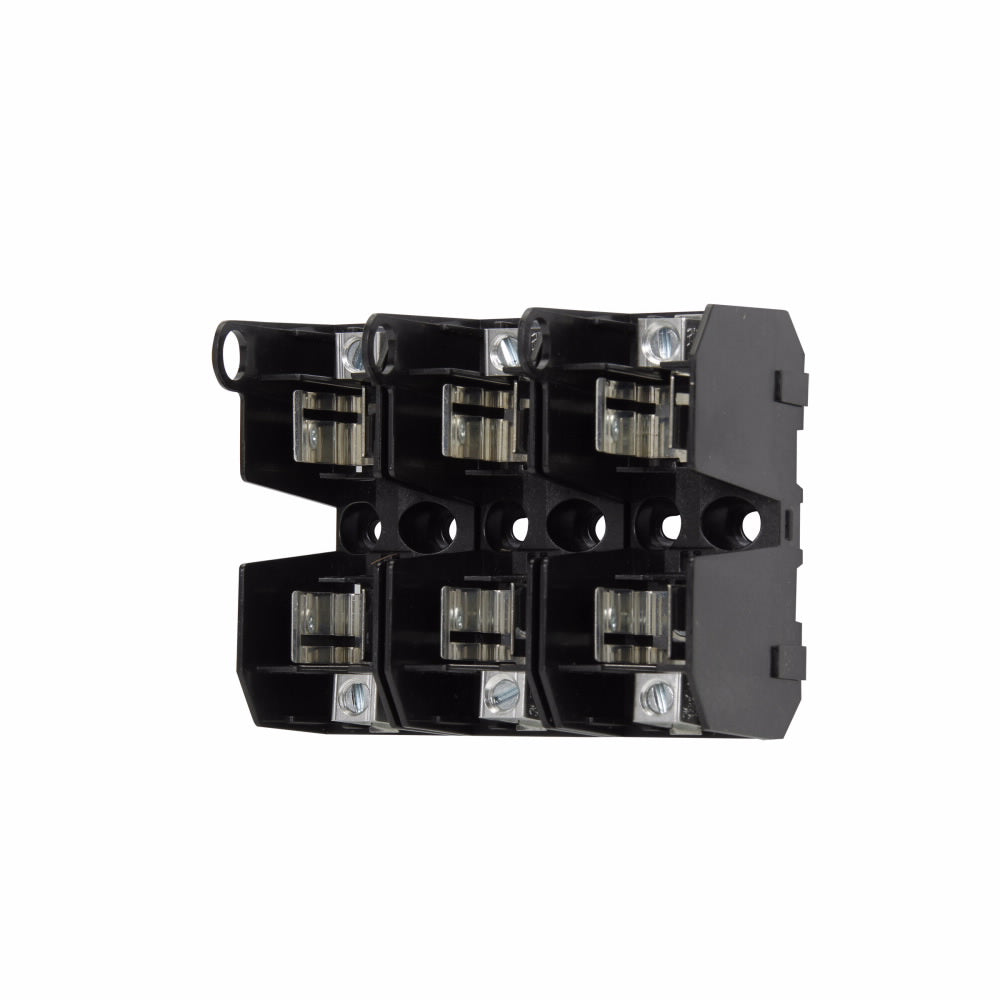

Bussmann JM60060-3CR Modular Fuse Block 600 Volt 60 Amp

Product Description

The Bussmann JM60060-3CR modular fuse block is designed for reliable performance in electrical systems. It supports a current rating of sixty amps and a voltage rating of six hundred volts. This device is compatible with wire sizes from fourteen to two AWG copper and eight to two AWG aluminum, making it versatile for various applications.

• Meets Class J specifications
• Three-pole configuration
• Suitable for DIN rail or panel mounting

Product Highlights

The Bussmann JM Series offers enhanced safety and low environmental impact. With a temperature rating from negative forty to one hundred twenty degrees Celsius, it operates effectively in demanding environments.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Modular
• Voltage Rating: 600 V
• Amperage Rating: 35 to 60 A
• Number of Poles: 3
• Fuse Length: 2.38 in
• Fuse Diameter: 1.06 in
• Dimension: 4.7 in L x 4.5 in W x 2.6 in H
• Temperature Rating: -40 to 120 deg C
• Mounting Type: DIN Rail/Panel
• Material: Thermoplastic
• Suitable For Use With: Low-Peak™ LPJ Series, Limitron™ JKS, DFJ Series Ferrule Fuse
• Connection Type: Box Lug/Slot Screw
