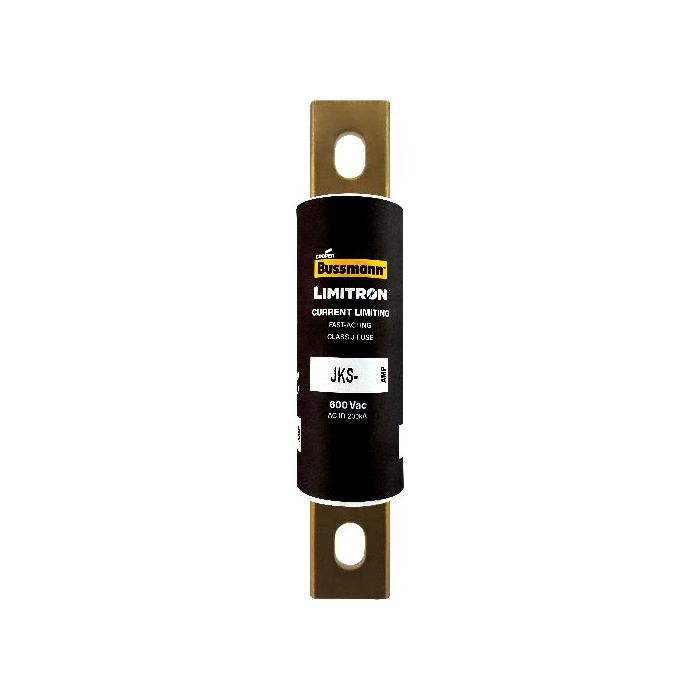

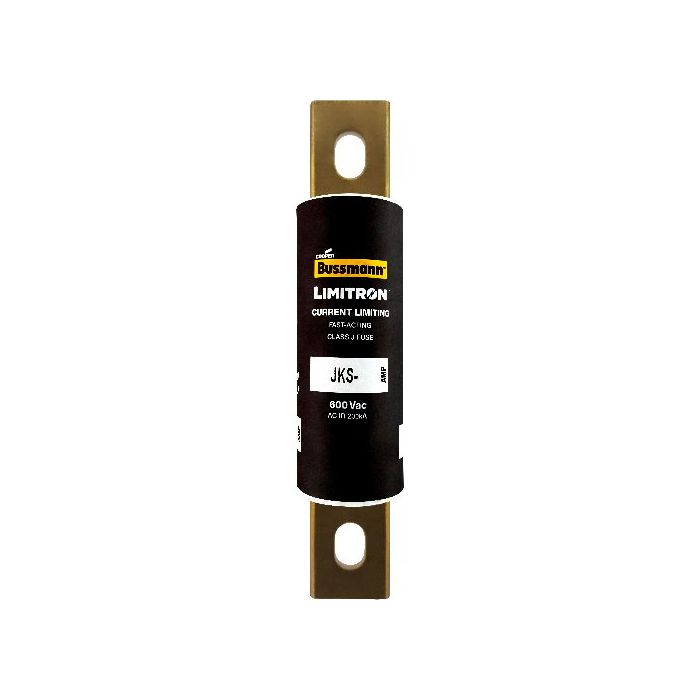

Bussmann JKS-70 fuse 70 amp 600V

Product Description

The BUSSMANN JKS-70 is a 70 Amp, 600V, Class J fuse. This UL Class J fuse is quick-acting and current limiting. Ideal for critical industrial or commercial applications that have specific current limitation requirements. It has an interrupting rating of 200,000 AIC RMS @ 600VAC.

• Quick Acting
• Current Limiting
• Interrupting rating of 200kA at 600Vac

Product Highlights

The BUSSMANN JKS-70 fuse is fast-acting and ideal for industrial or commercial applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JKS-70
• Country of Origin: China

Technical Specifications

• Amps: 70 A
• Voltage rating: 600 V
• Fuse Class: J
• UL Listed: Std. 248-8, Class J, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.8, Class 1422-02, File 53787
• Interrupting Rating: 200 kA
• Product Length/Depth: 4.63 in
• Product Height: 1.13 in
• Product Width: 1.13 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Number of elements: 1
• Packaging type: Standard
• Connection: Bolted blade end x bolted blade end
• Fuse indicator: Non-indicating
• Special features: Non-indicating
• Speed: Fast-Acting
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Substitute parts: Littelfuse JLS, Mersen A4J
• AC Voltage Rating: 600 V
• Body Material: Melamine
• Compatible Fuse Block Series: JM600
• Current Rating: 70 A
• Element: Single
• Fuse Block Style: Non-Rejection
• Fuse Body Style: Bolt-On
• Fuse Class or Type: J
• Interrupt Rating - AC: 200 kA
• Overall Diameter: 1-1/8 in
• Overall Length: 4-5/8 in
• Standards: CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
• Visual Indication: Non-Indicating
• UNSPSC: 39121606
• Material: Melamine
• Specification Met: UL
• Mounting Type: Holder
