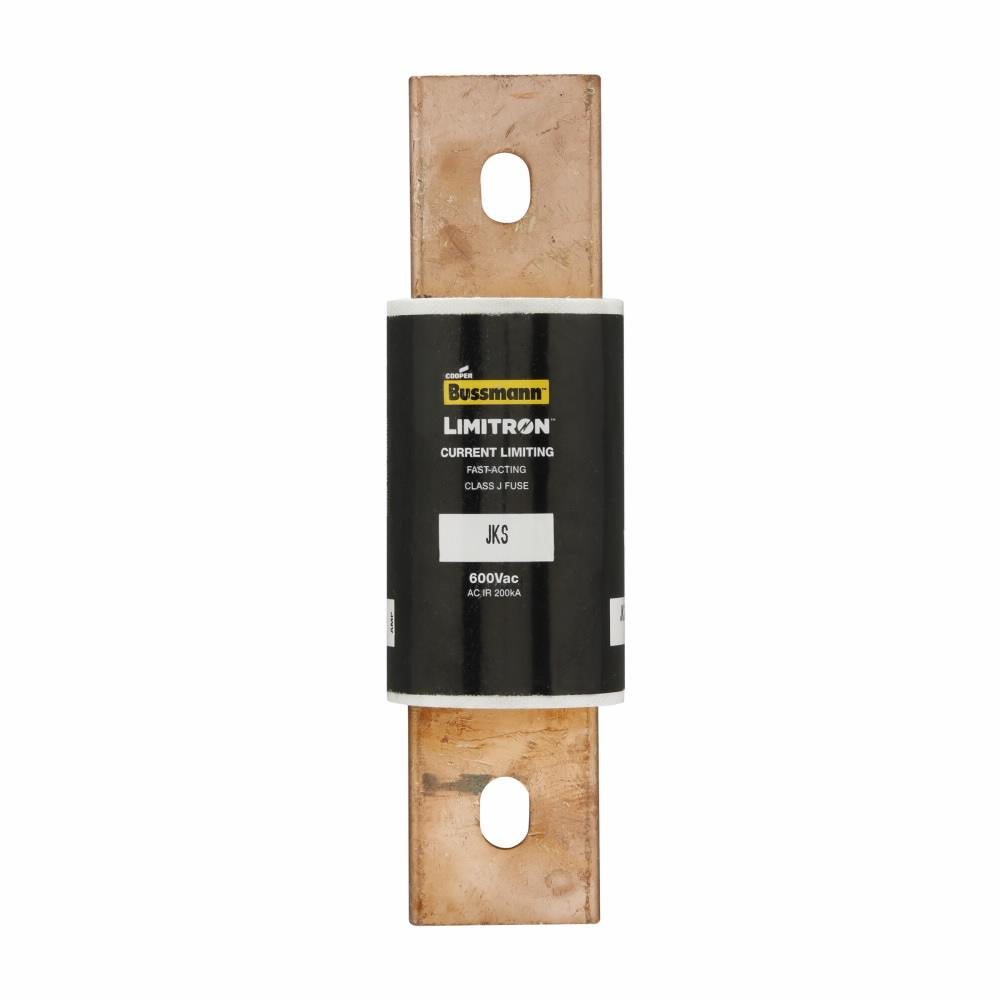

Bussmann JKS-350 Series JKS-350 Class J Limitron Fast Acting Fuse 350 A

Product Description

The Bussmann JKS-350 is a Class J Limitron fast-acting fuse. This 350A fuse is suitable for power panelboards and machinery disconnects. It features a bolted blade end x bolted blade end connection and a 200 kAIC interrupt rating at 600 Vac. The JKS-350 is CE, CSA, and UL 248-8 compliant.

• Fast Acting
• Current Limiting
• Suitable for power panelboards and machinery disconnects

Product Highlights

The Bussmann JKS-350 is a fast-acting, current-limiting fuse with a 200 kAIC interrupt rating at 600 Vac.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JKS-350

Technical Specifications

• Catalog Number: JKS-350
• Type: Current Limiting,Fast Acting
• Brand: Bussmann
• Class: J
• Width: 2 in
• Height: 2 Inch
• Length: 7.13 Inch
• Element: Single
• Voltage: 600 Volt
• Amperage: 350 Amp
• Diameter: 2 Inch
• End Type: Blade,Bolted
• Standard: CE,CSA,UL 248-8
• Sub Brand: Limitron
• Applications: Power Panelboards, Machinery Disconnects
• Interrupt Rating: 200 kAIC
• Material: Melamine
• Mounting Type: Holder
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Series: JKS
• Terminal Type: Bolted Blade End
• Body Type: Cartridge
