Bussmann JJS-6 Fuse 6 A replacement mpn

Product Description

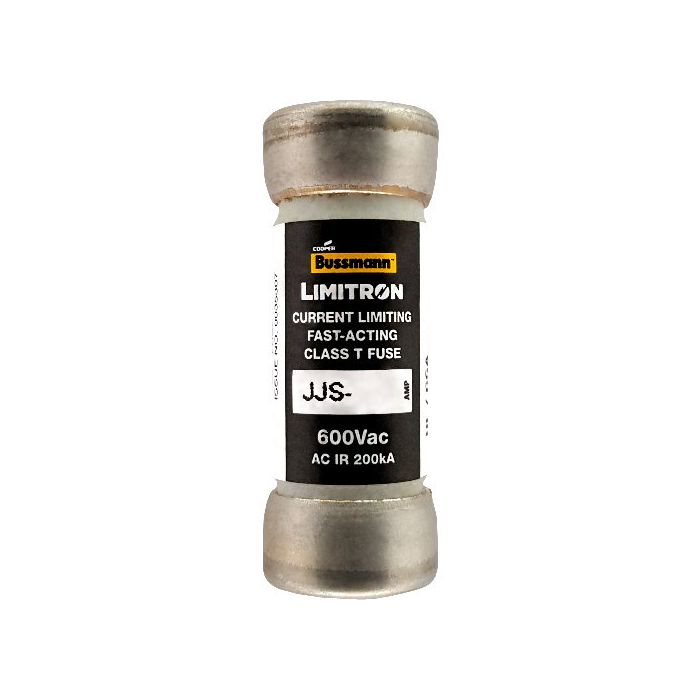

The BUSSMANN JJS-6 is a 6A, 600V AC, UL Class T fuse with very fast acting speed and current limiting. Ideal for critical industrial or commercial applications with specific current limitation requirements. It provides 10X better current limitation to help prevent equipment damage caused by short-circuit events.

• 6 Amps
• 600 Volts AC
• UL Class T Fuse

Product Highlights

The BUSSMANN JJS-6 fuse is ideal for critical industrial or commercial applications. It has a very fast acting speed and current limiting.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JJS-6

Technical Specifications

• Amps: 6
• Voltage: 600
• Fuse Class: T
• Acting Speed: Very Fast Acting
• Current Limiting: Yes
• Physical Size: 0.56" x 1.5"
• AC Voltage Rating: 600
• Interrupting Rating: 200,000 AIC RMS @ 600VAC
• UL Listed: Std. 248-15, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.15, Class 1422-02, File 53787
• Ampere: 6 A
• Voltage rating: 600 VAC
• Interrupt rating: 200 kA
• Speed: Very Fast Acting sec
• Class: Class T Fuse
• Shape: RECTANGULAR
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse JLLS, Mersen A6T
• Application: Large apartment complexes, multi-family meter stacks, VFD line protection
• Body Material: Melamine
• Brand: Bussmann by Eaton
• Current Rating: 6 A
• Current, Ratings: 6 A
• Diameter: 0.56 0.04 in
• For Use With: Fuses
• Indicator: Non-indicating
• Length Tolerance: +/-0.04"
• Manufacturer Part Number: JJS-6
• Mounting Type: Stud
• Primary Type: Single Use Fuses
• Series: JJS Series
• Special Features: Small Footprint
• Termination: Cartridge
• Type: Fuse
• Voltage Rating: 600 V
• Material: Melamine
• Terminal Type: Ferrule
