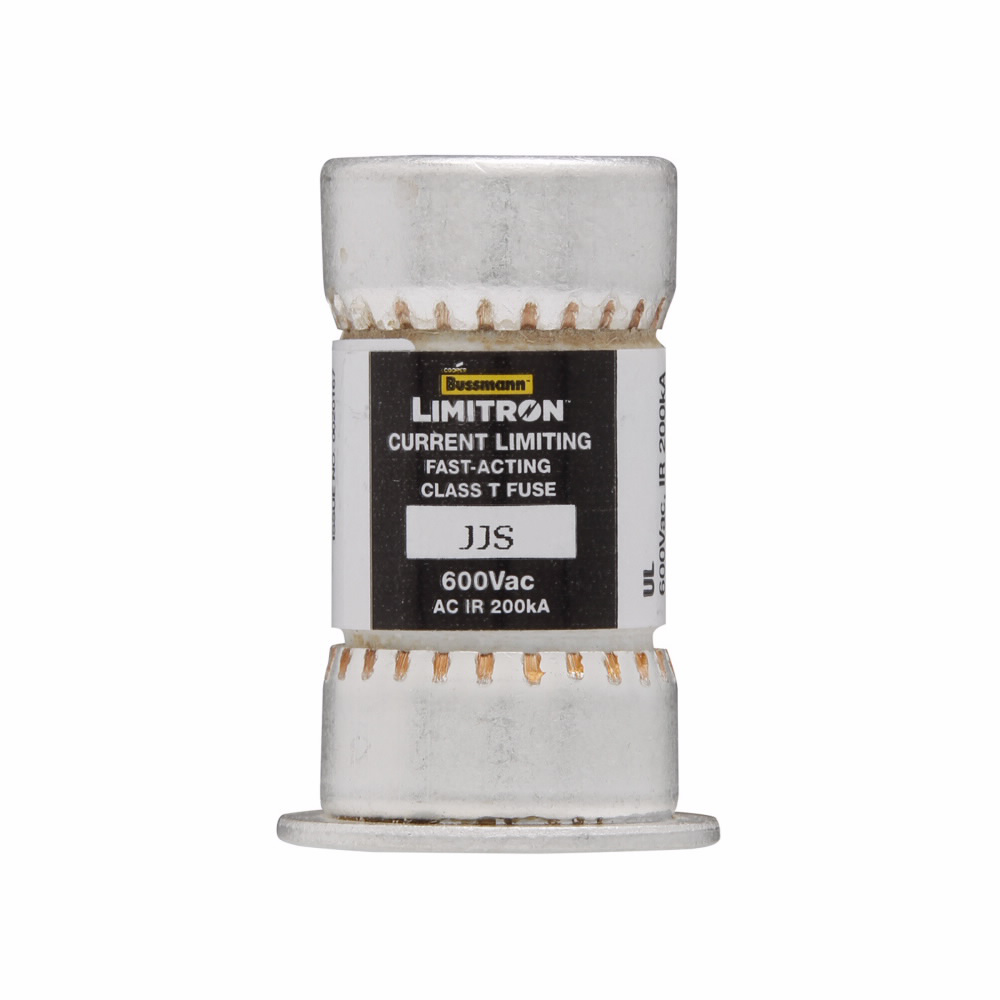

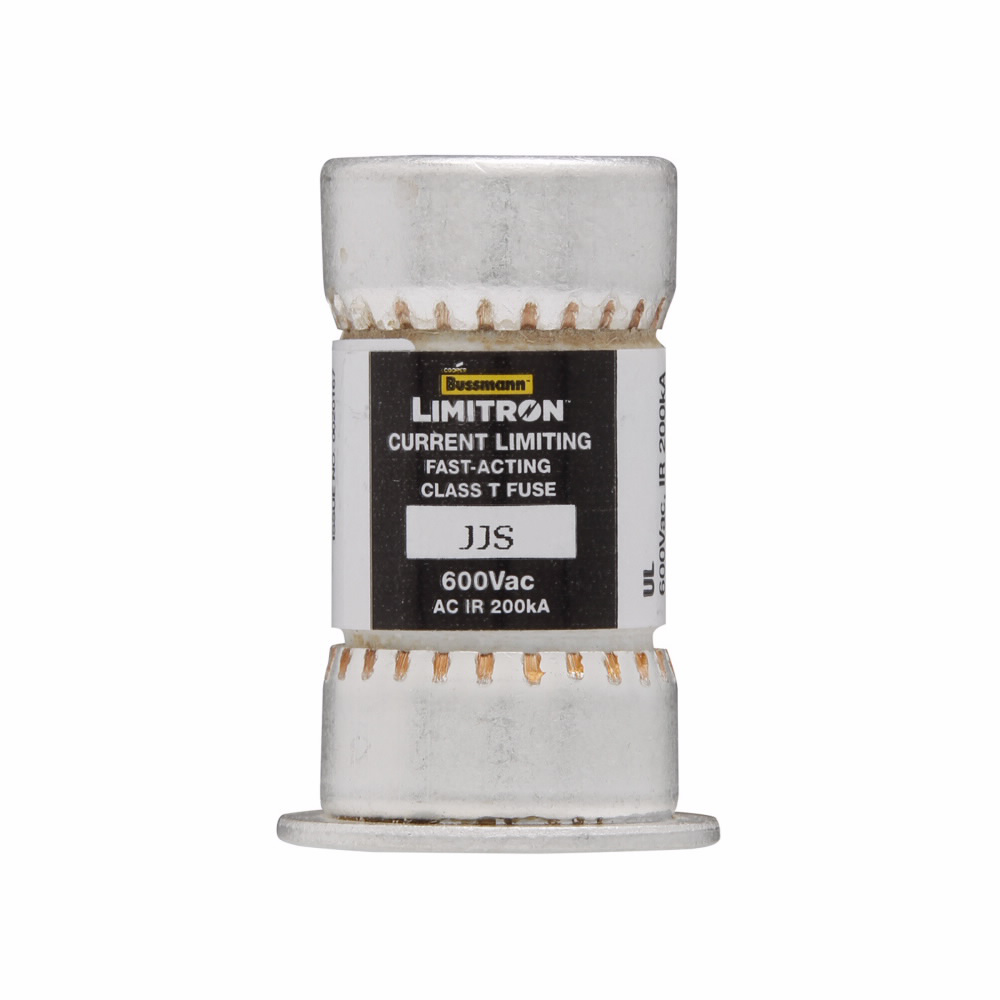

Bussmann JJS-50 Very Fast-Acting Current-Limiting Class-T Fuse 600V 50Amp

Product Description

The Bussmann JJS-50 is a very fast-acting current-limiting fuse designed for maximum protection in electrical systems. This 600 volt fuse with a 50 amp rating is suitable for various applications, including large apartment complexes and multi-family meter stacks. Its reliable performance is essential for protecting variable frequency drives (VFD) and other sensitive equipment.

• Type: Current Limiting, Very Fast Acting
• Voltage Rating: 600 Volts
• Amperage Rating: 50 Amps

Product Highlights

The Bussmann JJS-50 Class T fuse ensures high safety standards and compliance with CE and CSA regulations. It features a small footprint and a ferrule end connection for easy installation.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Diameter: 1 inch
• Length: 1.56 inches
• Height: 0.81 inches
• Weight: 0.5 lb
• End Type: Ferrule
• Interrupt Rating: 200 kAIC
• Applications: Large apartment complexes, multi-family meter stacks, VFD line protection
• UPC: 05171262850
