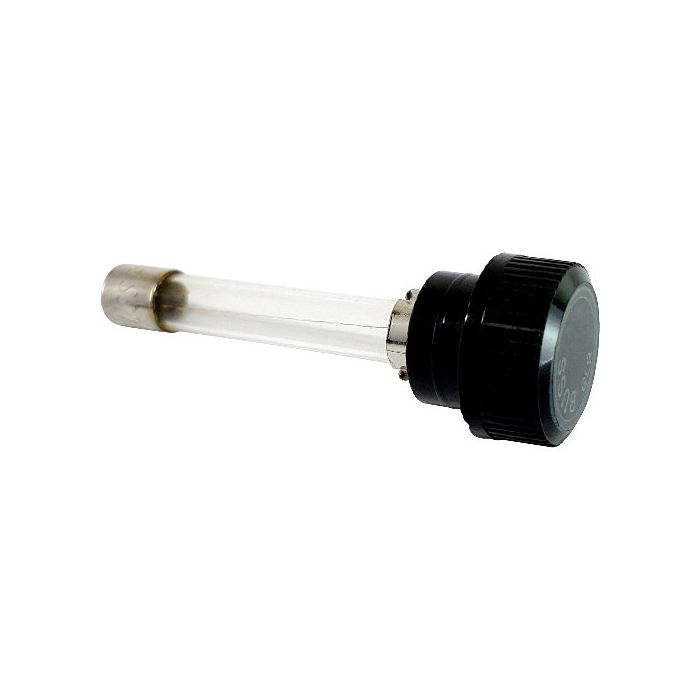

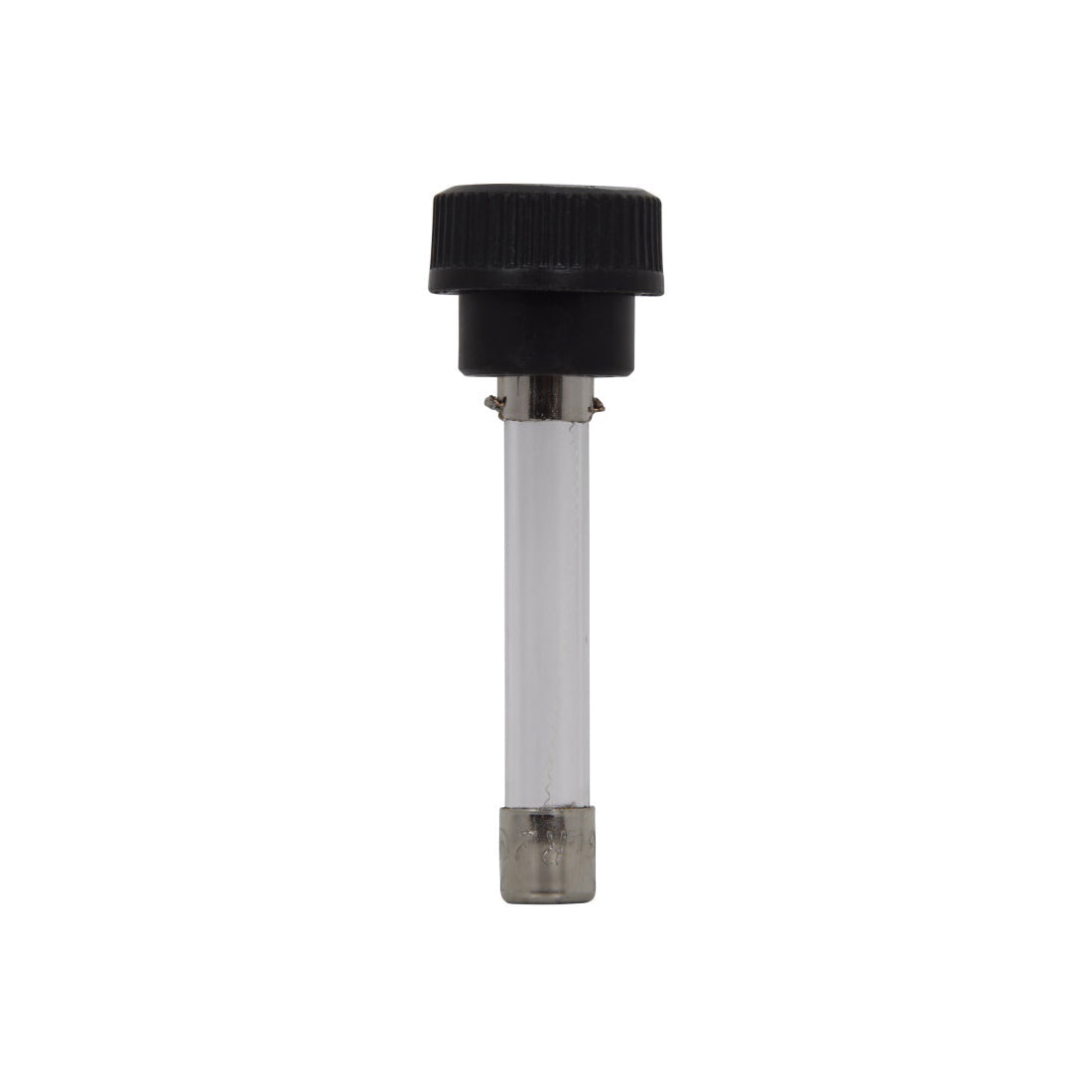

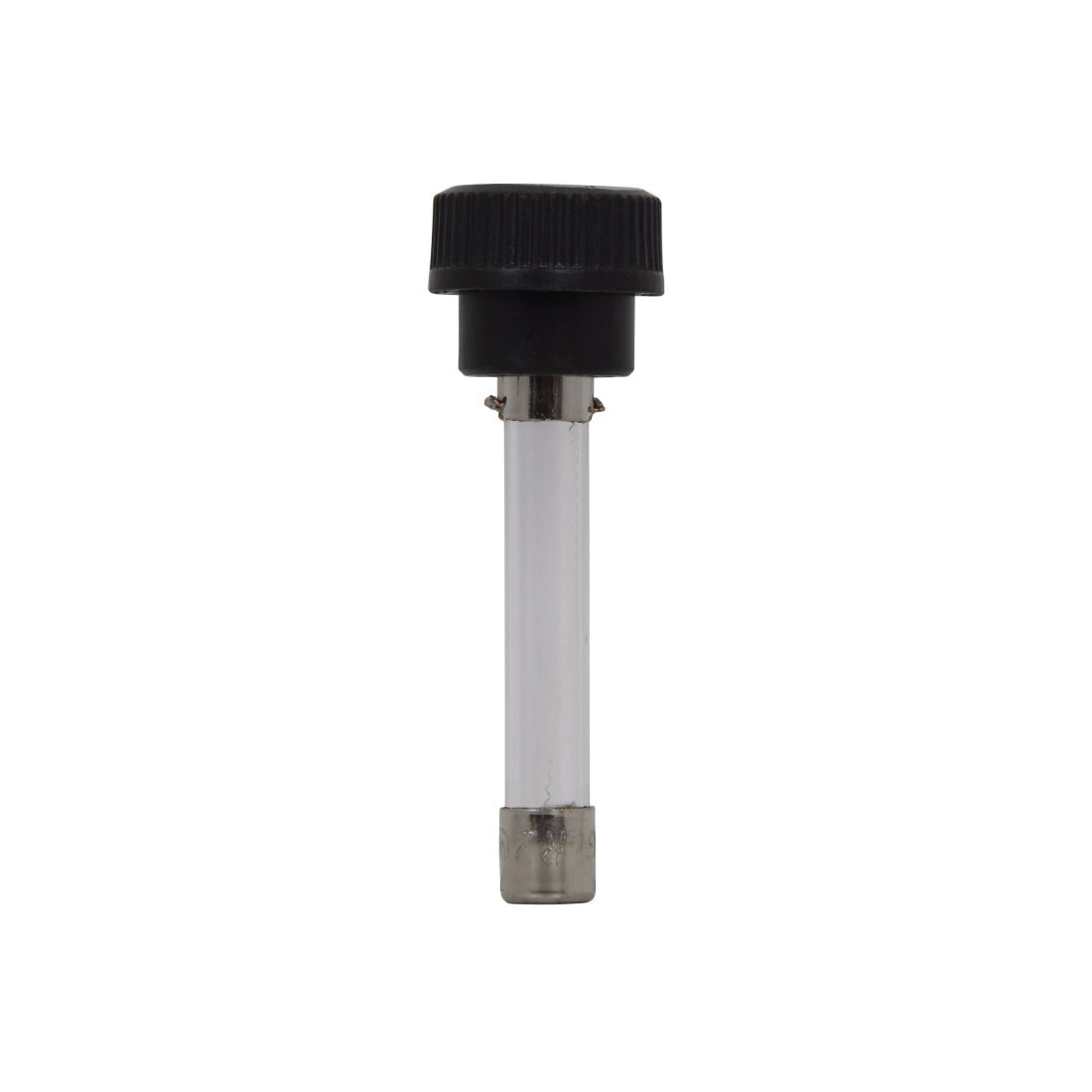

Bussmann GLR-1 Small Dimension Fuse 1 Amp

Product Description

The BUSSMANN GLR-1 is a small dimension fuse designed for overcurrent protection. This 1 amp, 300 volt fuse is fast-acting and ideal for in-line lighting ballast protection. It features a glass tube construction and a 10kA interrupt rating. Commonly used in industrial, commercial, and automotive applications.

• 1 Amp 300V, Fast Acting Fuse
• Interrupt Rating 10 kAIC
• Applications: In-Line Lighting Ballast Protection

Product Highlights

The BUSSMANN GLR-1 fuse provides reliable overcurrent protection in a compact size.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GLR-1

Technical Specifications

• Amperage: 1 Amp
• Applications: In-Line Lighting Ballast Protection
• Interrupt Rating: 10 kAIC
• Standard: CE,CSA C22.2,UL 248-14
• Type: Fast Acting; Non-Rejecting; Low Voltage
• Voltage: 300 Volt
• Brand: Bussmann
• Class: Supplemental
• Diameter: 0.72 Inch
• Length: 2.25 Inch
• Voltage Rating: 300 VAC
• Amperage Rating: 1 A
• Material: Copper
• Maximum Current: 1 Amps
• Current Rating: 1 Amps
• AC Voltage Rating: 300
• Interrupting Rating: 10,000 AIC
• Ampere: 1 A
• Voltage rating: 300 VAC
• Interrupt rating: 10 kA
• Speed: Fast Blow
• Shape: In Line Fuses
• Approvals: UL, CSA
• Substitute parts: Mersen SLR
