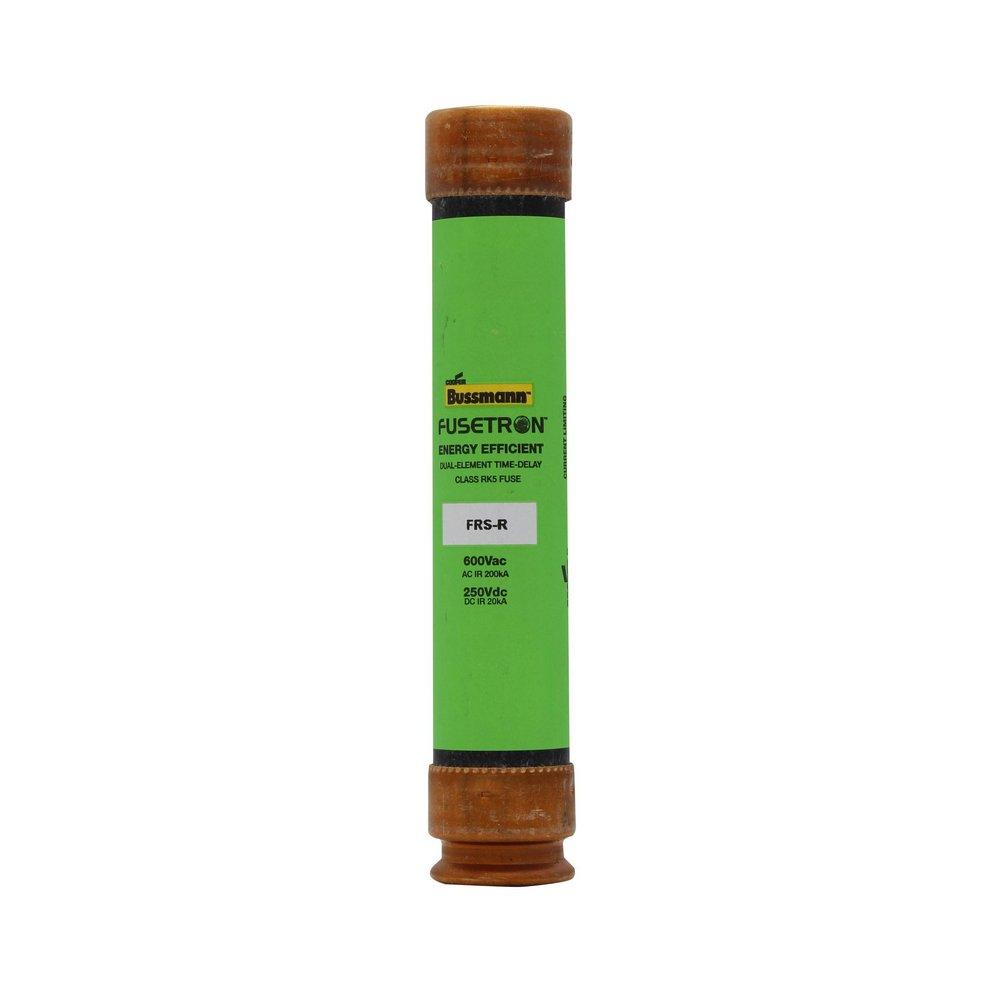

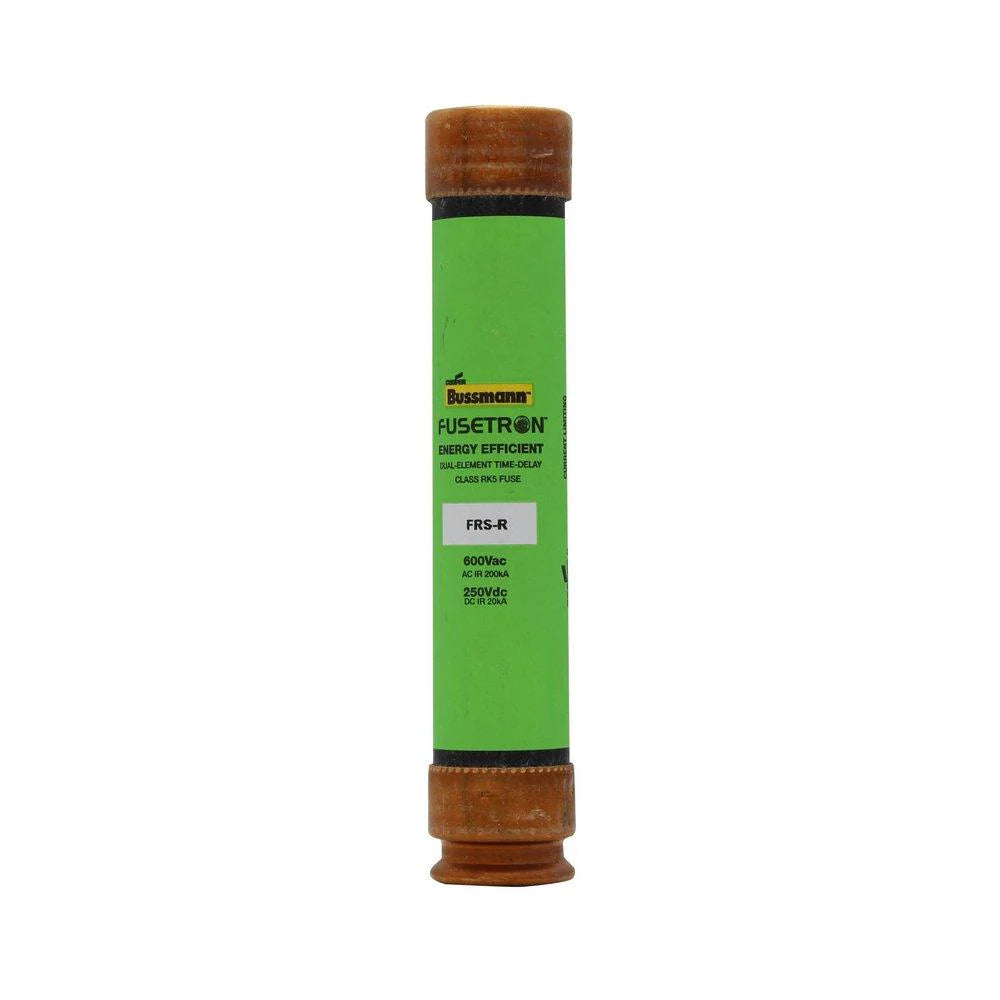

Bussmann FRS-R-60 FUSE DLY TIME 60A 600 VAC/250 VDC RK5

Product Description

The Bussmann FRS-R-60 is a current limiting time delay fuse designed to withstand overloads without failing. This fuse operates at sixty amps and supports voltage ratings of six hundred volts alternating current or two hundred fifty volts direct current. Its dual-element design allows it to effectively handle temporary motor overloads and surge currents, protecting downstream components.

• Current limiting for component protection
• Time delay of up to ten seconds at five times the rated current
• Compatibility with RK5 class applications

Product Highlights

This fuse provides excellent overload protection, suitable for circuits subject to inrush currents. The design allows for use in smaller, less costly switches while maintaining high safety standards.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part No: FRS-R-60

Technical Specifications

• Type: Current Limiting
• Class: RK5
• Amperage Rating: 60 A
• Voltage Rating: 600 VAC/250 VDC
• Interrupt Rating: 20/200 kA
• Body Size: 1.06 in Diameter x 5.5 in Length
• Element: Dual
• Material: Fiberglass
• Terminal Type: Ferrule
• Response Time: 10 s at 500%
