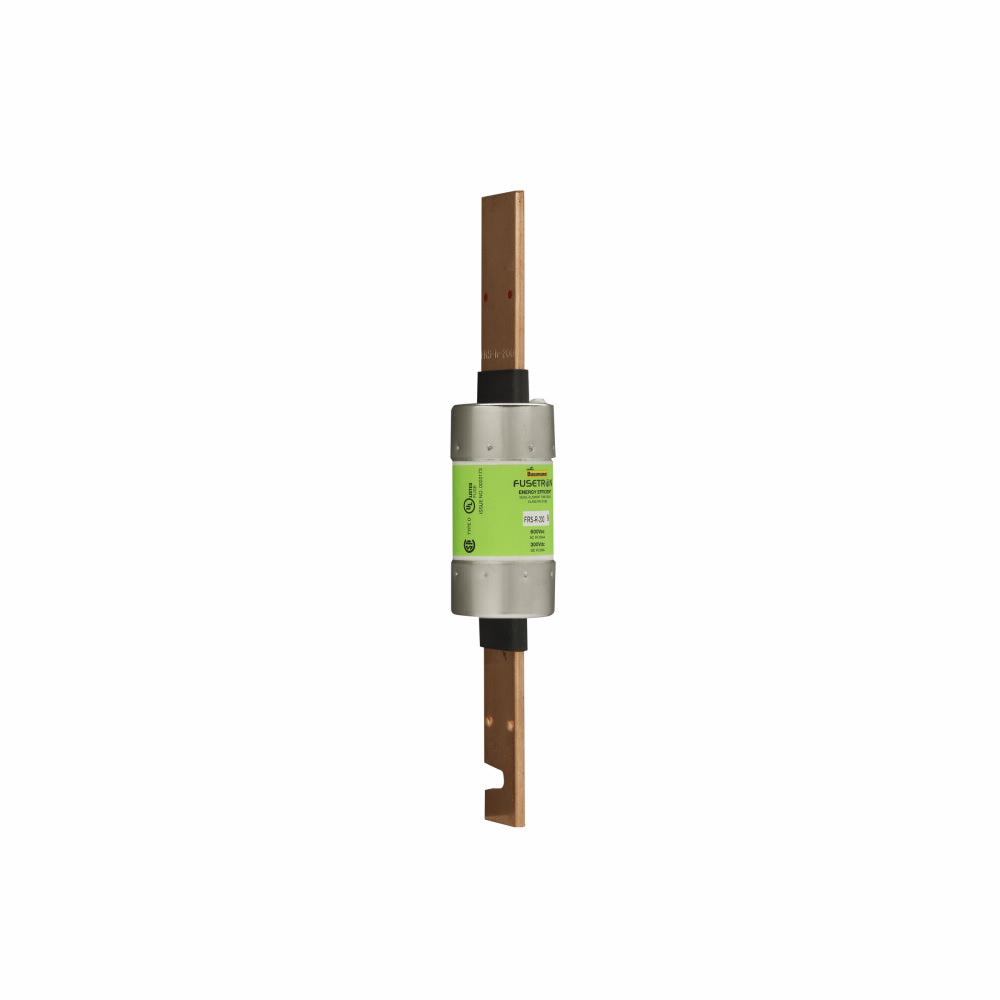

Bussmann FRS-R-175 FRS-R175 600V RK5 TD FS

Product Description

The Bussmann FRS-R-175 is a Class RK5 time-delay, dual-element fuse. It has a current rating of one hundred seventy-five amperes and a voltage rating of six hundred volts AC and three hundred volts DC. This fuse is designed to protect circuits by limiting fault currents effectively. It features non-indicating capabilities, ensuring reliable performance without unnecessary alerts.

• Rated for 175A and 600Vac, 300Vdc
• Dual-element design for optimal time delay performance
• Interrupt rating of 200kA at 600Vac

Product Highlights

This fuse is essential in various applications, including power panelboards, motor control centers, and machinery disconnects. It offers reliable motor overload, ground fault, and short-circuit protection.

Product Information

Standard Information

• Manufacturer: Bussmann
• Family Group: Fuses/Accessories

Technical Specifications

• Type: Fuse
• Class: Class RK5
• Dimensions: 9.63 inches length x 1.61 inches diameter
• Element: Dual
• Response Time: 10 sec at 500%
• Mounting: Stud
• Construction: Fiberglass
• UPC: 05171250847
