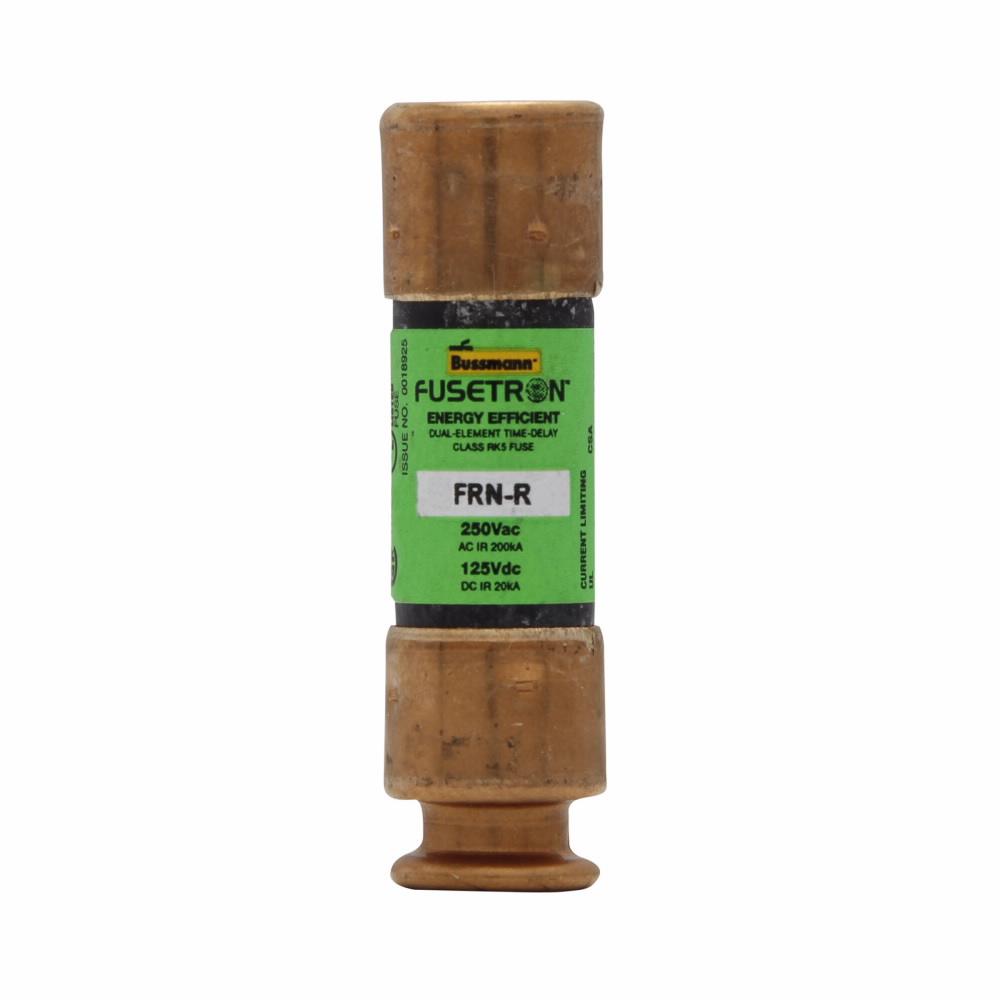

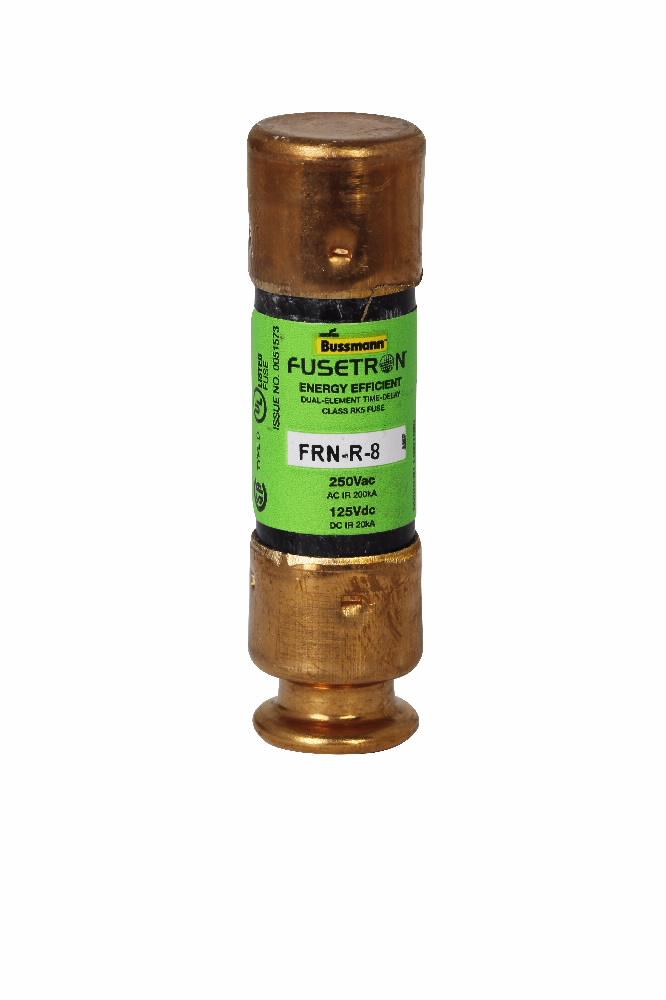

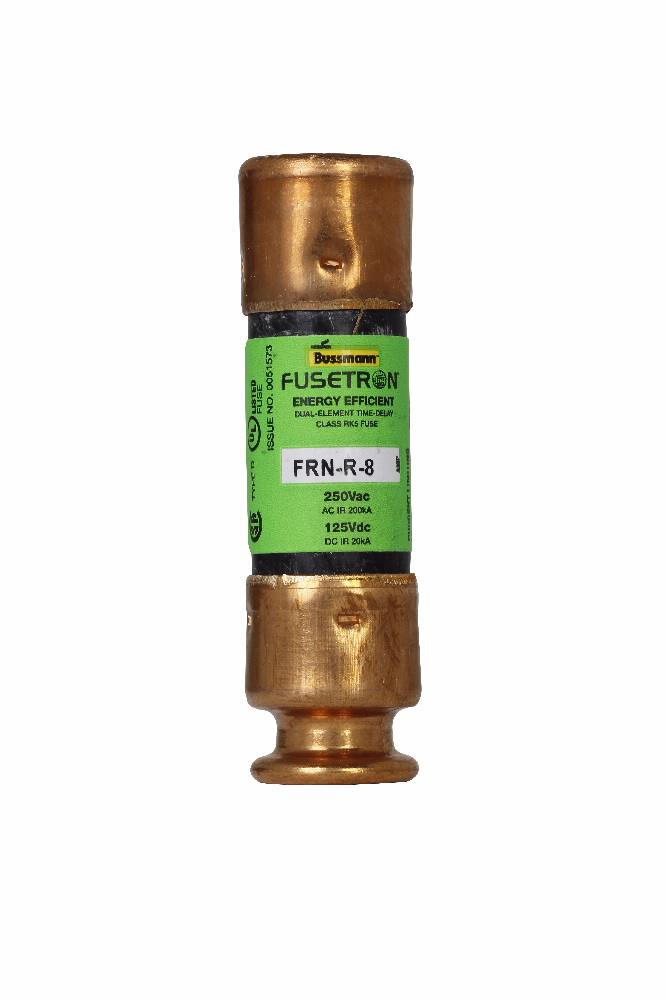

Bussmann FRN-R-8 Fusetron Time Delay Fuse 8 A (Each) Replacement MPN FRN-R-8

Product Description

Bussmann FRN-R-8 is a current limiting, time delay fuse designed for electrical applications. This fuse is suitable for use in circuits requiring reliable protection against overloads and short circuits. It operates at a rating of eight amperes and is suitable for both 250 VAC and 125 VDC systems.

• Current limiting and dual element design
• Time delay feature for surge protection
• Cylindrical body type for easy installation

Product Highlights

This fuse features low-level overload protection and operates with a response time of ten seconds at five hundred percent of the rated current. It is designed to provide high performance by protecting against damage from temporary overloads.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Body Size: 0.56 inches Diameter x 2 inches Length
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Fiberglass
• Mounting Type: Holder
• Response Time: 10 seconds at 500%
• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 8 A
• Interrupt Rating: 20/200 kA
• Class: RK5
• Body Type: Cylindrical
