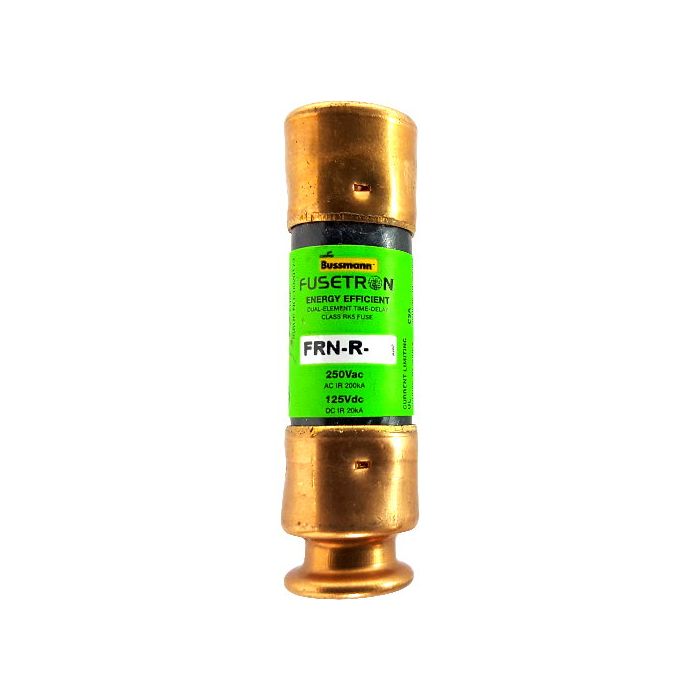

Bussmann FRN-R-5-6/10 Fuse 5.60A

Product Description

The Eaton Bussmann Series FRN-R fuse, manufactured by BUSSMANN with MPN FRN-R-5-6/10, is a Class RK5, time-delay, dual-element, current limiting fuse. This non-indicating fuse has an interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc. It is suitable for motor protection, guarding against overloads and single-phasing.

• Dual Element
• Time Delay
• Provides motor overload, ground fault and short-circuit protection

Product Highlights

The Bussmann FRN-R fuse is ideal for motor protection, preventing burnout from overloads and single phasing, with a time-delay feature for motor startup and fast short-circuit response.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FRN-R-5-6/10

Technical Specifications

• Product Name: Eaton Bussmann series FRN-R fuse
• Catalog Number: FRN-R-5-6/10
• UPC: 051712507233
• EAN: 5027590426312
• Product Length/Depth: 0.56 in
• Product Height: 2 in
• Product Width: 0.56 in
• Product Type: Fuse
• Amperage Rating: 5.60A
• Interrupt rating: 200 kAIC at 250 Vac 20 kAIC at 125 Vdc
• Response time: 8 sec at 500%
• Voltage rating: 250 Vac, 125 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Class: Class RK5
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• AC Voltage Rating: 250
• DC Voltage Rating: 125
• Physical Size: 0.56" x 2"
• Brand: BUSSMANN
• MPN: FRN-R 5-6/10
• Category: Business & Industrial
• Material: Fiberglass
• Current Rating: 5 Amps
• Material Type: Fiberglass
• Specification Met: Csa,iec,iso,nema
