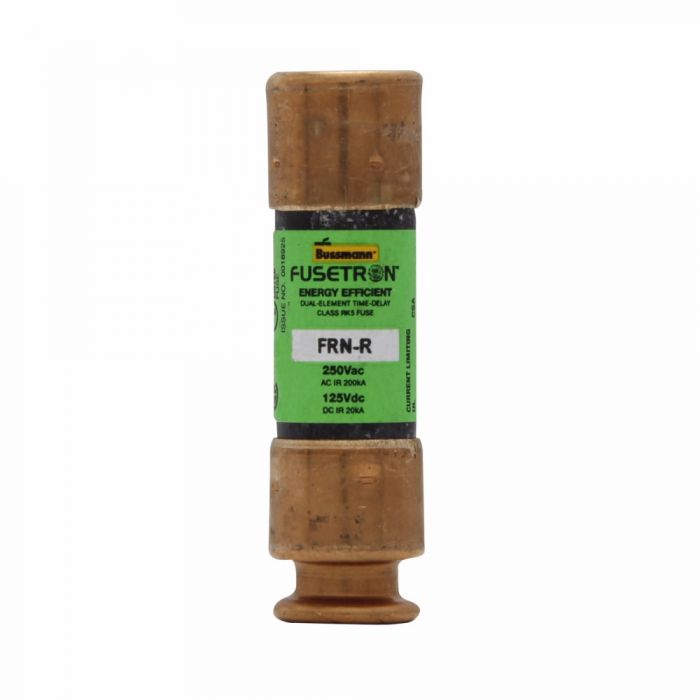

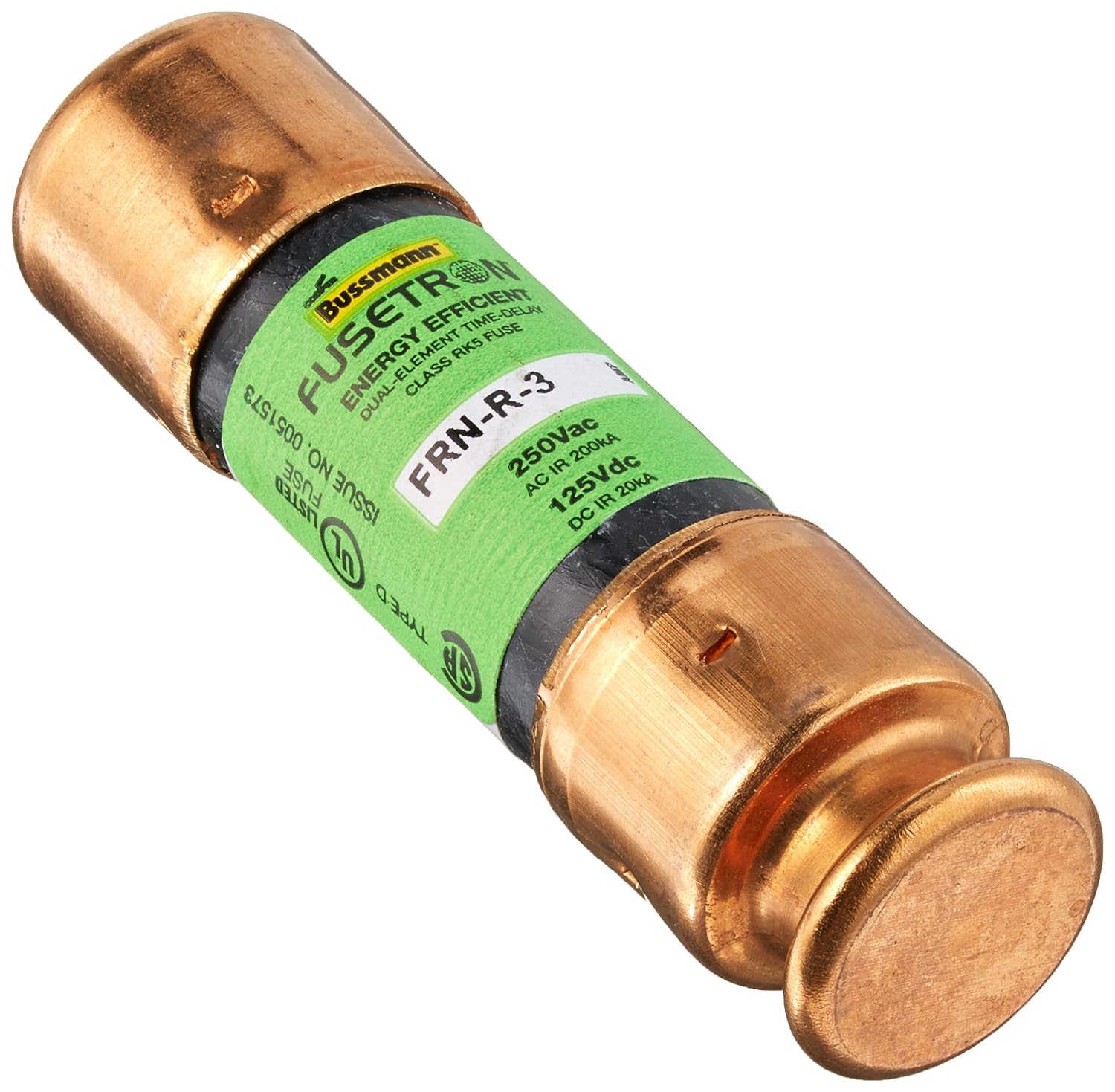

Bussmann FRN-R-3 Fusetron Dual-Element Class RK5

Product Description

The Bussmann FRN-R-3 Fusetron is a dual-element fuse designed for current limiting and time delay applications. This fuse operates at three amperes with voltage ratings of two hundred fifty VAC and one hundred twenty-five VDC. It is recognized in the RK5 class for its high performance and reliability.

• Provides overload, ground fault, and short circuit protection
• Dual element design suited for motor-related applications
• Response time of ten seconds at five hundred percent rated current

Product Highlights

This fuse helps protect motors against damage caused by overload and phase loss. It is ideal for use in circuits that experience temporary current spikes.

Product Information

Standard Information

• Brand: Bussmann
• Type: Current Limiting

Technical Specifications

• MPN: FRN-R-3
• Amperage Rating: 3 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 20/200 kA
• Body Size: 0.56 in Dia x 2 in L
• Body Type: Cylindrical
• Element: Dual
• Terminal Type: Ferrule
• Response Time: 10 s at 500%
