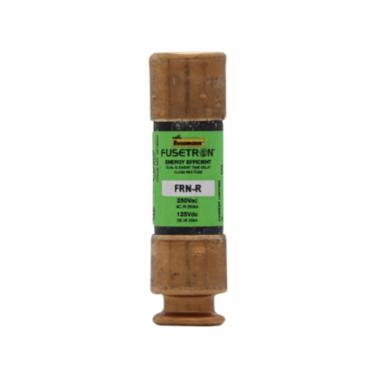

Bussmann FRN-R-2-1/2 250V RK5 TD FS

Product Description

The Bussmann FRN-R-2-1/2 is a Class RK5 time-delay fuse designed for reliable overcurrent protection. This fuse features dual-element construction for enhanced current limiting capabilities. Rated for up to 2.5 amperes, it is suitable for use in various applications including safety and security systems in industrial settings.

• Class RK5 time-delay fuse
• Rated for 250 Vac and 125 Vdc
• Interrupting rating of 200 kA at 250 Vac

Product Highlights

This fuse offers high performance and safety for electrical systems that require effective current interruption.

Product Information

Standard Information

• Brand: Bussmann

Technical Specifications

• Type: Fuse
• Amperage Rating: 2.5 A
• Voltage Rating: 250 Vac; 125 Vdc
• Interrupt Rating: 200 kA at 250 Vac; 20 kA at 125 Vdc
• Response Time: 10 S at 500%
• Application: Industrial Facilities - Safety and Security Systems
• Dimensions: 0.56 in Diameter x 2.00 in Length
• Connection: Ferrule end x ferrule end
