Bussmann FNQ-R-3 600V MDGT TD FS

Product Description

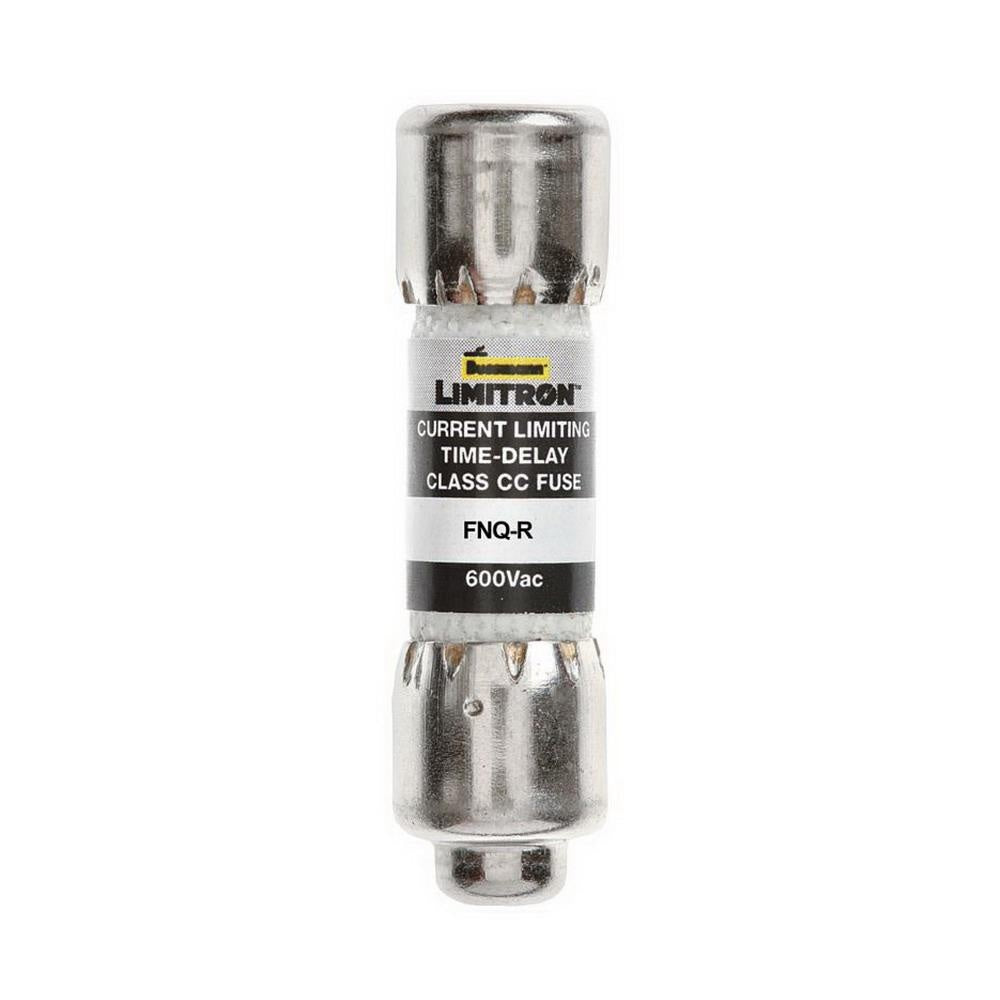

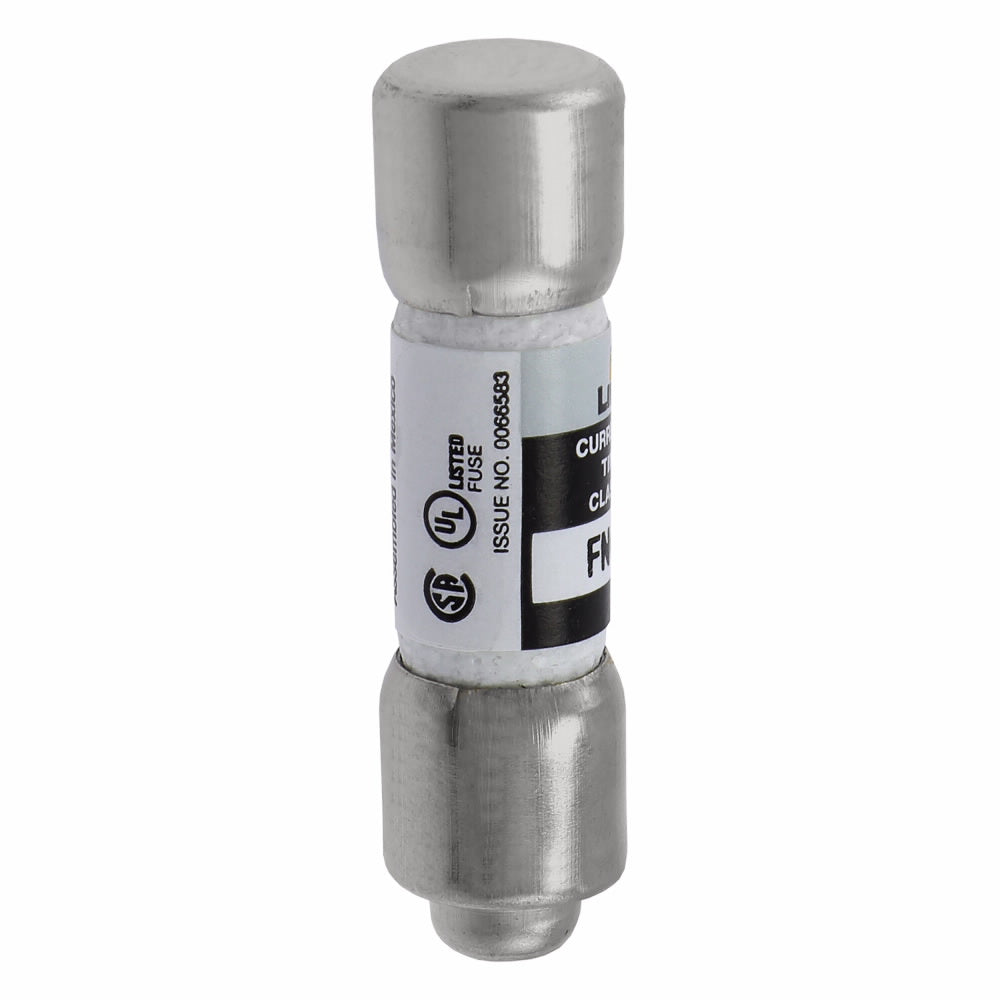

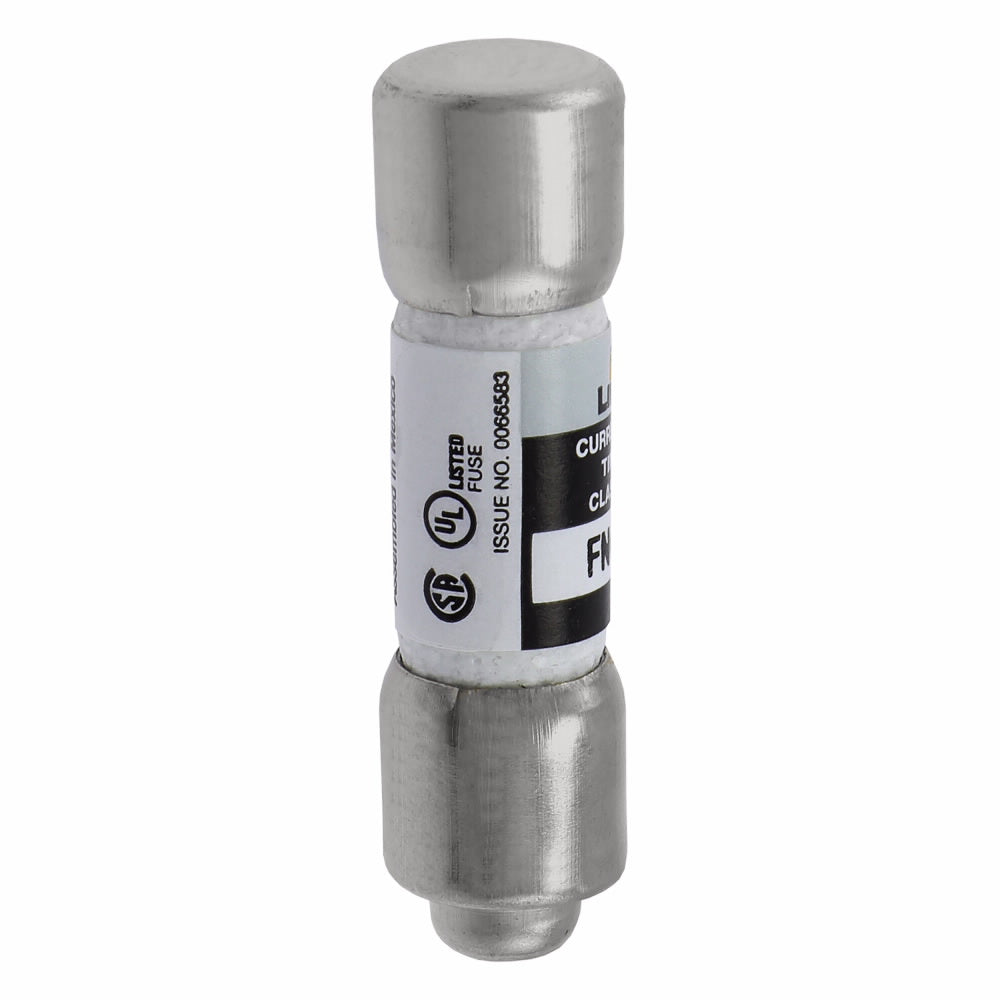

Bussmann FNQ-R-3 is a Class CC fuse rated for three Amps and 600 Volts AC. It features a time-delay function and a dual-element design for improved performance. This cylindrical fuse has a ferrule terminal connection and is made from melamine, enhancing its durability in various applications.

• Rated for 3 Amps and 600 Volts AC
• Interrupt rating of 200 Kilo-Amps at 600 Volts
• Ideal for branch circuits and small control transformers

Product Highlights

This fuse provides superior current limitation, protecting equipment from damage caused by short circuits. Its clip mountable design allows for easy installation in safety systems within industrial settings.

Product Information

Standard Information

• Manufacturer: Bussmann
• Family Group: Fuses/Accessories

Technical Specifications

• Type: Rejection
• Voltage Rating: 600 Volts AC
• Amperage Rating: 3 Amps
• Interrupt Rating: 200 Kilo-Amps
• Dimensions: 0.41 inches diameter x 1.5 inches length
• Construction: Melamine body
• Compliance: UL Listed, CE Marked, RoHS Compliant
• Application: Branch circuits, line protection, control transformers
