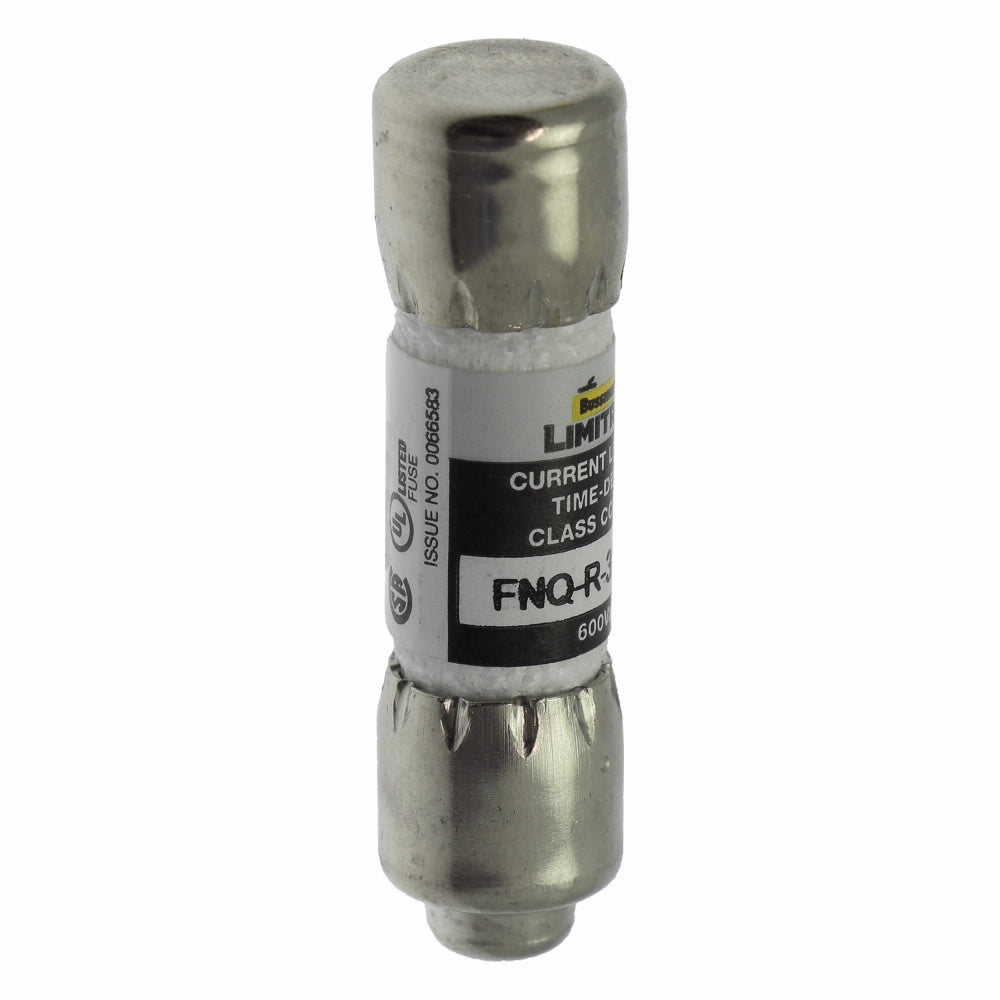

Bussmann FNQ-R-3/10 600V MDGT TD FS

Product Description

The Bussmann FNQ-R-3/10 is a Class CC fuse designed to provide protection in electrical applications. This time-delay, dual-element current limiting fuse is rated for a voltage of six hundred volts and an amperage of 0.3 A. It features a rejection style design with an interrupting rating of two hundred kiloamperes at six hundred volts AC.

• Time-delay design allows for temporary overloads without blowing.
• Rejection style ensures proper fit and safety in the circuit.
• Rated for use in safety and security systems in industrial facilities.

Product Highlights

This fuse is ideal for applications requiring safety and reliability. Use it in various electrical systems to ensure protection against overload and short circuits.

Product Information

Standard Information

• Manufacturer: Bussmann
• UPC: 05171249690

Technical Specifications

• Type: Fuse
• Class: Class CC
• Voltage Rating: 600 V
• Amperage Rating: 0.3 A
• Interrupt Rating: 200 kAIC
• Dimensions: 1.5000 in x 0.4100 in x 0.4100 in
• Material: Melamine tube
• Response Time: 12 S at 200%
