Bussmann FNQ-R-15 600V MDGT TD FS

Product Description

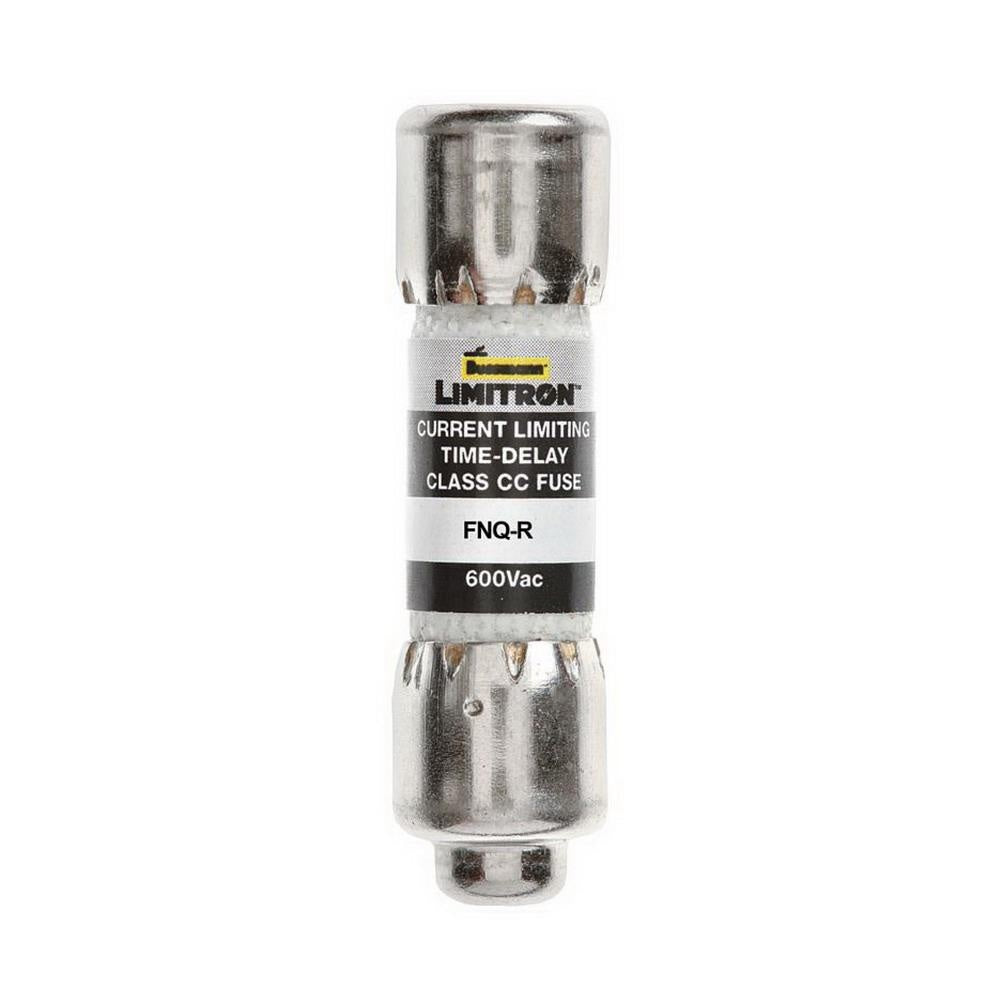

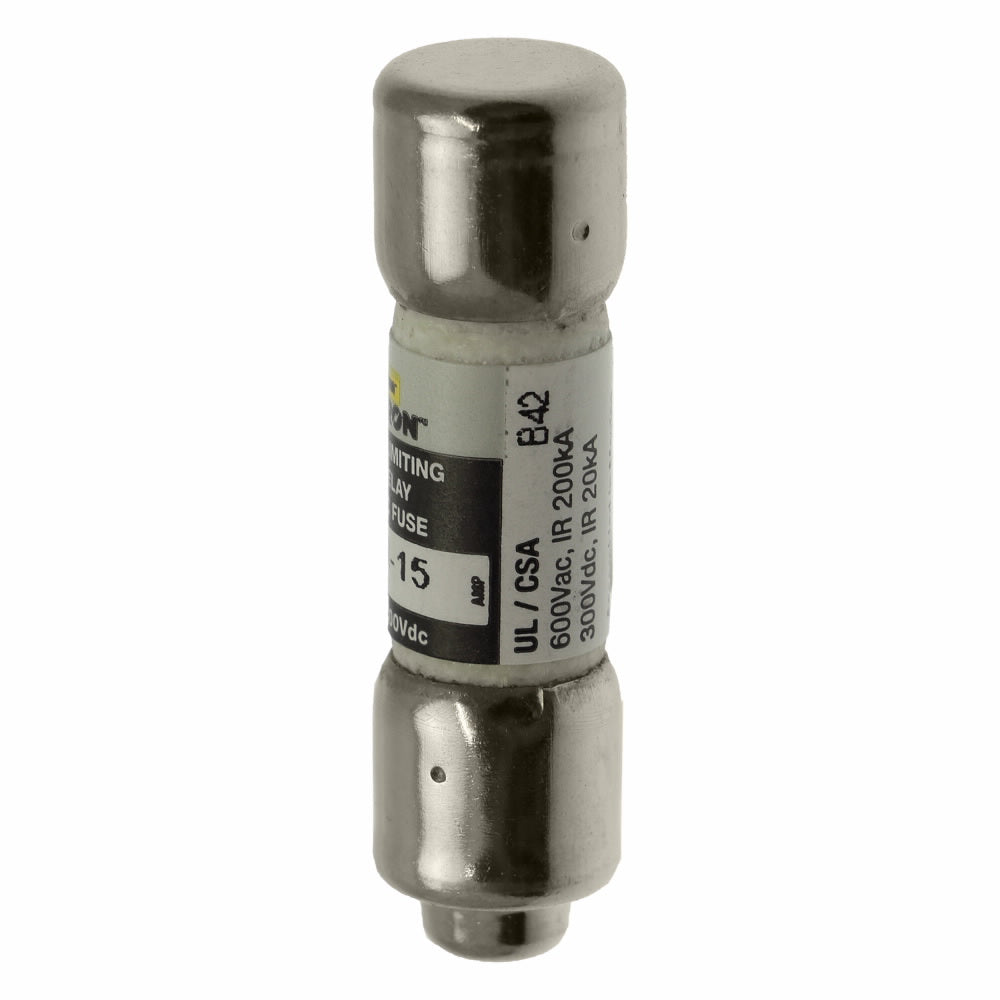

The Bussmann FNQ-R-15 is a Class CC time-delay fuse with a current rating of 15 Amperes. It operates at a voltage of 600 Volts AC and 300 Volts DC. This dual-element fuse is designed to enhance safety by limiting current and preventing equipment damage during short-circuit events.

• Time-delay function helps manage inrush current.
• Rejection style design prevents the use of lesser-rated supplementary fuses.
• Cylindrical design with ferrule terminal connections ensures secure installation.

Product Highlights

The Bussmann FNQ-R-15 is ideal for branch circuits, control transformers, and industrial applications. Its construction includes a melamine tube, and it is both UL listed and RoHS compliant.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann

Technical Specifications

• Type: Rejection
• Amperage Rating: 15 A
• Voltage Rating: 600 Vac; 300 Vdc
• Interrupt Rating: 200 kA at 600 Vac; 20 kA at 300 Vdc
• Size: 0.41 Inch Diameter x 1.5 Inch Length
• Connection: Ferrule end x ferrule end
• Material: Melamine tube
• Standards: UL Listed, CSA Certified, CE Marked, RoHS Compliant
