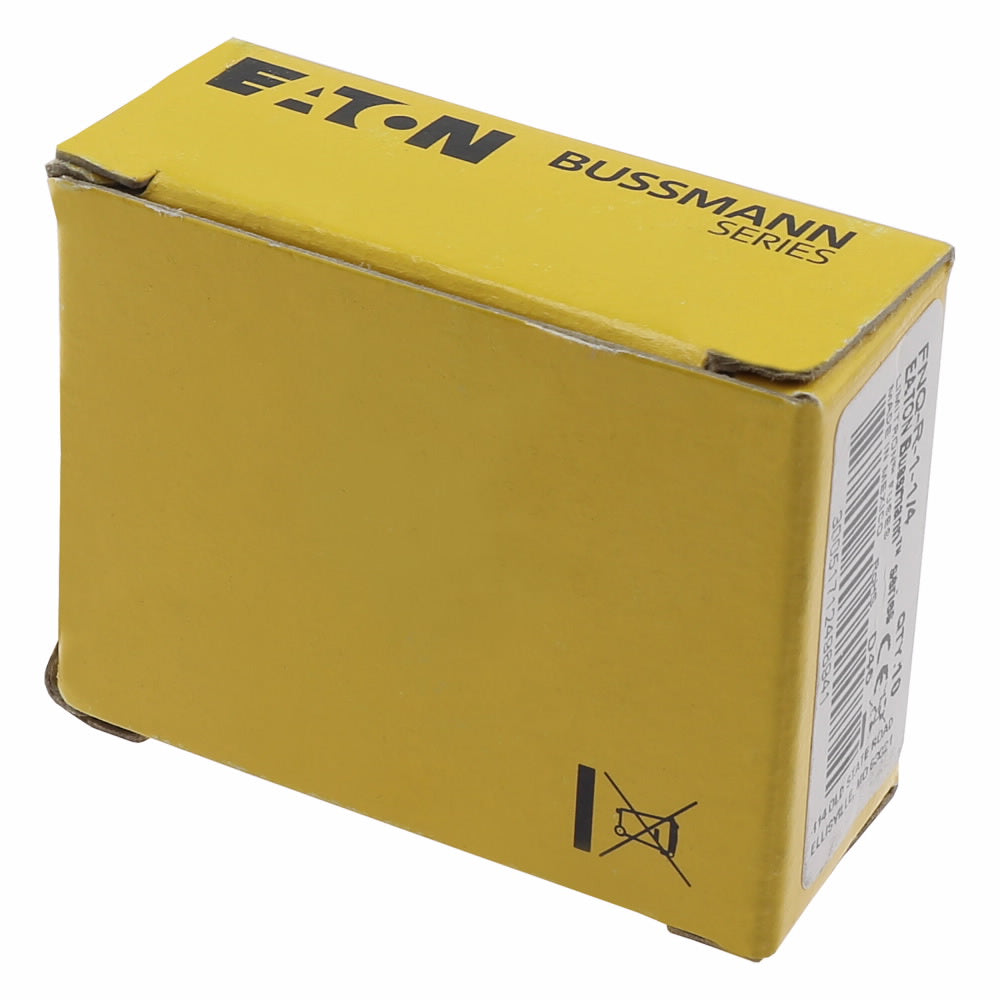

Bussmann FNQ-R-1-1/4 Fuse 1.25A 600V 200KAIC CC Rejection

Product Description

The Bussmann FNQ-R-1-1/4 is a time-delay, current limiting fuse rated at 1.25 amperes, with a voltage rating of six hundred volts and an interrupting capacity of 200 kAIC. This fuse is designed for Class CC applications, providing protection for sensitive electronic equipment.

• Time delay feature suitable for small control transformers
• Current limitation to protect against short circuits
• 200 kA interrupt rating for high safety standards

Product Highlights

This fuse is a dual-element, cylindrical body type that meets industry standards for circuit protection. Its rejection style prevents the insertion of lower-rated supplementary fuses, ensuring safe operation.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting Time Delay
• Class: CC
• Amperage Rating: 1.25 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Body Size: 13/32 inch Diameter x 1-1/2 inch Length
• Material: Melamine Tube
• Mounting Type: Holder
