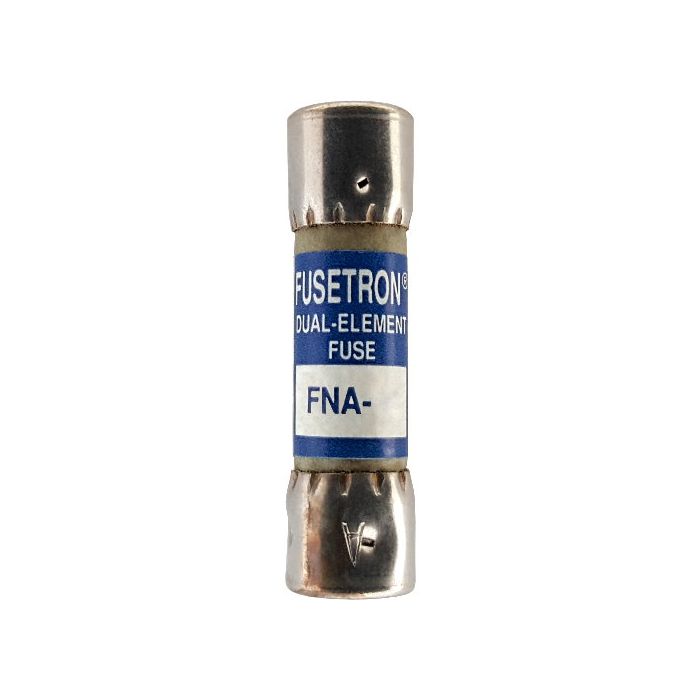

Bussmann FNA-1/2 Fusetron Dual-Element Indicating Fuse 0.5A

Product Description

The Bussmann FNA-1/2 is a time-delay fuse designed for inductive load and electronic circuits. This 0.5A, 250V fuse features silver-plated pins and dual elements, providing superior overload and cycling capabilities. It is suitable for various applications requiring reliable circuit protection.

• Superior overload and cycling capabilities
• Time Delay
• Dual Element

Product Highlights

Time-delay fuse with silver-plated pins and dual elements for reliable circuit protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNA-1/2
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton Bussmann series FNA fuse
• Catalog Number: FNA-1/2
• UPC: 051712713405
• EAN: 5027590427234
• Product Length/Depth: 0.35 in
• Product Height: 1.46 in
• Product Width: 0.35 in
• Product Type: Fuse
• Amperage Rating: 0.5 A
• Interrupt rating: 10 kAIC at 125 Vac 35 AIC at 250 Vac
• Voltage rating: 250 V
• Material: Silver-plated pin
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Superior overload and cycling capabilities
• Amps: 1/2
• Volts AC: 250
• Type: Specialty Fuse
• Element: Dual Element
• Time Delay: Time Delay
• Physical Size: 0.406" x 1 1/2"
• AC Voltage Rating: 250 V AC
• Interrupting Rating: 35 AIC @ 250 VAC
• UL Listed: (Guide # JDYX, File # E19180)
• CSA Certified: (Class 1422-01, File # 53787)
• AC Adapter Current: 0.5 Amps
• Brand: BUSSMANN
• Voltage: 250 Volts
• Maximum Current: 0.5 Amps
• Mounting Type: Through-Hole Mount
• Current Rating: 0.5 Amps
• Manufacturer: Bussmann
• Current Rating (Amps): .5A
• Voltage Rating: 250V
• Response Time: Time Delay
• Series: FNA
• Body Material: Fiberglass
• Compatible Fuse Block Series: BMM
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 35 A; 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Time-Delay
• Standards: CE; CSA Class 1422-01; UL-248-12 Guide JDYX
• Visual Indication: Indicating
• UNSPSC: 39121609
• ECCN: EAR99
• Application: Inductive load circuits, electronic circuits
• Fuse Interrupt Rating: 10 kAIC at 125V ac
• Fuse Dimension: 1-1/2 L x 13/32 in. Dia.
• Rated Voltage: 250V
• Fuse Amps: 0.5A
• Length: 0.35 in.
• Height: 1.46 in.
• Width: 0.35 in.
