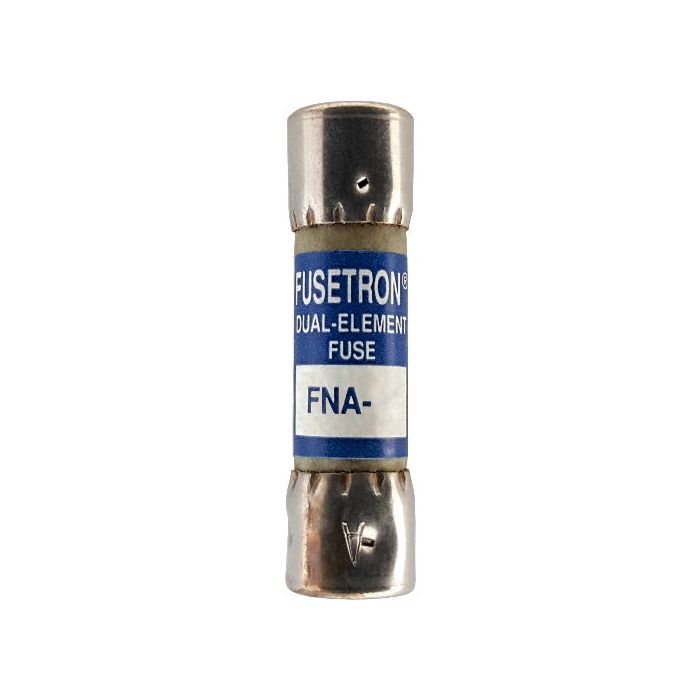

EATON Bussmann FNA-1-1/2 Fuse 1.5 A
EATON Bussmann FNA-1-1/2 Fuse 1.5 A

Bussmann FNA-1-1/2 Fuse 1.5 A

EATON
Brand: EATON
SKU: FNA-1-1/2
Availability: In Stock

Ships same day if ordered by 12 pm
$80.21
$80.21
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BUSSMANN FNA-1-1/2 is a time-delay fuse designed for inductive load and electronic circuits. It features silver-plated pins and superior overload and cycling capabilities. This dual-element fuse provides reliable protection with a voltage rating of 250V and an amperage rating of 1.5A. It is suitable for circuits with high inrush currents.

  • Superior overload and cycling capabilities
  • Dual Element
  • Time Delay

Product Highlights

Time-delay fuse with silver-plated pin for electrical signal activation. Ideal for circuits with high inrush currents.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: FNA-1-1/2
  • Country of Origin: Mexico
Technical Specifications
Product Name
Eaton Bussmann series FNA fuse
Catalog Number
FNA-1-1/2
UPC
051712713702
EAN
5027590060028
Product Length/Depth
0.35 in
Product Height
1.46 in
Product Width
0.35 in
Compliances
CE Marked
Product Type
Fuse
Amperage Rating
1.5 A
Interrupt rating
10 kAIC at 125 Vac 200 kAIC at 250 Vac
Voltage rating
250 V
Material
Silver-plated pin
Number of elements
Dual
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Volts AC
250
Type
Specialty Fuse
Physical Size
0.406" x 1 1/2"
AC Voltage Rating
250 V AC
UL Listed
(Guide # JDYX, File # E19180)
CSA Certified
(Class 1422-01, File # 53787)
Series
FNA
Manufacturer Part Number
FNA-1-1/2
Body Material
Fiberglass
Compatible Fuse Block Series
BMM
Current Rating
1.5 A
Element
Dual
Fits Fuse Block Style
Non-Rejection
Fuse Body Style
Cylindrical
Fuse Class or Type
Midget
Interrupt Rating - AC
200 A; 10 kA
Overall Diameter
13/32 in
Overall Length
1-1/2 in
Speed
Time-Delay
Standards
CE; CSA Class 1422-01; UL-248-12 Guide JDYX
Visual Indication
Indicating
UNSPSC
39121609
Ampere
1.5 A
Class
Midget Fuses
Shape
Cartridge Fuses
Approvals
CE, UL, CSA
Substitute parts
Mersen GFN
Dimensions
0.406" Dia x 1.5" L (10.31x38.1mm)
Item weight
0.36 oz
Other names
FNA1.5, FNA 1.5 Amp, FNA-1.5, FNA-1-1/2, FNA 1.5A, FNA1.5A, FNA-1.5A, FNA 1-1/2, FNA 1-1/2A
Primary brand
Eaton
Secondary brand
Cooper Bussmann
Main function
Fuse
Product series / family name
LV supplemental fuses
Sub-range name
Fuse cartridges
Functions
Low-Voltage (LV) time-delay supplemental fuse cartridge
Design
dual-element
Rated current
1.5A
Color
Green color code
Rated voltage (AC)
250Vac
Short circuit breaking rating
200A (at 250Vac; UL/CSA)
Visual position indicator
pin indicator (Silver-plated)
Order code / Manufacturer SKU
FNA-1-1/2
Manufacturer product status
Commercialized
Compliant with standard(s)
UL Listed Guide JDYX File E19180
