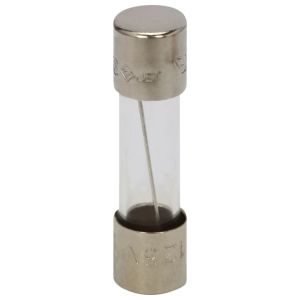

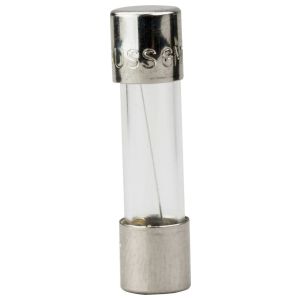

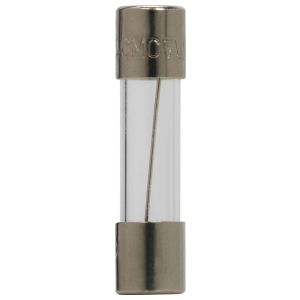

Bussmann (Eaton) BK/GMC-100-R Eaton GMC Series Medium Time-Delay Fuse 0.1A 250 Vac 32 Vdc (self certified)

Product Description

The Bussmann (Eaton) BK/GMC-100-R is a medium time-delay fuse designed for electronic circuit protection. This fuse is built to the UL 248-14 standard and features glass tube construction.

• Fuse rate of 0.1A, with a rated voltage of 250Vac and 32Vdc.

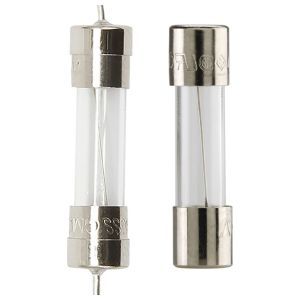

• Install in Bussmann Series holders or with optional axial leads for through-hole installation.
• Includes fuse interrupt ratings of 35 AIC at 250 Vac and 10 kAIC at 125 Vac.

Product Highlights

This fuse is ideal for applications requiring reliable overcurrent protection in various electronic devices.

Product Information

Standard Information

• Brand: Bussmann (Eaton)
• Manufacturer: Bussmann (Eaton)

Technical Specifications

• ECCN: EAR99
• Country of Origin: CN - China
• UNSPSC: 39121607
• Response Time: 60 min at 135%, 2 min at 200%
• Shape: Rectangular
• Fuse Interrupt Rating: 35 AIC at 250 Vac | 10 kAIC at 125 Vac
• Width: 0.1969 inches
• Fuse Amps: 0.1A
• Height: 0.19 inches
• Length: 0.7874 inches
• Rated Voltage: 250Vac, 32Vdc (self certified)
