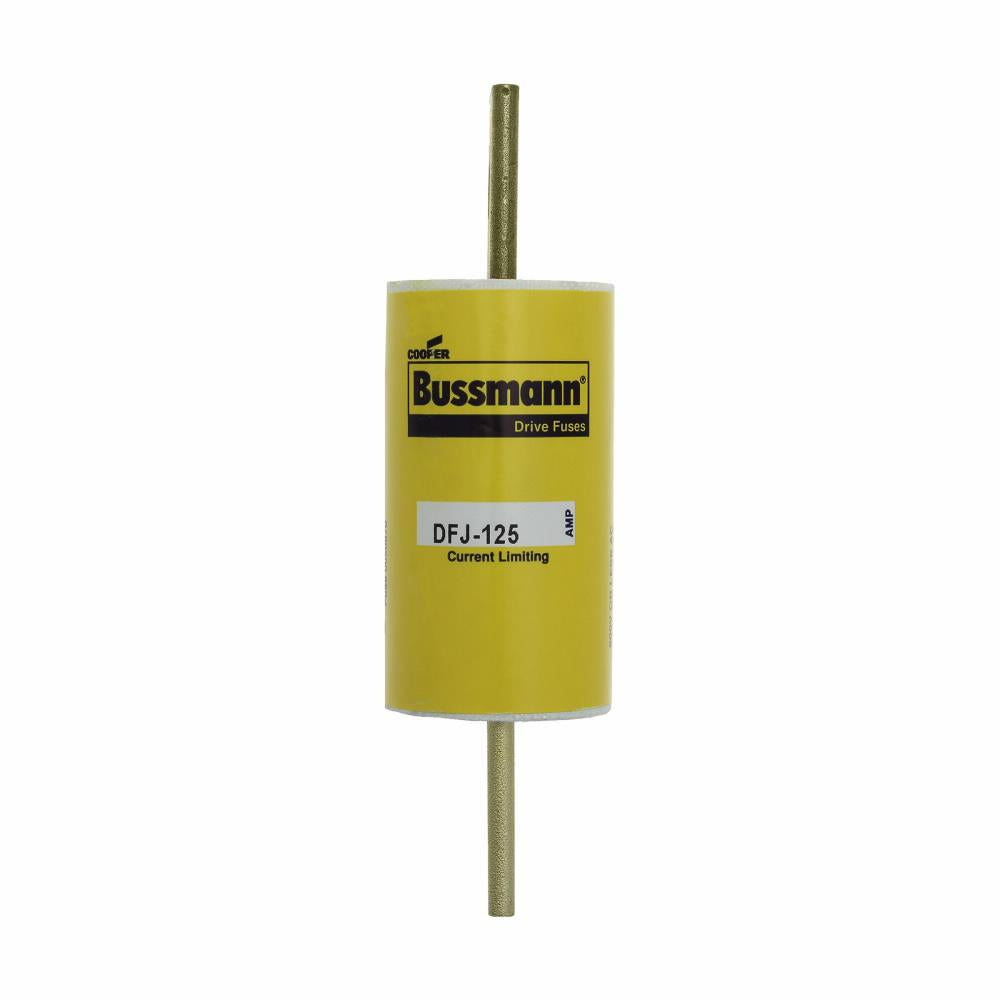

Bussmann DFJ-125 Current Limiting High Speed Drive Fuse 125 A 600 VAC/450 VDC

Product Description

The Bussmann DFJ-125 is a current limiting high speed drive fuse designed to protect AC and DC drives and controllers. This fuse complies with NEC branch circuit protection requirements. It features outstanding protection by limiting the let-through energy to power semiconductor devices like diodes and SCRs.

• Current limiting properties
• Designed for AC and DC applications
• Compatible with standard Class J fuse holders

Product Highlights

This fuse is ideal for use with variable speed drives and electric controllers.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• MPN: DFJ-125
• Amperage Rating: 125 A
• Voltage Rating: 600 VAC/450 VDC
• Interrupt Rating: 200/100 kAIC
• Body Size: 1.63 inch diameter x 5.75 inches length
• Body Type: Cartridge
• Material: Melamine
• Element: Silver
• Mounting Type: Stud
• Terminal Type: Blade End
• Class: J
• Indicating: Non-Indicating
• Rejection: Non-Rejection
