Bussmann BG3011SQ Fuse Block 0.18-15A

Product Description

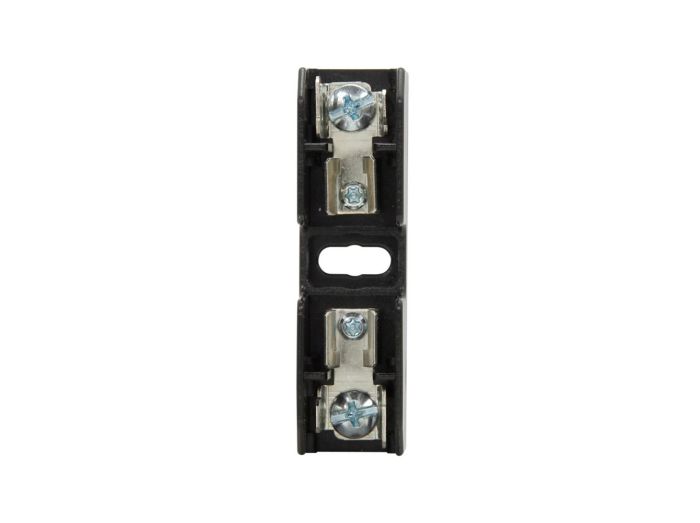

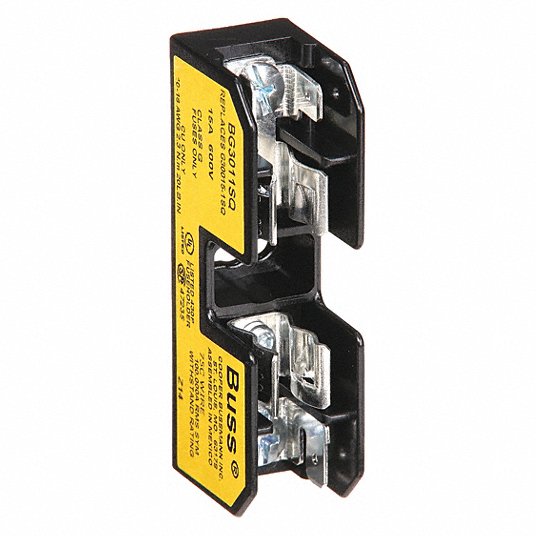

The BUSSMANN BG3011SQ is an open fuse block designed for use with Class G fuses. It accommodates amperage ratings from 0.18-15A and supports single-pole configurations. Constructed from thermoplastic, it features screw/quick connect connections and offers a 100 kAIC interrupt rating. It is suitable for electrical assemblies, panels, and EOEM applications.

• Accepts time-delay fuses for space-constrained installations.
• Features an open-top design for easy fuse access.
• Compatible with 14 to 10 AWG copper/aluminum wire.

Product Highlights

This fuse block provides branch circuit protection in lighting, appliance, and control panel applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BG3011SQ
• Country of Origin: United States

Technical Specifications

• Type: Open fuse block
• Class: Class G
• Material: Thermoplastic
• Mounting: Din Rail
• Connection: Screw/quick connect
• Application: Elec Assemblies; Panels -N- EOEM - Electrical Assemblies; Panels and EOEMs
• Manufacturer: BUSSMANN
• Voltage Rating: 600 V
• Amperage Rating: 0.18-15A
• Special Features: Wire Size 14 To 10 AWG (Copper/Aluminum); Interrupt Rating 100 kA (RMS Symmetric
• Interrupt rating: 100 kAIC
• Short-circuit rating: 100 kA
• Number of poles: Single-pole
• Wire size: #14-10 AWG Cu/Al
• Used with: For use with SC fuse
• Amps AC: 1 to 15
• Connector Type: Screw/Slip-On
• For Use With: SC Fuses
• Fuse Size Dia. (In.): 13/32
• Fuse Size Length (In.): 1-5/16
• Item: Fuse Block
• Max. Voltage: 600
• MPN: BG3011SQ
• Brand: Bussmann
• ManufacturerPartNumber: BG3011SQ
• Current Rating: 15 A
• Poles: 1
• Fuse Type: Class G
• Connection Type: Quick Connect, Screw Terminal
• Mounting Type: Panel Mount
• Composition: Thermoplastic
• Trip Indicator: No
• Reinforced: No
• Enclosed: No
• AC Voltage Rating: 600 V AC
• Body Material: Thermoplastic
• Compatible Fuse Series: AG, SC, SLC
• Current - Maximum: 15 A
• Current - Minimum: 0 A
• DC Voltage Rating: 170 V DC
• Compatible Fuse Class or Type: Class G
• Compatible Fuse Diameter: 13/32 in
• Compatible Fuse Length: 1-5/16 in
• Fuse Block Terminal Type: Quick Connect; Screw
• Fuse Block Design: Open
• Fuse Block Mounting Style: Bolt-Down
• Fuse Block Style: Rejection
• Number of Poles: 1
• Overall Height: 1.22 in
• Overall Length: 3 in
• Overall Width: 0.86 in
• Standards: CSA; RoHS; UL
• Visual Indication: Non-Indicating
• Wire Size - Maximum: 10 AWG
• Wire Size - Minimum: 14 AWG
• UNSPSC: 39121411
