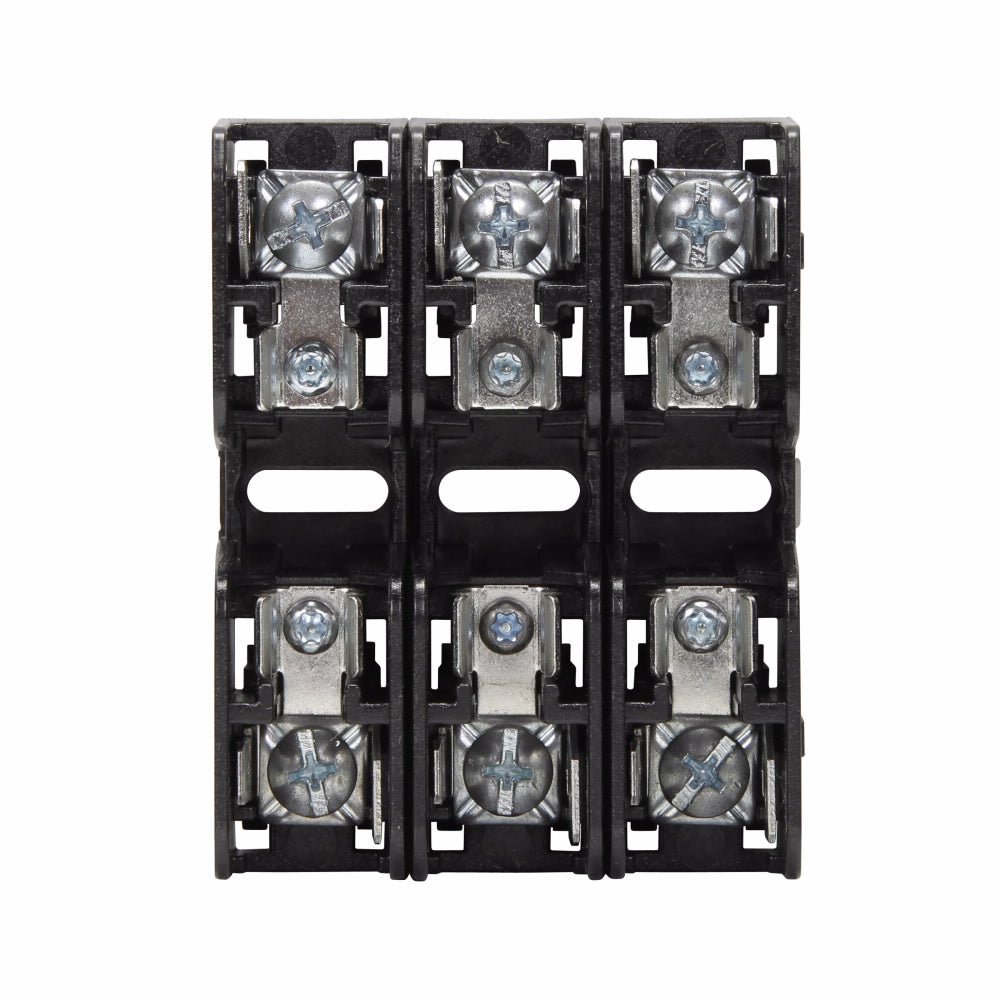

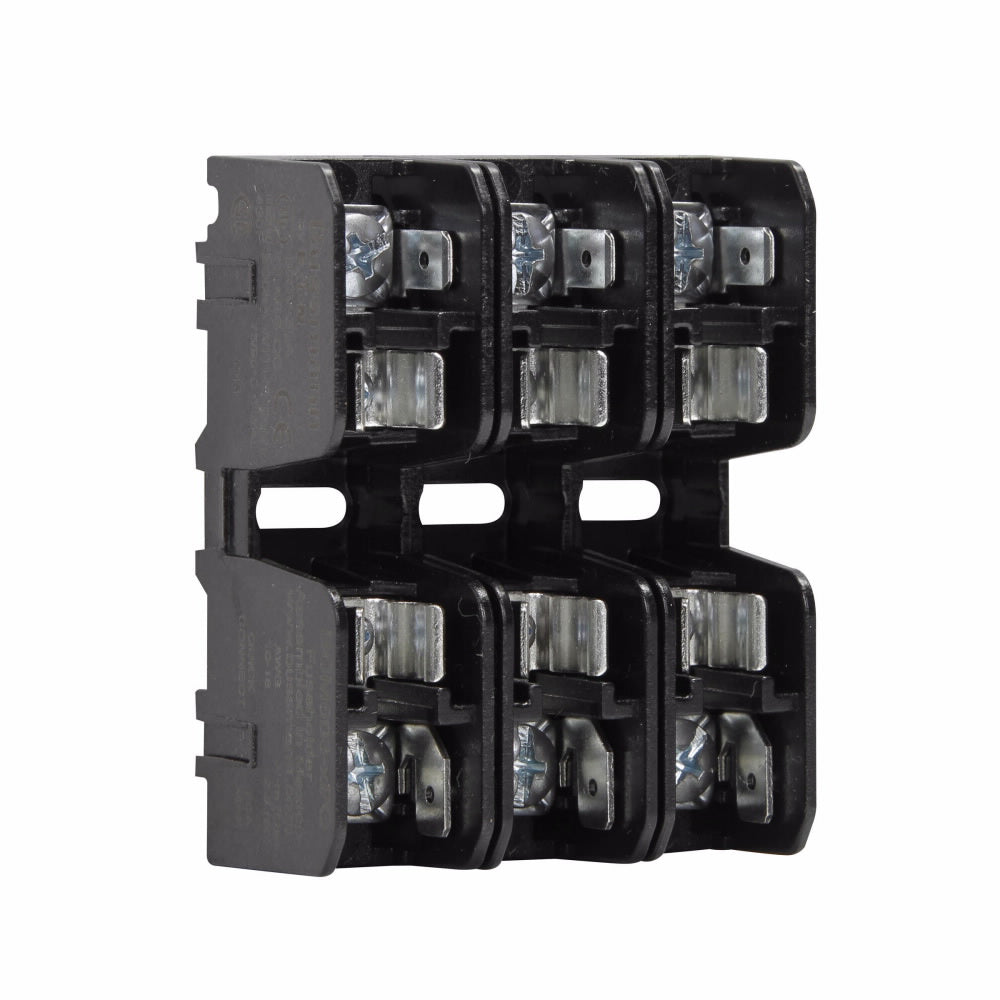

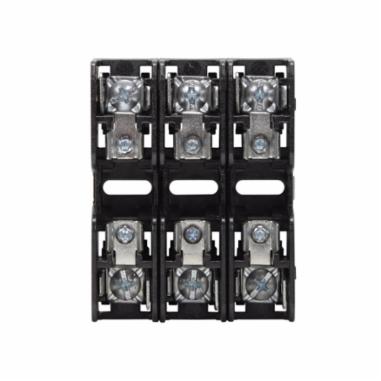

Bussmann BCM603-3PQ Modular Fuse Block 600 VAC 30 A

Product Description

The Bussmann BCM603-3PQ is a modular fuse block designed for use in electrical assemblies and panels. It features a pressure plate connection type, making it suitable for a voltage rating of six hundred VAC and an amperage rating of thirty A. This three-pole fuse block is compatible with various wire sizes, ranging from eighteen to ten AWG.

Key Features:

• Modular design allows easy assembly without tools.
• DIN rail and panel mounting options provide flexibility for various applications.
• Robust thermoplastic material ensures durability and safety.

Product Highlights

The BCM603-3PQ fuse block is engineered to enhance safety and efficiency in electrical panel designs. It is ideal for low-peak LP-CC Series time delay fuses and fast-acting fuses from the Limitron series.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann

Technical Specifications

• Class: CC
• Connection Type: 1/4 in Quick-Connect/Pressure Plate
• Dimensions: 3 in L x 2.4 in W x 1.3 in H
• Material: Thermoplastic
• Mounting Type: DIN Rail/Panel
• Series: BCM
• Suitable For Use With: Low-Peak LP-CC series time delay, Limitron FNQ-R series time delay, Limitron KTK-R series fast acting fuse
• Temperature Rating: -40 to 120 degrees Celsius
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Wire Size: 18 to 10 AWG
• Number of Poles: 3
