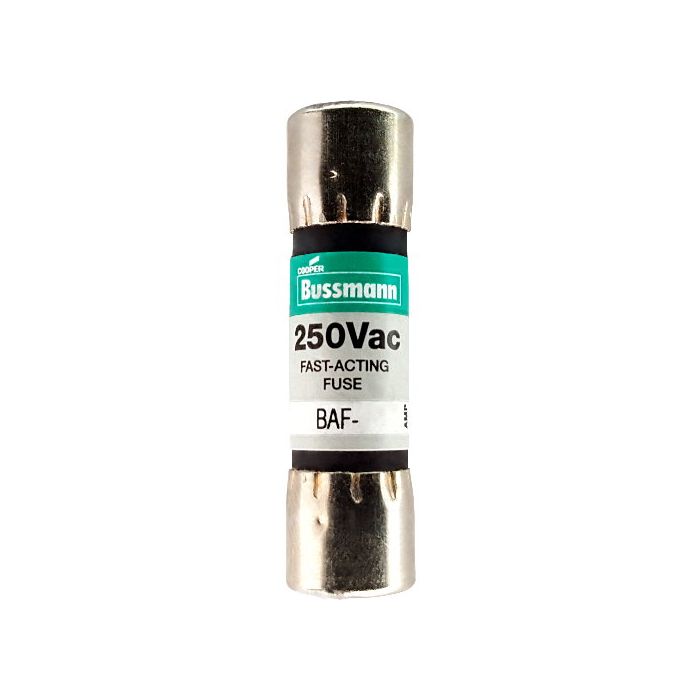

Bussmann BAF-8 BAF 8 amp midget fuse

Product Description

The BUSSMANN BAF-8 is a fast-acting midget fuse with a fiber tube construction and nickel-plated endcaps. It is designed for general purpose circuits, lighting circuit protection, and meter circuits. The fuse has an AC voltage rating of 250V and a DC voltage rating of 12V.

• Fast Acting
• Fiber Tube
• Nickel Plated Brass Endcaps

Product Highlights

This midget fuse is suitable for general purpose circuits, lighting circuit protection, and meter circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BAF-8
• Country of Origin: China

Technical Specifications

• AC Voltage Rating: 250
• DC Voltage Rating: 12
• Interrupting Rating: 10,000 AIC @ 125 VAC
• Physical Size: 13/32" x 1 1/2"
• Ampere: 0.8 A
• Speed: Fast Blow
• Class: Midget
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Dimensions: 0.41" Dia x 1.5" L (10.3x38.1mm)
• Catalog Number: BAF-8
• UPC: 051712320092
• EAN: 5027590449120
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 8 A
• Material: Nickel-plated brass endcaps
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Silver-plated fuse caps, replacement for "F15B" fuses
• ECCN: EAR99
• UNSPSC: 39121609
• End Type: Ferrule End x Ferrule End
• Fuse Interrupt Rating: 10 kAIC at 125 Vac|200 AIC at 250 Vac
• Fuse Dimension: 1-1/2 L x 13/32 in. Dia.
• Rated Voltage: 250V
• Fuse Amps: 8A
• Length: 0.41 in.
• Height: 1.5 in.
• Width: 0.41 in.
• UNSPSC Code: 39120000
• Brand: Bussmann by Eaton
• Current Rating: 8 A
• Series: BAF Series
• Type: Fuse
• Unit of Measure: EA
• UPC Code: 51712320092
• Weight: 0.25 lbs
