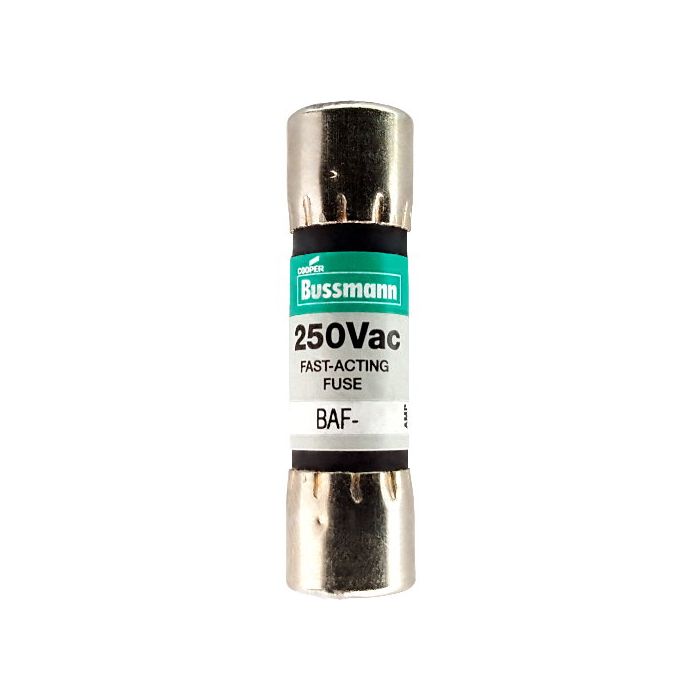

Bussmann BAF-2-1/2 Fuse 2.5A

Product Description

The Eaton Bussmann series BAF fuse, MPN BAF-2-1/2, is a fast-acting fuse with nickel-plated brass endcaps. This standard fuse is non-indicating with ferrule end x ferrule end connections. It is rated for 100 AIC at 250 Vac and 10 kAIC at 125 Vac. It provides rapid response to protect current-sensitive equipment.

• Fast acting
• Non-indicating
• Ferrule end x ferrule end
• Nickel-plated brass endcaps
• Standard
• Silver-plated fuse caps, replacement for "F15B" fuses

Product Highlights

The Bussmann BAF-2-1/2 is a fast-acting fuse with a fiber tube and nickel-plated brass endcaps, designed to protect sensitive equipment with its rapid response to current changes.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BAF-2-1/2
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series BAF fuse
• Catalog Number: BAF-2-1/2
• UPC: 051712320139
• EAN: 5027590407175
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 2.5 A
• Interrupt rating: 10 kAIC at 125 Vac 100 AIC at 250 Vac
• Voltage rating: 250 V
• Material: Nickel-plated brass endcaps
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Silver-plated fuse caps, replacement for "F15B" fuses
• Amps: 2 1/2
• Voltage: 250
• Fuse Type: Midget
• Acting Type: Fast Acting
• Tube Material: Fiber
• Physical Size: 13/32" x 1 1/2"
• Endcaps: Nickel Plated Brass
• AC Voltage Rating: 250 V AC
• Interrupting Rating @ 250 VAC: 100 AIC
• Interrupting Rating @ 125 VAC: 10,000 AIC
• UL File #: E19180
• Series: BAF
• Manufacturer Part Number: BAF-2-1/2
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HEX; HPG; HPS
• Current Rating: 2.5 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 100 A; 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast-Acting
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• UNSPSC Code: 39120000
• Dimensions: 1.50 in H X 0.41 in W X 0.41 in L
• Indicator: Non-indicating
• Shape: RECTANGULAR
• Type: Fuse
• Unit of Measure: EA
• UPC Code: 051712320139
• Part #: 31A31426
• Package Quantity: 1
