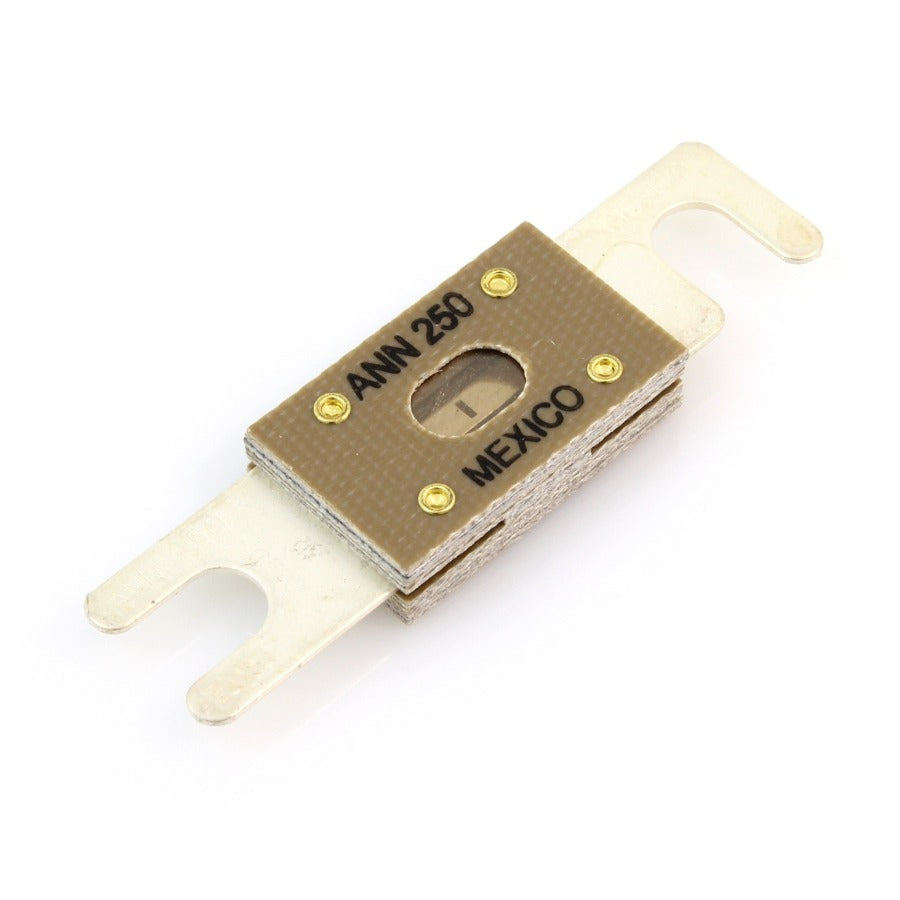

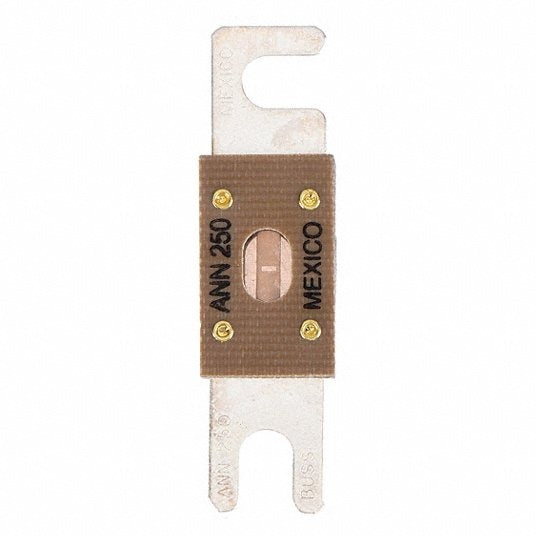

Bussmann ANN-250 ANN low voltage limiter fuse 250A (Bolt-Down)

Product Description

The Bussmann ANN-250 is a very fast-acting low-voltage limiter fuse rated 250 A for 125 VAC and 80 VDC applications. It uses a bolt-down stud design for high-vibration, high-current environments and features an open-link element visible through a mica window. The fuse provides 2,500 AIC interrupting capacity at 125 VAC and 2,700 AIC at 80 VDC and fits Cooper Bussmann 4164 ANN/ANL fuse holders for forklift and battery-operated systems.

• Bolt-down stud mounting for high-vibration and high-current applications; compatible with Cooper Bussmann 4164 ANN/ANL fuse holders
• Very fast-acting limiter, 250 A rating with interrupting ratings of 2,500 AIC at 125 VAC and 2,700 AIC at 80 VDC
• Open-link element visible through a mica window; blade-end connection and compact footprint

Product Highlights

250 A very fast-acting low-voltage limiter for 125 VAC/80 VDC with 2.5 kAIC/2.7 kAIC interrupt ratings, bolt-down stud mount, open-link mica window

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: ANN250
• Country of Origin: Mexico
