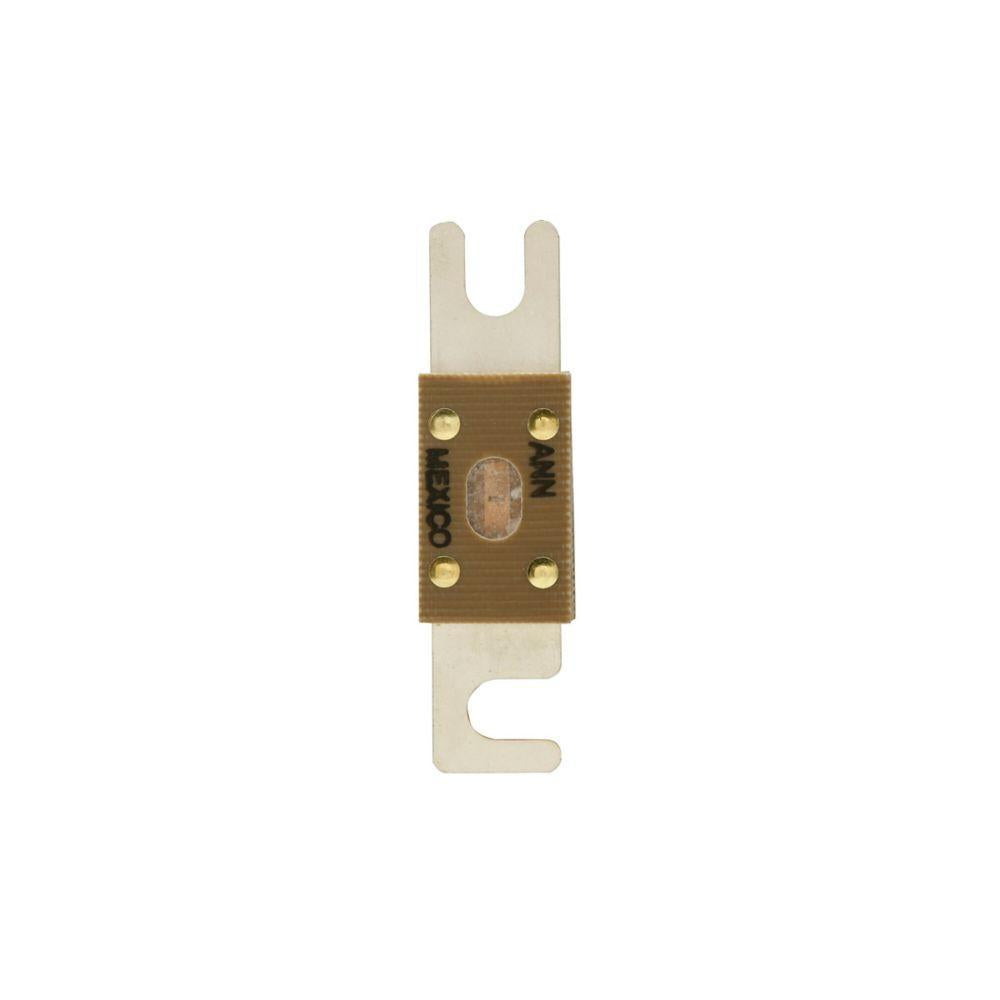

Bussmann ANN-200 circuit limiter 200 A

Product Description

The BUSSMANN ANN-200 is a non-indicating, very fast acting circuit limiter. It is AC/DC rated for applications such as plating rectifiers and charging systems in battery-operated vehicles. This circuit limiter offers a high speed of response to short circuit currents and saves space in equipment due to its small footprint.

• Small footprint saves space in equipment
• Window shows limiter status
• High speed of responses to short circuit currents

Product Highlights

This circuit limiter is a reliable and economical alternative to Class T fuses in non-code installations.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: ANN-200

Technical Specifications

• Body Size: 3-3/16 in L x 7/8 in W
• Element: Single
• Material: Melamine
• Mounting Type: Stud
• Series: ANN
• Terminal Type: Bolted-Down
• Type: Non-Indicating Very Fast Acting
• Amperage Rating: 200 A
• Voltage Rating: 125 VAC/80 VDC
• Interrupt Rating: 2.5 kA @ 125 V
• Body Type: Flat
• Manufacturer Part Number: ANN-200
• Manufacturer: Bussmann
• Product Series: ANN
• Fuse Type: Plating Rectifier Type
• Characteristic: Very Fast Acting
• Alarm Contacts: No
• Package Type: Center Slotted
• Approvals: CSA, UL
