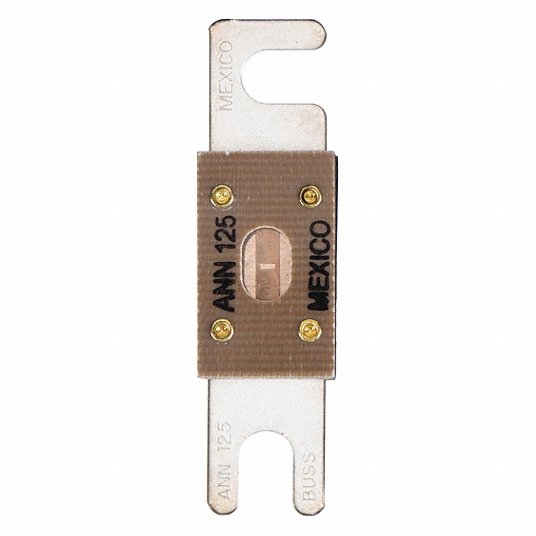

EATON Bussmann ANN-125 Circuit Limiter 125A
EATON Bussmann ANN-125 Circuit Limiter 125A
EATON Bussmann ANN-125 Circuit Limiter 125A
EATON Bussmann ANN-125 Circuit Limiter 125A

Bussmann ANN-125 Circuit Limiter 125A

EATON
Brand: EATON
SKU: ANN-125
Availability: In Stock

Ships same day if ordered by 12 pm
$129.30
$129.30
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton Bussmann series ANN-125 circuit limiter is rated at 125A, with a 2.5 kAIC at 125 Vac and 2.7 kAIC at 80 Vdc. Featuring blade end x blade end connection and stud mounting, this non-indicating limiter has a small footprint. It isolates faults in battery operated systems and is very fast acting.

  • Small footprint
  • 125 Amps, 125 Volts AC
  • Isolates faults in battery operated systems

Product Highlights

The Bussmann ANN-125 is a very fast-acting circuit limiter with a blade end x blade end connection and stud mounting.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: ANN-125
  • Country of Origin: Mexico
Technical Specifications
Product Name
Eaton Bussmann series ANN circuit limiter
Catalog Number
ANN-125
UPC
051712706315
EAN
5027590056656
Product Length/Depth
3.38 in
Product Height
1.62 in
Product Width
0.95 in
Product Type
Circuit limiter
Amperage Rating
125 A
Interrupt rating
2.5 kAIC at 125 Vac 2.7 kAIC at 80 Vdc
Voltage rating
125 Vac, 80 Vdc
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Mounting method
Stud
Special features
Small footprint
Amps
125
Volts AC
125
Application
Fork Lift Truck Fuse
Fuse Class
Limiter
Speed
Very Fast Acting
Physical Size
0.88" x 3.19"
AC Voltage Rating
125V AC
DC Voltage Rating
80V DC
Interrupting Rating
2,700 AIC @ 80VDC
Mounting
Stud Mounts in Buss Fuseblock 4164
Features
Isolates faults in battery operated systems
AC Adapter Current
125 Amps
Brand
Bussmann
Voltage
250 Volts
Material
Glass, Melamine
Maximum Current
125 Amps
Mounting Type
Through-Hole Mount
Current Rating
125 A
Specification Met
UL, iso
Series
ANN
Equivalent Fuse Series
ANN | CNN
Manufacturer Part Number
ANN-125
Body Material
Glass/Melamine
Compatible Fuse Block Series
4164
Element
Single
Fits Fuse Block Style
Non-Rejection
Fuse Body Style
Bolt-On
Interrupt Rating - AC
2.5 kA
Interrupt Rating - DC
2.7 kA
Overall Diameter
7/8 in
Overall Length
3-3/16 in
Standards
CE; CSA Certification Class 1422-30; UL Guide JFHR2
Visual Indication
Indicating
UNSPSC
39121606
ECCN
EAR99
Connection Type
Blade end x blade end
Fuse Interrupt Rating
2.5 kAIC at 125V ac
Fuse Type
Circuit Limiter
Rated Voltage
125V ac/80V dc
Shape
Rectangular
Fuse Amps
125A
Length
3.38 in.
Height
1.62 in.
Width
0.95 in.
Body Style
Bolt-On
Item
Limiter Fuse
Interrupt Rating
2.5kA at 125V AC, 2.7kA at 80V DC
Equivalent Brand and Series
Bussmann ANN, Littelfuse CNN, Mersen CNN
Equivalent Series
ANN, CNN
Indicating / Nonindicating
Indicating
Fuse Speed
Very Fast Acting
Fuse Voltage Rating
125VAC/80VDC
Current
125 A
