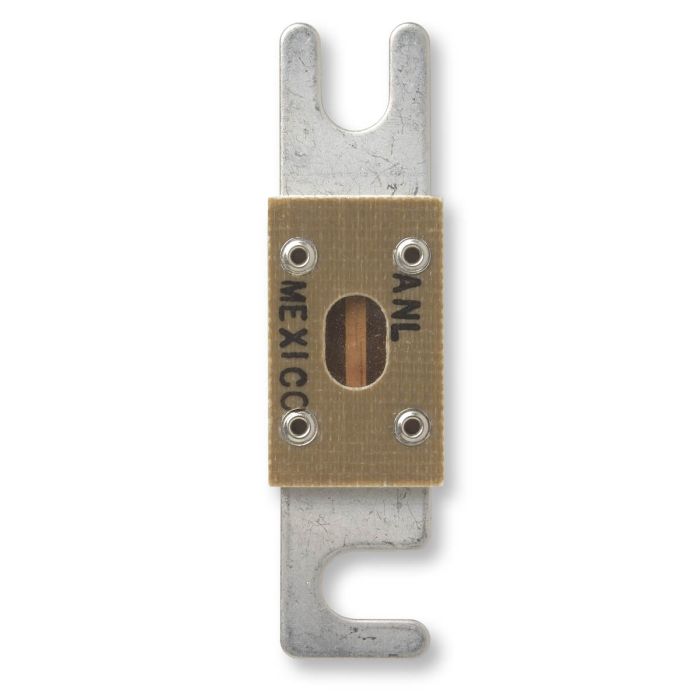

Bussmann ANL-80 ANL Circuit Limiter 80 A

Product Description

The Eaton Bussmann series ANL-80 circuit limiter is rated at 80 A, 6 kAIC at 32 Vac, and 2.7 kAIC at 80 Vdc. It features blade end x blade end connection and stud mounting. This non-indicating circuit limiter has a small footprint and is designed for isolating faults in battery operated systems.

• Small footprint
• Non-indicating fuse
• For use in isolating faults in battery operated systems

Product Highlights

The Bussmann ANL-80 is a reliable circuit limiter for low voltage applications, offering robust protection in a compact design.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: ANL-80

Technical Specifications

• Product Name: Eaton Bussmann series ANL circuit limiter
• Catalog Number: ANL-80
• UPC: 051712706117
• Product Length/Depth: 3.38 in
• Product Height: 1.62 in
• Product Width: 0.95 in
• Product Type: LIMITER FUSE
• Amperage Rating: 80 A
• Interrupt rating: 6 kAIC at 32 Vac 2.7 kAIC at 80 Vdc
• Voltage rating: 32 Vac, 80 Vdc
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating
• Mounting method: Stud
• Special features: Small footprint
• Voltage Rating AC: 32VAC
• Interrupt Rating: 6kA
• Current Rating: 80A
• Fuse Delay: Non Time Delay
• Brand: Bussmann
• Type: Electrical Fuse
• Voltage: 32 V
• Fuse Type: Circuit Limiter Fuse
• MPN: ANL-80
• Class: Low-Voltage Limiter
• Series: ANL
• Mfg Cat No: ANL-80
• Amps: 80 Amp
• Manufacturer: Eaton Bussmann
• Vendor Item: ANL-80
