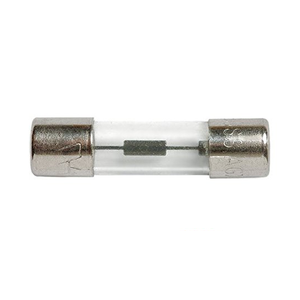

Bussmann AGX-25 AGX Fast-Acting Fuse 25 Amp (1/4 inches x 1 inches)

Product Description

The BUSSMANN AGX-25 is a fast-acting glass tube fuse designed for protecting instruments, electronic devices, and small appliances. This fuse has an AC voltage rating of 32V and a 25A amperage rating. It is UL Listed, meeting standard 248-14.

• Fast Acting
• Physical Size: 1/4" x 1"
• Interrupting Rating: 1000 AIC @ 32 VAC

Product Highlights

The BUSSMANN AGX-25 fuse provides reliable overcurrent protection in a compact size for various electronic applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGX-25
• Country of Origin: Mexico

Technical Specifications

• Amps: 25 A
• Voltage: 32 Volts AC
• Fuse Type: Glass Tube
• Speed: Fast Acting
• Size: 1/4" x 1"
• End Cap: Nickel plated brass
• Interrupting Rating: 1000 AIC at 32 VAC
• Application: For instruments, electronic and small appliance circuits
• Standard: UL Listed product meets standard 248-14
• Product Length/Depth: 1 in
• Product Height: 0.25 in
• Product Width: 0.25 in
• Compliances: Not Applicable
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 4 hr at 110%, 60 min at 135%, 2 min at 200%
• Material: Glass tube Nickel-plated brass end cap construction
• Packaging type: Standard
• Quantity: 5
• Type: Electronic
• Special features: Glass tube
• Interrupt rating: 1kA at 125VAC
• Class: 8AG
• Shape: Glass Fuse
• Approvals: CE, UL, CSA
• Dimensions: 0.25" Dia x 1" L (6.3x25.4mm)
• Brand: Cooper Bussmann
• MPN: BK/AGX-25
• Package Quantity: 10
