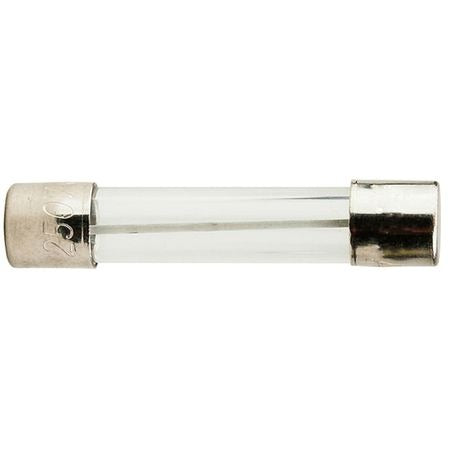

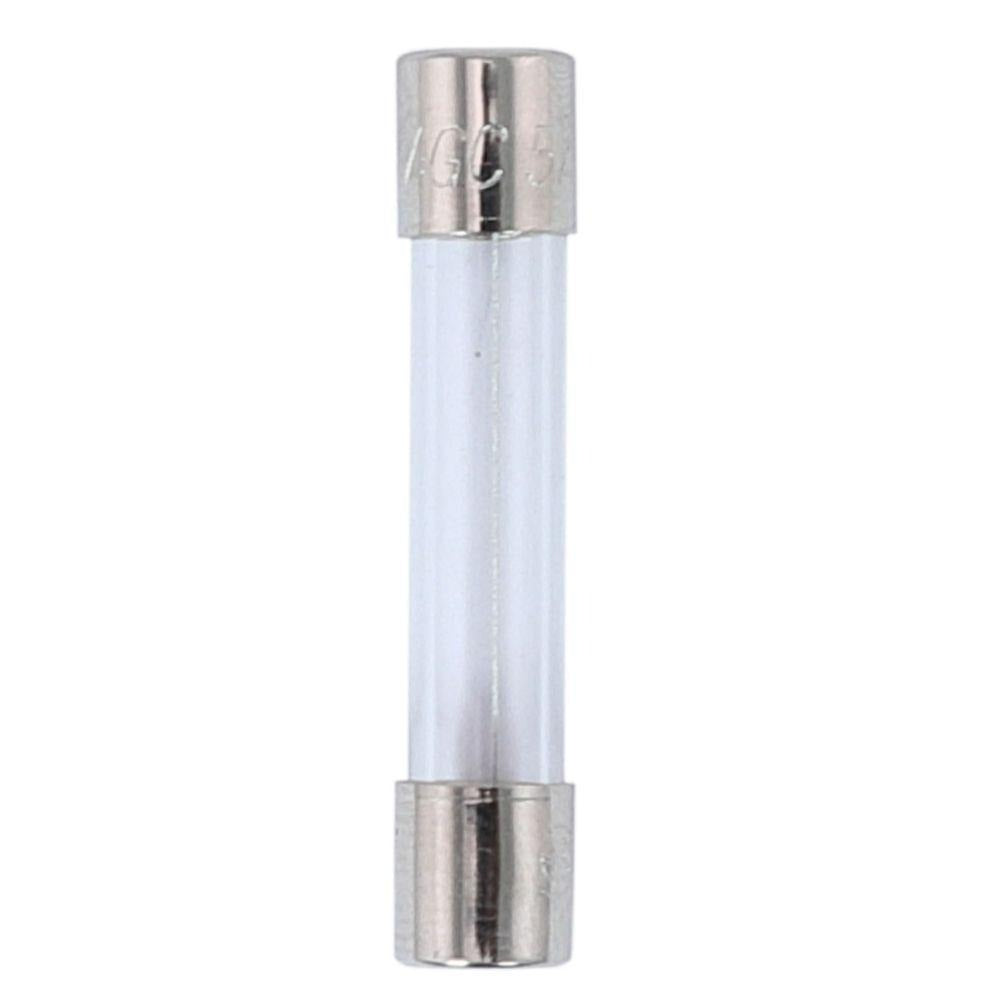

Bussmann AGC-5 Low Voltage Fuse 5 A (1/4 x 1-1/4 in)

Product Description

Bussmann AGC-5 is a fast-acting AGC series glass ferrule fuse rated 5 A at 250 V for low-voltage circuit protection. The cylindrical glass body measures approximately 1/4 inch diameter by 1-1/4 inch length and uses nickel-plated brass endcaps. The fuse provides an AIC/interrupt rating of 200 A at 250 VAC and is intended for protection of electronic and electrical circuits requiring a fast-acting fuse.

• Fast-acting AGC glass ferrule fuse rated 5 A at 250 VAC
• Physical size approximately 1/4 in diameter x 1-1/4 in length with nickel-plated brass endcaps
• Interrupt/AIC rating 200 A @ 250 VAC for low-voltage circuit protection

Product Highlights

AGC series glass fuse, 5 A at 250 VAC, 1/4 x 1-1/4 in, 200 A AIC

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGC5
• Country of Origin: Taiwan
