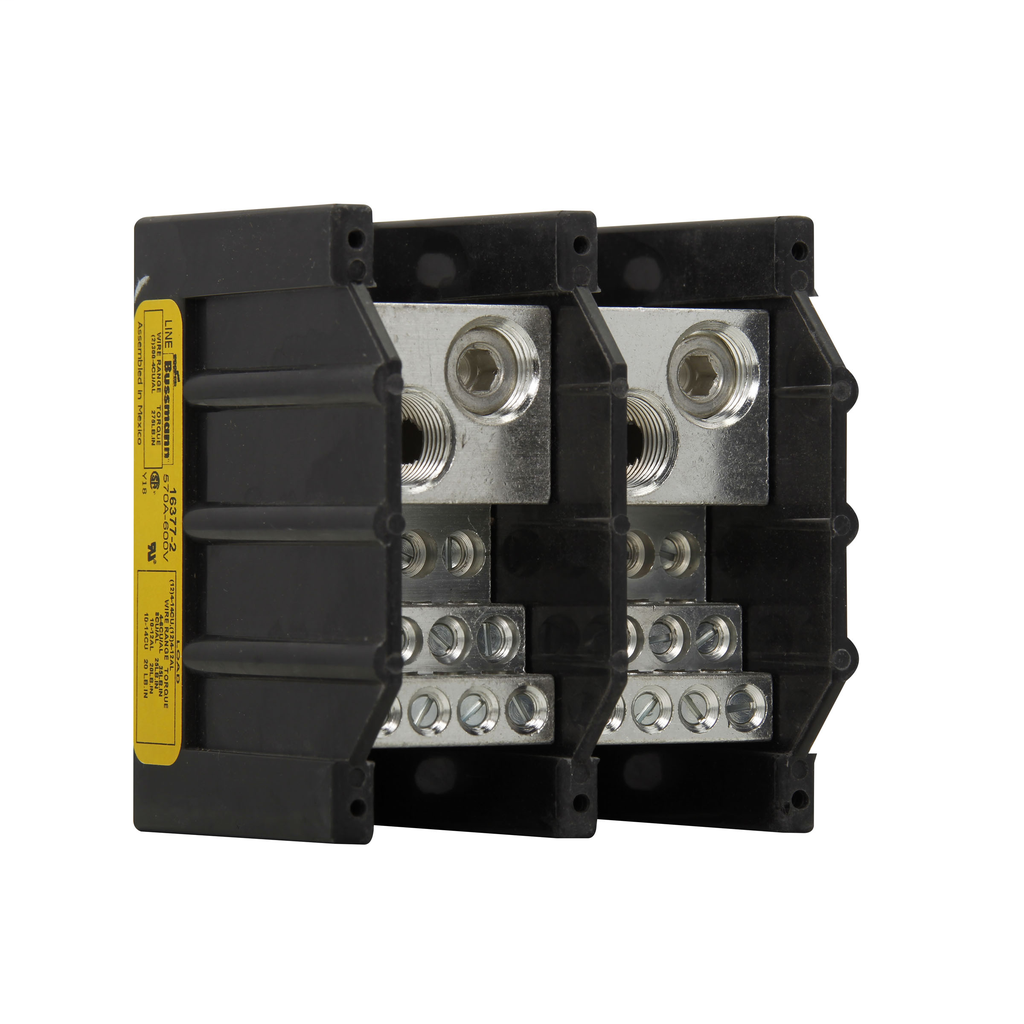

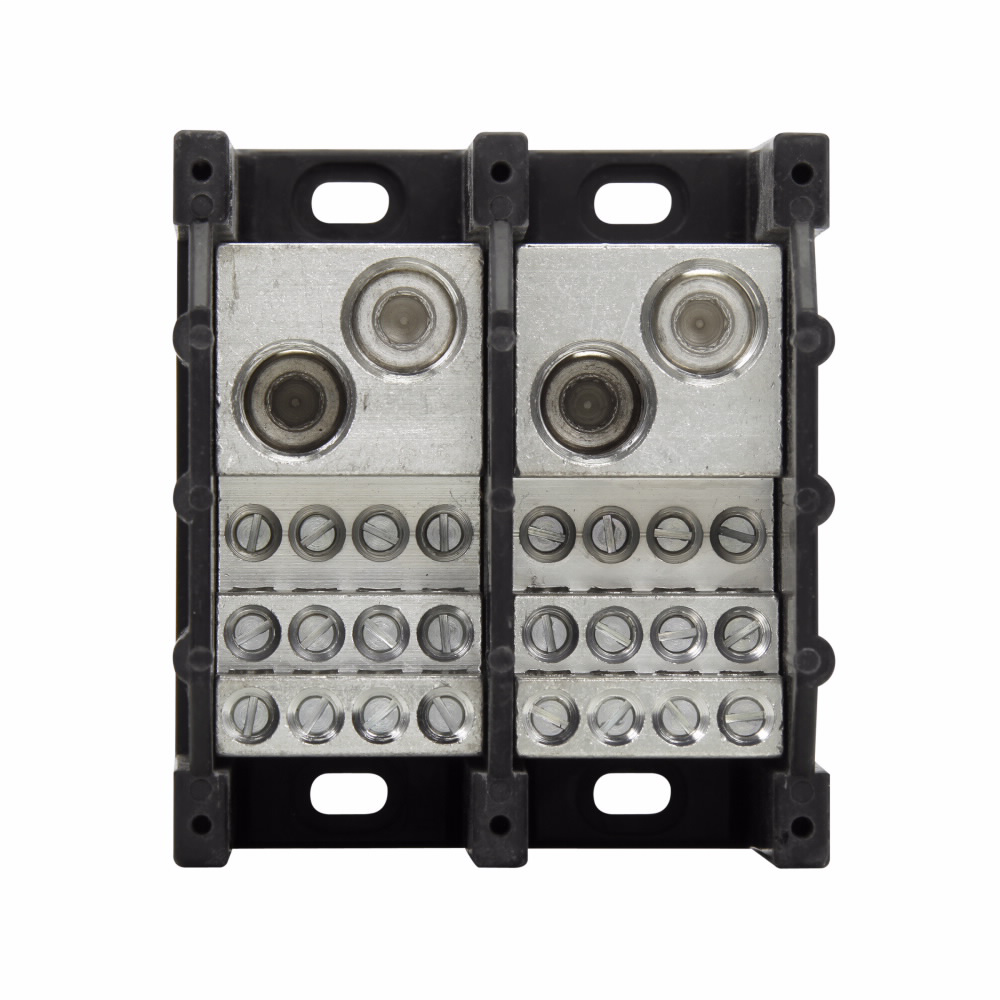

Bussmann 16377-2 Power Distribution Block

Product Description

The Bussmann Series 16377-2 Power Distribution Block is designed for high voltage applications. It operates at six hundred volts alternating current and direct current with a maximum current rating of five hundred seventy amperes. This two-pole power distribution block features a molded thermoplastic base and a tin-plated aluminum connector.

• Two-pole design for versatile power distribution
• Rated for six hundred volts AC/DC
• Maximum current capacity of five hundred seventy amps

Product Highlights

This power distribution block is ideal for electrical assemblies, panels, and original equipment manufacturers. It meets CSA and UL standards for safety and reliability, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: 16377-2
• Voltage Rating: 600 Volt
• Amperage Rating: 570 Amp
• Material: Thermoplastic
• Conductor Size: 4 AWG-300 kcmil
• Number of Poles: 2 Pole
• Weight: 1.37 lb
• Dimensions: 3.60 in Length X 4.00 in Width X 3.32 in Height
