Product Description

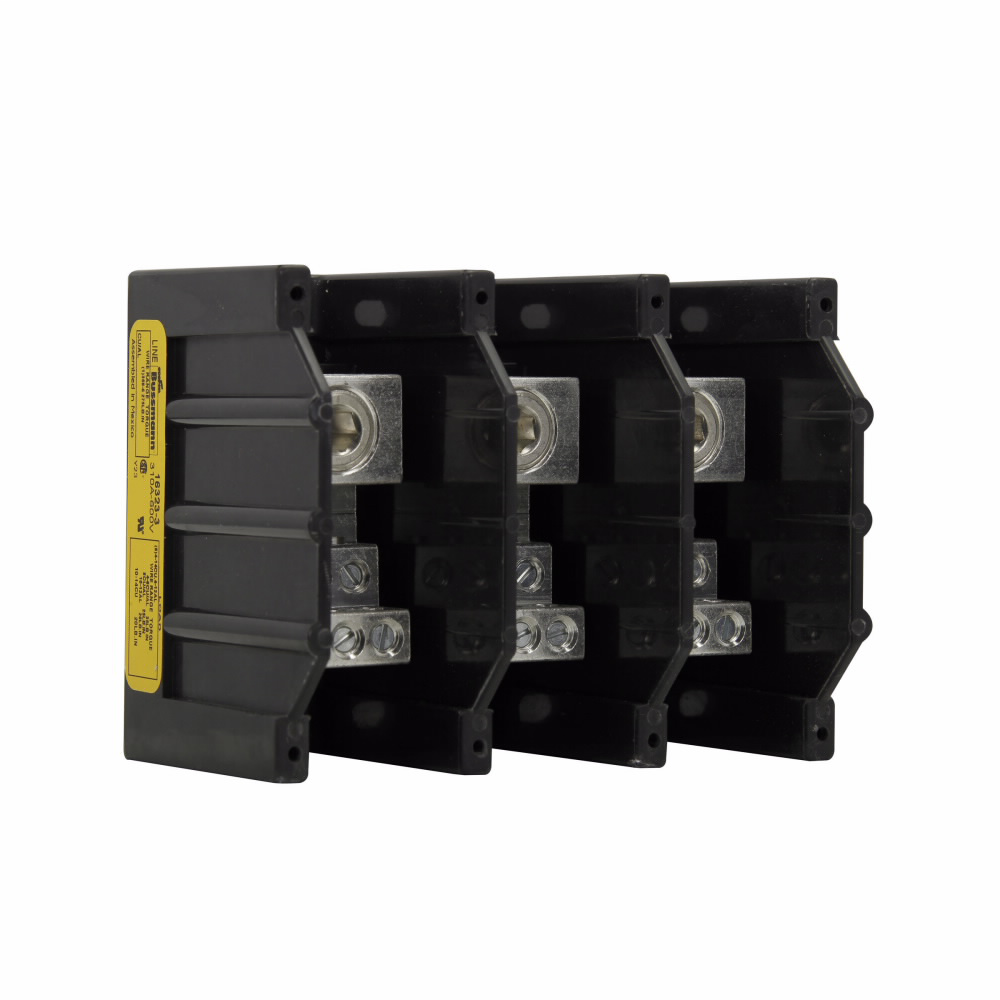

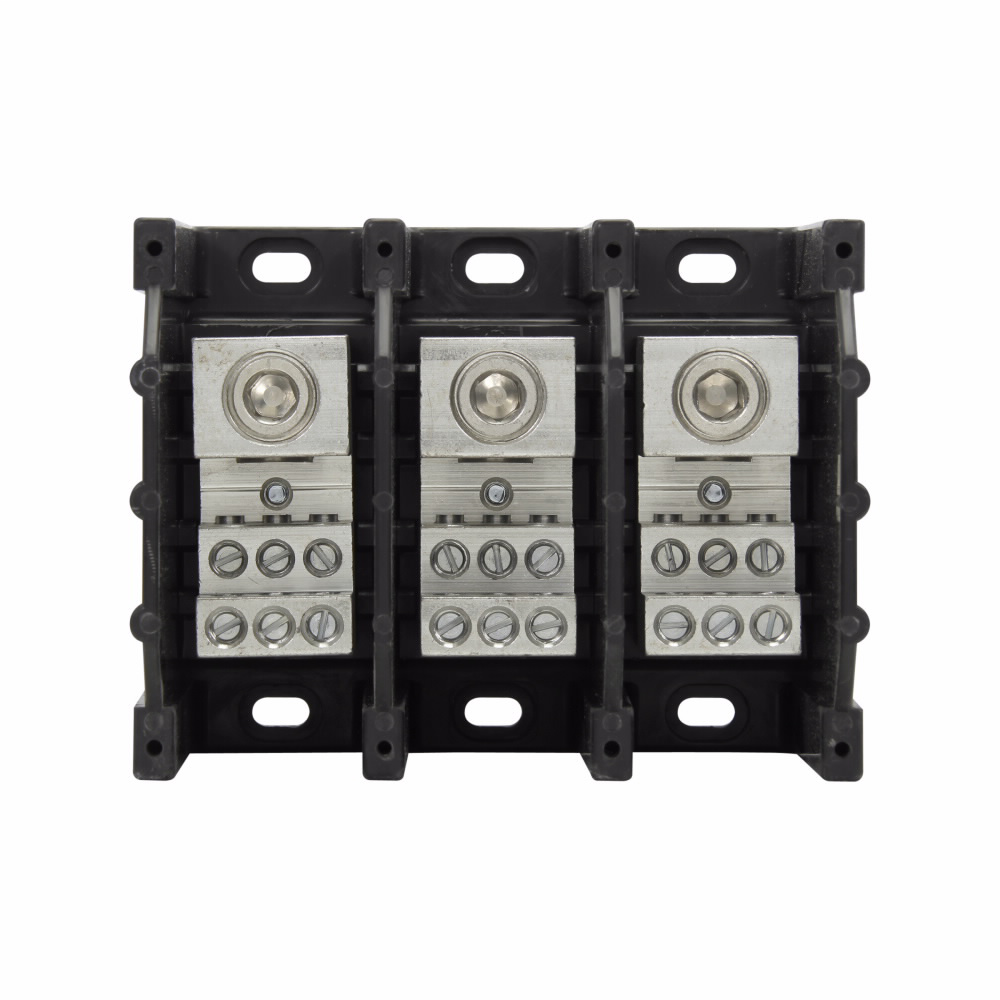

The Bussmann Series 16323-3 Power Terminal Block is designed for effective power distribution. This block operates at 600 volts AC and DC with a maximum current rating of 310 amps. It features three poles for versatile connections. The terminal block is constructed with a molded thermoplastic base and includes a tin-plated aluminum connector for reliable conductivity.

  • Three-pole design for flexible applications
  • Rated for indoor and outdoor use with a voltage of 600V
  • Suitable for electrical assemblies and panels

Product Highlights

This terminal block is ideal for use in electrical assemblies, panels, and OEM applications.

Product Information

Standard Information

  • Brand: Bussmann
  • Manufacturer: Bussmann Mfg.

Technical Specifications

  • MPN: 16323-3
  • Voltage: 600 Volt
  • Amperage: 310 Amp
  • Material: Thermoplastic
  • Number of Poles: 3
  • Wire Size: 6 AWG-350 KCMIL (Copper/Aluminum) Line, (6) 14-4 AWG (Copper) or 12-4 AWG (Aluminum) Load
  • Weight: 1.53 lb
  • Dimensions: 3.98 inch length x 4.98 inch width x 3.22 inch height
