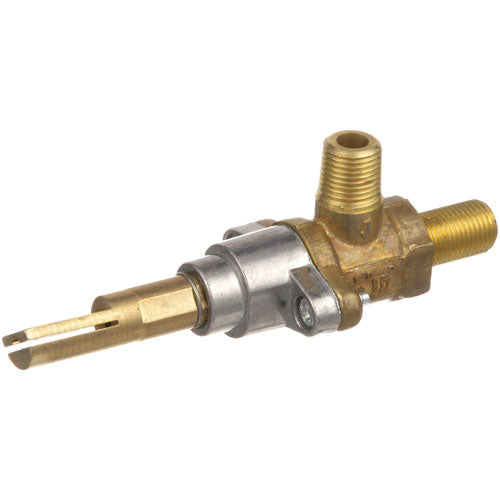

Burner Valve 1/8MPT X 3/8-27 2J1178202 for Southbend 2J1178202

Product Description

This item for Southbend with MPN 2J1178202 is a burner valve rated for gas connections. The valve features a one-eighth MPT thread on one end and a three-eighths by twenty-seven thread on the other. It is designed to control the flow of gas in commercial kitchen equipment.

• Designed for kitchen equipment
• Gas burner valve
• Compatible with Southbend models

Product Highlights

This burner valve fits models within the Southbend range, including top burners and griddles. It allows for precise control of gas flow with a rotation mechanism configured to turn off and on easily.

Product Information

Standard Information

• Weight: 0.19 lbs
• Length: 3.5 inches
• Width: 1.5 inches
• Height: 1.3 inches

Technical Specifications

• Thread Type: 1/8MPT X 3/8-27
• Stem Position: Down
• Stem Size: 0.240 inches
• Stem Length: 1.5 inches
• Center Inlet to End of Stem: 2.5 inches
• Angle: 90 degrees
• Model Compatibility: Southbend models 300, 400, 324, 336, 348, 360, 424, 436, 448, 460, 1300, and 1400
