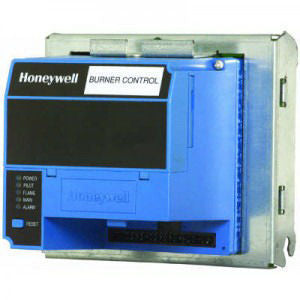

Honeywell R7140L1009 Upgrade Replacement Programming Control -40 to 140 deg F

Product Description

The Honeywell R7140L1009 is a burner control designed for gas, oil, or combination fuel systems. This microprocessor-based module is capable of automatically managing single burner applications. It operates effectively within a temperature range of -40 to 140 degrees Fahrenheit.

• Features automatic burner sequencing and flame supervision.
• Includes system diagnostics for troubleshooting.
• Compatible upgrade for BC7000 and R4140 legacy systems.

Product Highlights

The R7140L1009 enhances burner management with reliable performance and efficient operations.

Product Information

Standard Information

• Brand: Honeywell
• MPN: R7140L1009

Technical Specifications

• Dimensions: 6-5/32 inches H x 7 inches W x 5-3/4 inches D
• Voltage: 120V
• Frequency: 50 Hz, 60 Hz
• Flame Establishing Period - Pilot: 4 sec or 10 sec
• Flame Establishing Period - Main: 10 sec, 15 sec, 30 sec, or intermittent
• Required Components: UR7847, R7848, R7849, R7851, R7852, R7861, R7886 flame signal amplifier, ST7800 plug-in purge timer
