Burndy YS6CA1 AL Splice 6 AWG

Product Description

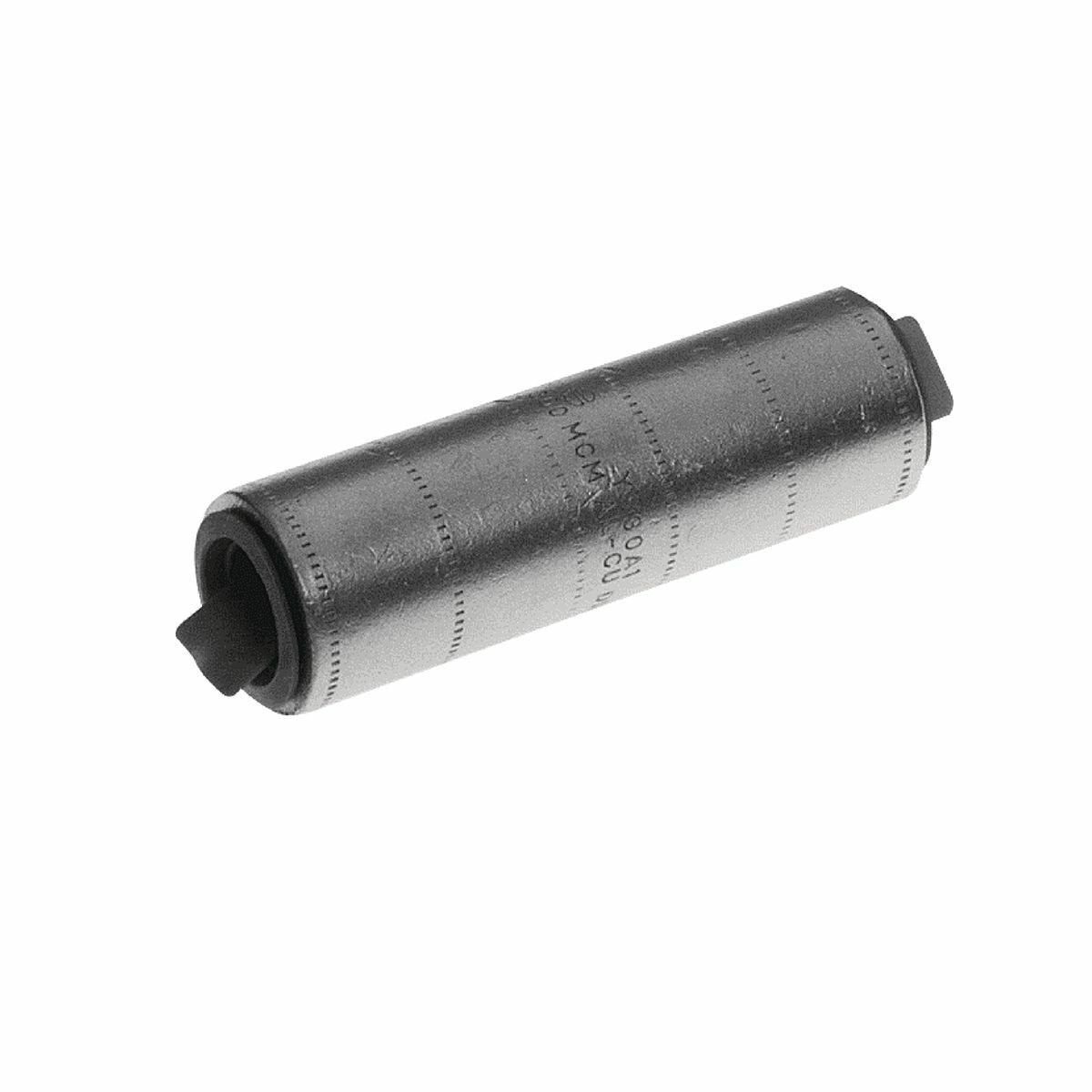

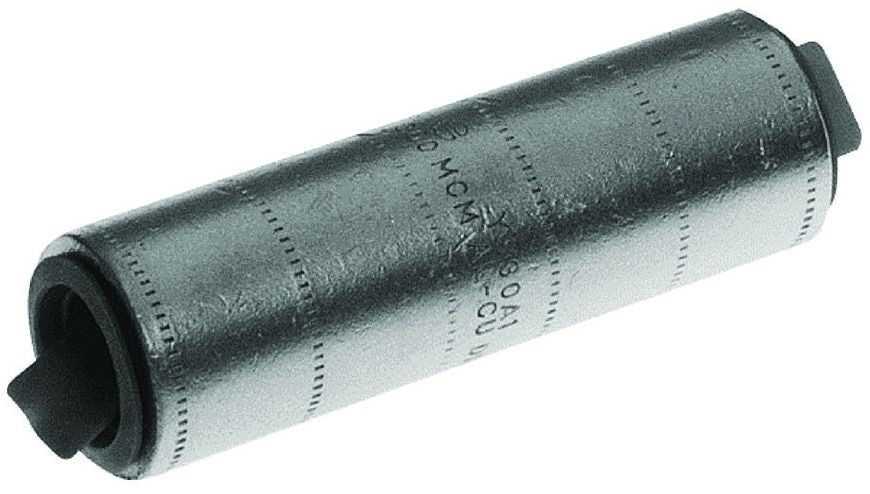

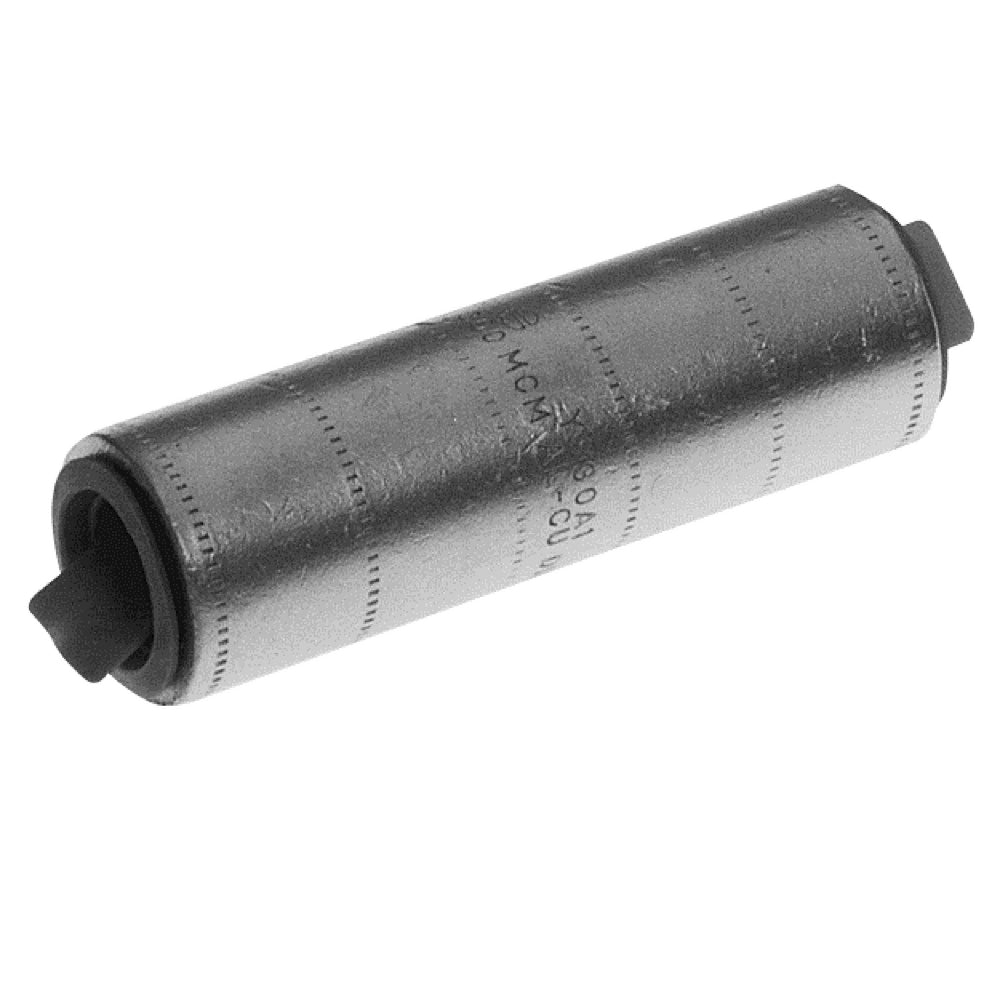

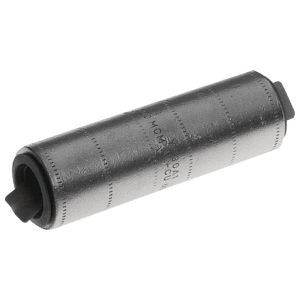

The BURNDY YS6CA1 is an aluminum compression splice designed for 6 AWG conductors. This splice features an internally beveled barrel for easy cable entry and is prefilled with PENETROX oxide inhibiting compound. It is suitable for use with aluminum to aluminum, aluminum to copper, and copper to copper conductor combinations.

• Manufactured from high-conductivity wrought aluminum with heavy duty wall thickness
• Electro-tin plated for durable, long-lasting corrosion resistance
• Color-coded end caps provide easy wire size and die code identification

Product Highlights

This 6 AWG aluminum compression splice ensures a reliable electrical connection for various conductor combinations, withstanding up to 35kV.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YS6CA1
• Country of Origin: USA

Technical Specifications

• Catalog Number: YS6CA1
• Brand: Burndy
• Manufacturer: Burndy
• Conductor Size: 6 AWG
• Connector Type: Compression
• Connection Type: Splice
• Material: Aluminum
• Finish: Tin Plated
• Plating Type: Tin - Electro Plated
• Overall Length: 1.70 in
• Type: Butt with Center Wire Stop
• Voltage: 35,000 Volt
• Max Voltage: 35000 V
• Applications: For Use on All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper Conductor Combinations
• Color Coding: Gray
• Temperature Rating: 194 degrees C
• Width: 0.34 in
• Height: 0.34 Inch
• Length: 1.7 Inch
• Plated?: Yes
• Sub Brand: Hylink™
• Wire Size: 6 AWG
• Buy American Compliant: Y
• Standard: UL 486A-486B
• Item Type: YS-A, Standard Barrel
• Voltage Rating: 600 Volt - 35 Kilo-Volt
• Application: Wire Splice
• UNSPSC: 39121449
• Lug Wire Size: 6 AWG
• Conductor Material: Copper/Aluminum
• Barrel Type: Long with Belled End, Chamfered
• Outer Diameter: 0.34 Inch
• Body Material: Electro Tin Plated Aluminum
• Approval: UL, CSA
• RoHS Compliant: True
• Wire Strip Length: 3/4 Inch
• Die Index: 346
• Barrel Length: 1.7
• Barrel Diameter: 0.34 Inch
• Standards: UL 468A/B Listed, CSA Certified, RoHS Compliant
• Industry Standard(s): UL 486A-486B
• Dimension - B Length inch: 0.72 in
• Dimension - L Length Overall mm: 43 mm
• Dimension - Length Overall inch: 1.70 in
• Dimension - Outside Diameter i: 0.34 in
• Dimension - Strip Length inch: 7/8 in
• Outside Diameter: 0.34 in
• Conductor Type: CODE
• Certification - CSA Approved: Yes
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• Termination Type: Compression
• Number of Ports: 1
• Peep Hole: No
• Energy Star Flag: No
• Made In America: Yes
• Manufacturer Part Number: YS6CA1
• Manufacturer Name: Burndy
• Item Name: Compression Butt Splice
• Conductor - AL Str Size: 6 AWG
• Conductor - AL Str Size Range: 6 AWG
• Conductor - Copper Str Compact Size: 6
• Conductor - Copper Str Size: 6 AWG
• Conductor - Copper Str Size Range: 6 AWG
• Conductor - Material: ALUMINUM / COPPER
• Finish Type: Tin-Plated
• Use With: All Combination of Aluminum to Aluminum Conductors; Aluminum to Copper Conductors; Copper to Copper Conductors
