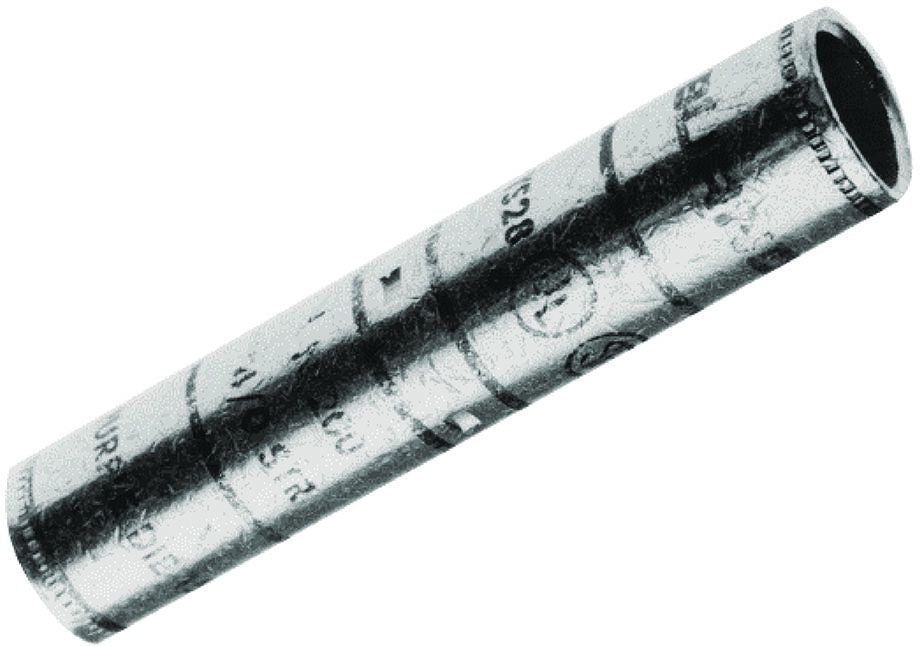

BURNDY YS3C 3 AWG CU Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV

Product Description

The BURNDY YS3C is a compression cable splice designed for wire connections. This product features a long barrel and an internal chamfer for better performance. It is suitable for use with copper cables and can support voltages up to thirty-five kV.

• Suitable for 3 AWG stranded and 2 AWG solid conductors.
• UL and CSA approved with a temperature rating of ninety degrees Celsius.
• Features a white color code for easy identification.

Product Highlights

The YS3C splice is ideal for heavy-duty applications due to its robust construction and specialized features.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 35 kV
• Material: Copper, tin-plated
• Barrel Length: 2.8 inches
• Outer Diameter: 0.38 inches
• Wire Strip Length: 1-5/16 inches
• Die Index: 9
• Application: Wire Splice
• Finish: Tin-Plated
