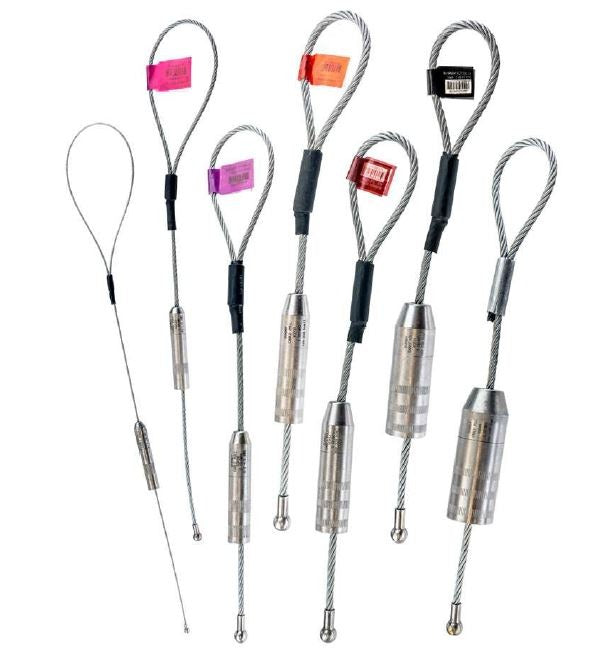

Burndy YCP4CL20CTN Compression Pulling Head (20 inches Lanyard)

Product Description

The Burndy YCP4CL20CTN is a compression pulling head designed for pulling #8 AWG to #4 AWG copper and aluminum conductors. It includes a 20" lanyard to stagger conductors during multiwire pulls and features knurl-crimp bands on the barrel to indicate the proper crimp zone. The grip accepts copper code, copper flex, and aluminum code wire; see sales drawing or SOMI for maximum pull load requirements.

• Range-taking design covers #8 AWG to #4 AWG for copper and aluminum conductors
• 20" lanyard with protective sleeve for conductor staggering; knurl crimp bands indicate proper crimp zone
• 0.38" barrel outside diameter and 1.38" minimum wire strip length; compatible with 444S or 644 series dieless installation tools

Product Highlights

Compression pulling head for #8–#4 AWG copper or aluminum with 20" lanyard and 0.38" barrel OD

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YCP4CL20CTN

Technical Specifications

• Brand: Burndy
• Manufacturer Part Number: YCP4CL20CTN
• Product Type: Compression pulling head
• Application: Compression cable pull
• Conductor Range: #8 AWG to #4 AWG
• Conductor Material: Copper / Aluminum
• Lanyard Length: 20 in
• Barrel Outside Diameter: 0.38 in
• Minimum Wire Strip Length: 1.38 in
• Compatible Tools: 444S or 644 series dieless installation tools
• Crimp Band Indicator: Knurl crimp bands indicate proper crimp zone
• Protective Sleeve: Lanyard includes protective sleeve
• Manufacturer Reference: 50117033
• UPC: 621945647398
• Notes: See sales drawing and/or SOMI for maximum pull load requirements
