Burndy YA8CA3 AL Terminal 8 AWG

Brand: BURNDY
SKU: YA8CA3
Availability: In Stock

Ships same day if ordered by 12 pm
$15.56
$15.56
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

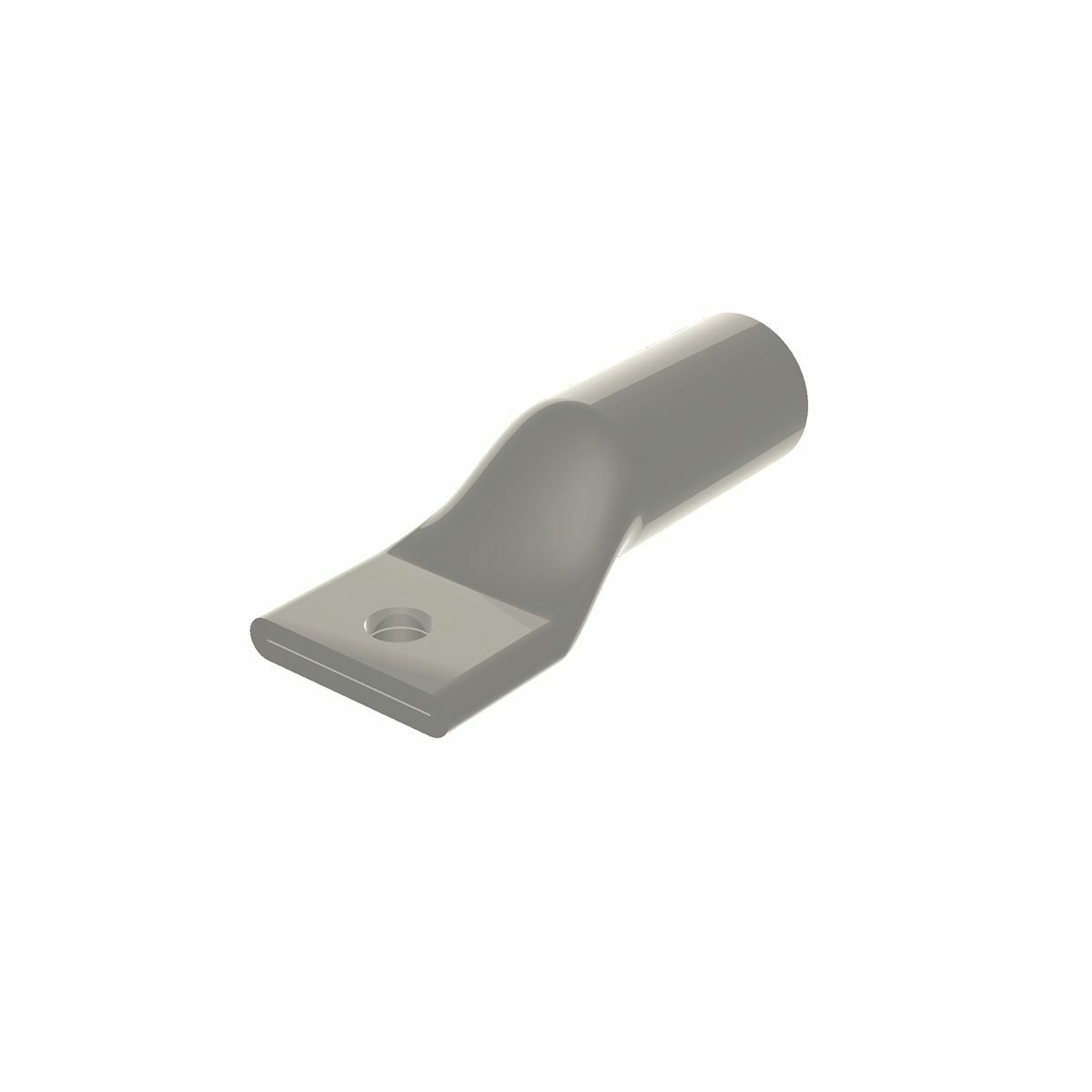

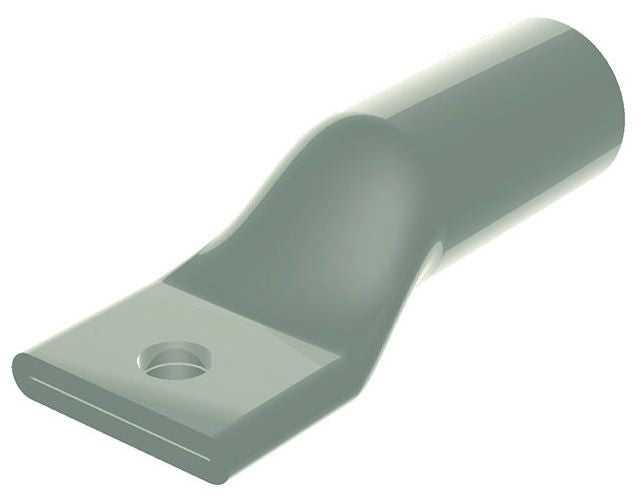

The BURNDY YA8CA3 is an aluminum compression lug designed for terminating 8 AWG aluminum and copper conductors. This HYLUG terminal features a tin-plated finish and is prefilled with PENETROX oxide inhibitor. It is designed for heavy-duty applications up to 35kV and meets UL486B 90 DEG C requirements.

  • Dual-rated for aluminum and copper conductors
  • Prefilled with PENETROX oxide inhibitor
  • Electro-Tin Plating for corrosion resistance

Product Highlights

This aluminum compression lug ensures a reliable electrical connection for both aluminum and copper conductors in demanding applications.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: YA8CA3
  • Country of Origin: USA
Technical Specifications
Catalog Number
YA8CA3
Type
YA-A, Dual Rated
Brand
Burndy
Width
0.53 in
Finish
Tin Plated
Height
0.3 Inch
Length
1.65 Inch
Plated?
Yes
Voltage
35000 Volt
Material
Aluminum
Hole Size
7 mm
Stud Size
0.25 in
Sub Brand
HYLUG
Wire Size
8 AWG
Cable Size
8 AWG Stranded
Max Voltage
35000 V
Applications
For Aluminum And Copper Conductors
Color Coding
Blue
Plating Type
Tin - Electro Plated
Conductor Size
8 AWG
Overall Length
1.65 in
Connection Type
Terminal
Number of Holes
1 Hole
Country of Origin
USA
Buy American Compliant
Y
Standard
UL 486A-486B
Made in USA
Yes
Application
Wire Termination
Special Features
Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals are dual-rated and designed for use on both aluminum and copper conductors. Designed for heavy duty application to 35kV. YA-A terminals are prefilled with PENETROX oxide inhibitor and assembled with color-coded end caps. Designed for a permanent trouble-free electrical termination. Heavy duty wall thickness provides maximum conductivity, low resistance, and ductility. Electro-Tin Plating provides durable long lasting corrosion resistance. Internally bevelled barrel provides easy cable insertion. Meets UL486B 90 DEG C Requirements. Connector is clearly marked with wire size, die index, color-code and proper number and location of crimps. Color-Coded End Caps inserted in barrel end prevents foreign material from entering and contaminating the connector prior to usage. UL Listed 90 DEG C, 600 V - 35 kV
UPC
781810752401
GTIN
00781810752401
Item Type
YA-A, Dual Rated
Voltage Rating
35 kV
Cross Reference Products
ALNS-8-14
ECCN
EAR99
UNSPSC
39121405
Die Color
Blue
Feature - Barrel Type
Standard
Finish Type
Tin-Plated
Conductor - AL Str Size
8 AWG
Conductor - AL Str Size Range
8 AWG
Conductor - Copper Str Size
8 AWG
Conductor - Copper Str Size Range
8 AWG
Conductor - Material
ALUMINUM / COPPER
Conductor Type
CODE
Certification - CSA Approved
Yes
Certification - cULus
No
Certification - ETL
No
Certification - UL Recognized
No
Industry Standard(s)
UL 486A-486B
Standards - Industry Standards Met
UL 486A-486B
Standards - RoHS Compliance Status
CM
UL Listed
Yes
Voltage - Maximum
35000
Physical Attribute - Tongue Angle
Straight
Physical Attribute - Number of Holes
1
Physical Attribute - Tongue Type
Standard
Plated
Y
Trade Name
HYLUG™
Temperature Rating
194
EU RoHS Indicator
Yes
Die Index
374
