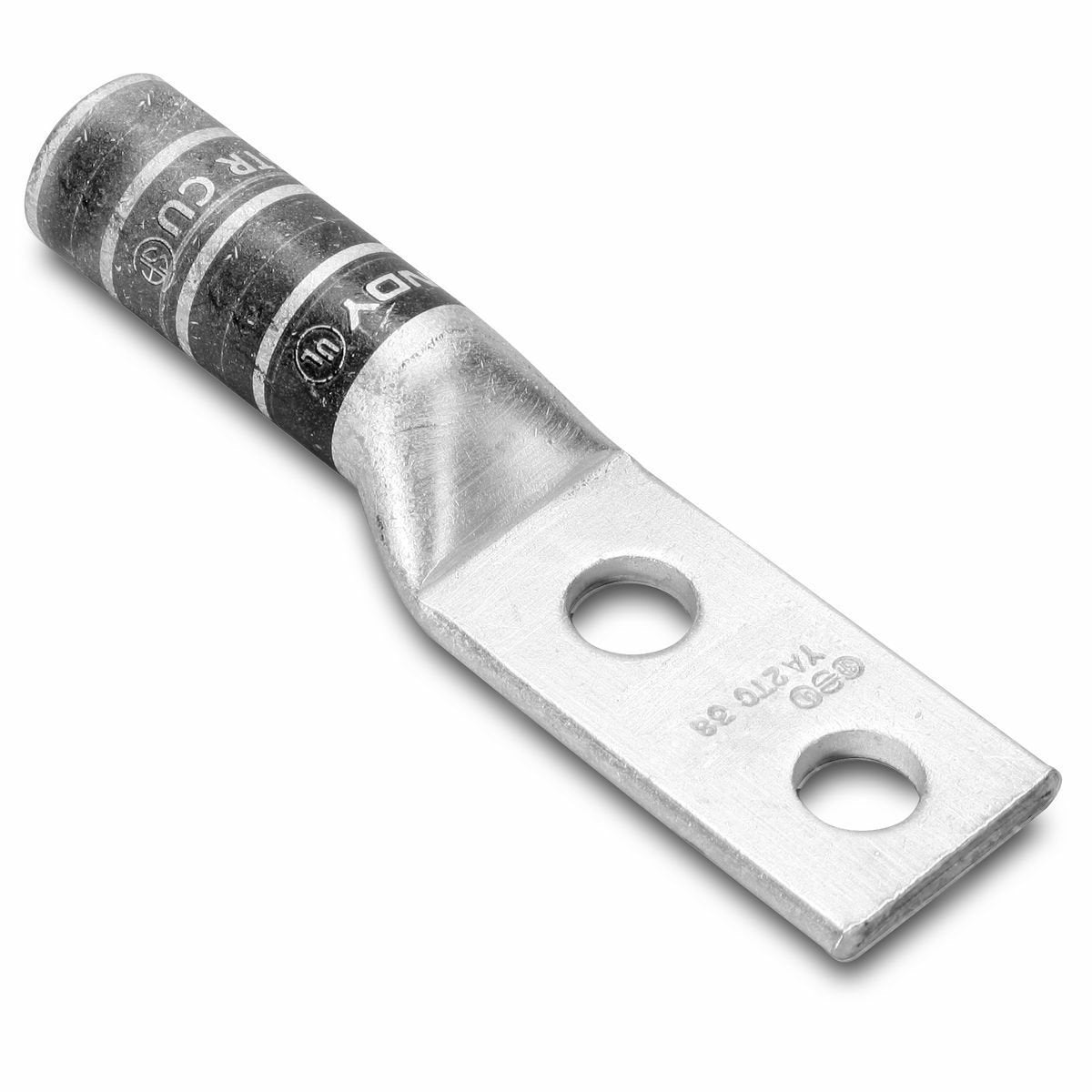

BURNDY YA4C2TC38 4 AWG CU Two Hole 3/8 Stud Size Long Barrel Internal Chamfer

Product Description

The Burndy YA4C2TC38 is a compression cable lug designed for connecting wire conductors efficiently. This product is suitable for termination of 4 AWG stranded copper wires. The lug features a long barrel design with two holes for mounting, making it ideal for various electrical applications.

• Voltage rating of up to thirty-five kV.
• Constructed from high-quality copper and plated with electro-tin for corrosion resistance.
• UL/CSA approved for safety and reliability.

Product Highlights

This cable lug provides a secure connection for commercial stranded copper conductors, with a design that allows for easy installation and a reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA4C2TC38
• Material: Copper
• Voltage Rating: 35 kV
• Application: Wire Termination
• Country of Origin: United States
• Die Index: 8
• Pad Size: 0.58 inches wide x 0.08 inches thick
• Stud Size: 3/8 inch
• Length: 3.26 inches
