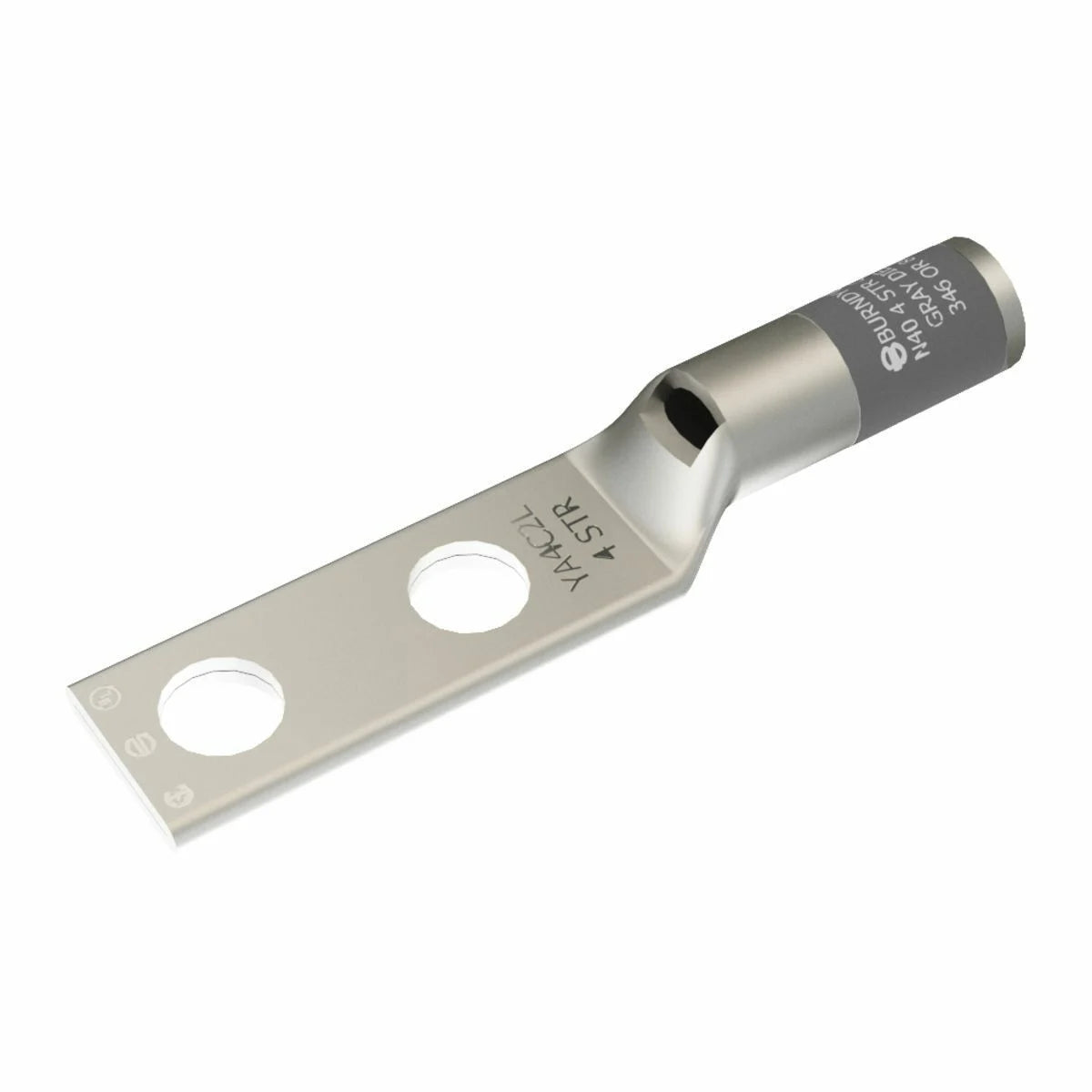

BURNDY YA4C2LN 4 AWG CU Two Hole 1/2 Stud Size 1-3/4 Hole Spacing

Product Description

The BURNDY YA4C2LN is a compression cable lug designed for wire termination. This product is UL and CSA approved and is suitable for conductor sizes up to four AWG. The lug is made from high-quality copper and is electro-tin plated for durability and corrosion resistance.

• Designed for 4 AWG stranded copper conductors
• Rated for voltages up to 35 kV
• Includes an inspection window for easy visual checks

Product Highlights

The lug features a standard barrel design with a wire strip length of seven-eighths inches. It ensures a dependable connection in electrical systems.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA4C2LN
• Application: Wire Termination
• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Special Features: UL Listed 90 °C, wire strip length: 7/8 inch
• Country of Origin: United States
• UPC: 781810501474
