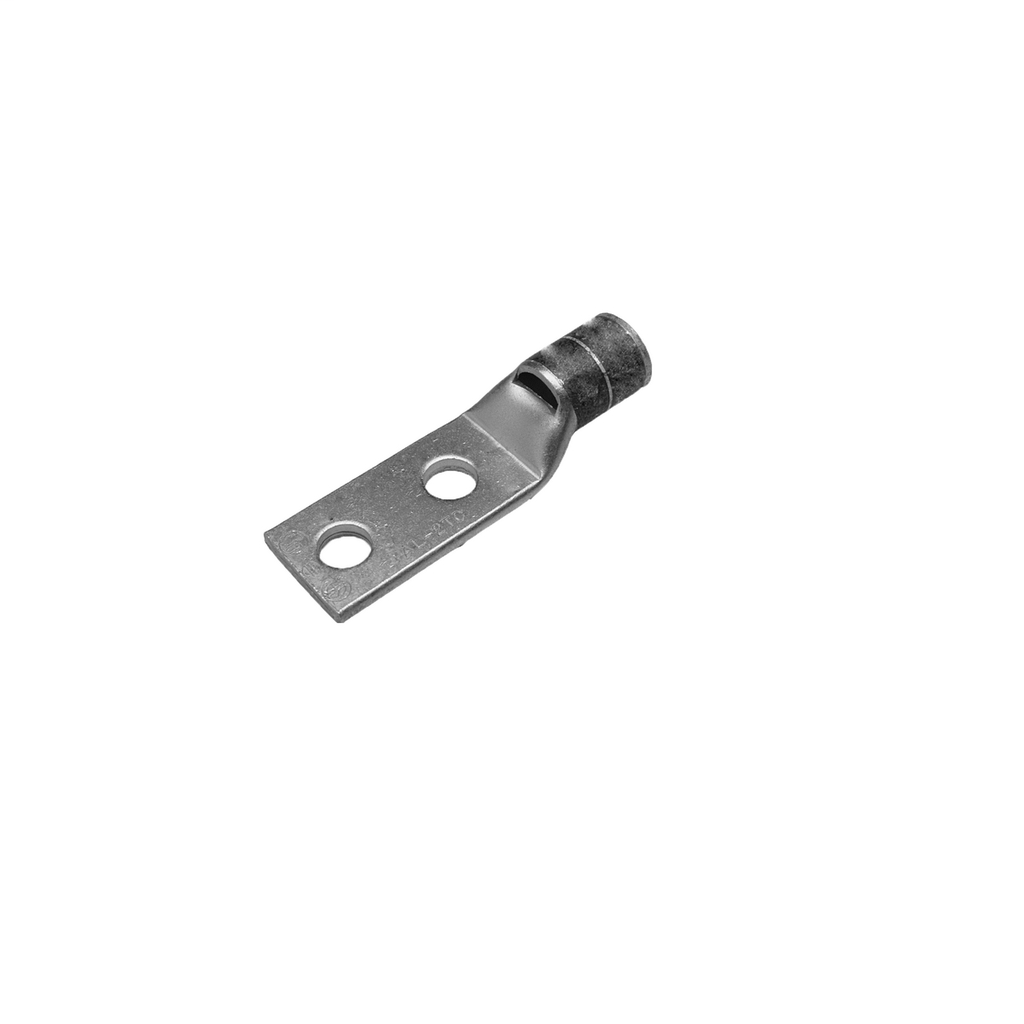

Burndy YA3C2L 3 AWG CU Two Hole Terminal

Product Description

The BURNDY YA3C2L is a copper tubing terminal designed for terminating #3 AWG conductors. This two-hole lug features a 5/16" stud size and 5/8" hole spacing. It has an inspection window, internal chamfer, and is tin-plated for corrosion resistance. UL/CSA certified and suitable for up to 35kV applications.

• Designed with an internal chamfer for smooth wire insertion.
• Electro-tin plated to reduce galvanic corrosion.
• Clearly marked with stamping and barrel color coding.

Product Highlights

This copper compression terminal ensures secure wire termination with its two-hole design and corrosion-resistant plating.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA3C2L
• Country of Origin: USA

Technical Specifications

• Brand: Burndy
• Finish: Tin Plated
• Length: 2.64 Inch
• Plated?: Yes
• Material: Copper
• Hole Size: 8 mm
• Max Voltage: 35000 V
• Color Coding: White
• Plating Type: Tin - Electro Plated
• Conductor Size: 3 AWG
• Overall Length: 2.64 in
• Connection Type: Terminal
• Country of Origin: USA
• Conductor Material: Copper
• Application: Wire Termination
• Catalog Number: YA3C2L
• Connector Type: STANDARD BARREL
• Die Index: 9
• Feature - Barrel Style: Chamfered, Skived
• Feature - Barrel Type: Standard
• Finish Type: Tin-Plated
• Physical Attribute - Number of Holes: 2
• Trade Name: HYLUG™
• Type: Standard Barrel, Tin Plated
• Bolt Size: 5/16 in
• Dimension - B Length fraction: 7/8 in
• Dimension - B Length inch: 0.88 in
• Dimension - Bolt Hole Size inch: 0.33 in
• Dimension - Bolt Size fraction: 1/4
• Dimension - Bolt Size inch: 0.25
• Dimension - D inch: 1.45 in
• Dimension - Hole Size fraction: 1/4
• Dimension - Hole Size inch: 0.27
• Dimension - Hole Size mm: 6.9 mm
• Dimension - L Length Overall mm: 67 mm
• Dimension - Length Overall inch: 2.64 in
• Dimension - N inch: 0.34 in
• Dimension - Outside Diameter inch: 0.38 in
• Dimension - Pad Width inch: 0.55 in
• Dimension - Strip Length inch: 15/16
• Dimension - Stud Size fraction: 1/4
• Dimension - Stud Size inch: 5/16
• Dimension - Z (inch): 0.36 in
• Outside Diameter: 0.38 in
• Physical Attribute - Tongue Angle: Straight
• Voltage - Maximum: 35000
• Voltage Rating: 35 kV
• Conductor - Copper DLO Size Range: N/A
• Conductor - Copper Solid Size: 2 AWG
• Conductor - Copper Solid Size Range: 2 AWG
• Conductor - Copper Str Navy Size: 50 (19) Navy
• Conductor - Copper Str Navy Size Range: 50 (19) Navy
• Conductor - Copper Str Size: 3 AWG
• Conductor - Copper Str Size Range: 3 AWG
• Conductor - Material: COPPER
• Conductor Type: CODE
• Industry Standard(s): UL 486A-486B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Voltage: 600V
• Max Temp: 90 deg C
• Standards: CSA Certified, RoHS Compliant
• UNSPSC Code: 39120000
• Manufacturer Part Number: YA3C2L
• Stud Size: 0.25 in
