Burndy YA32L2TC38 400 kcmil CU, Two Hole, 3/8 Stud Size, Standard Barrel

Product Description

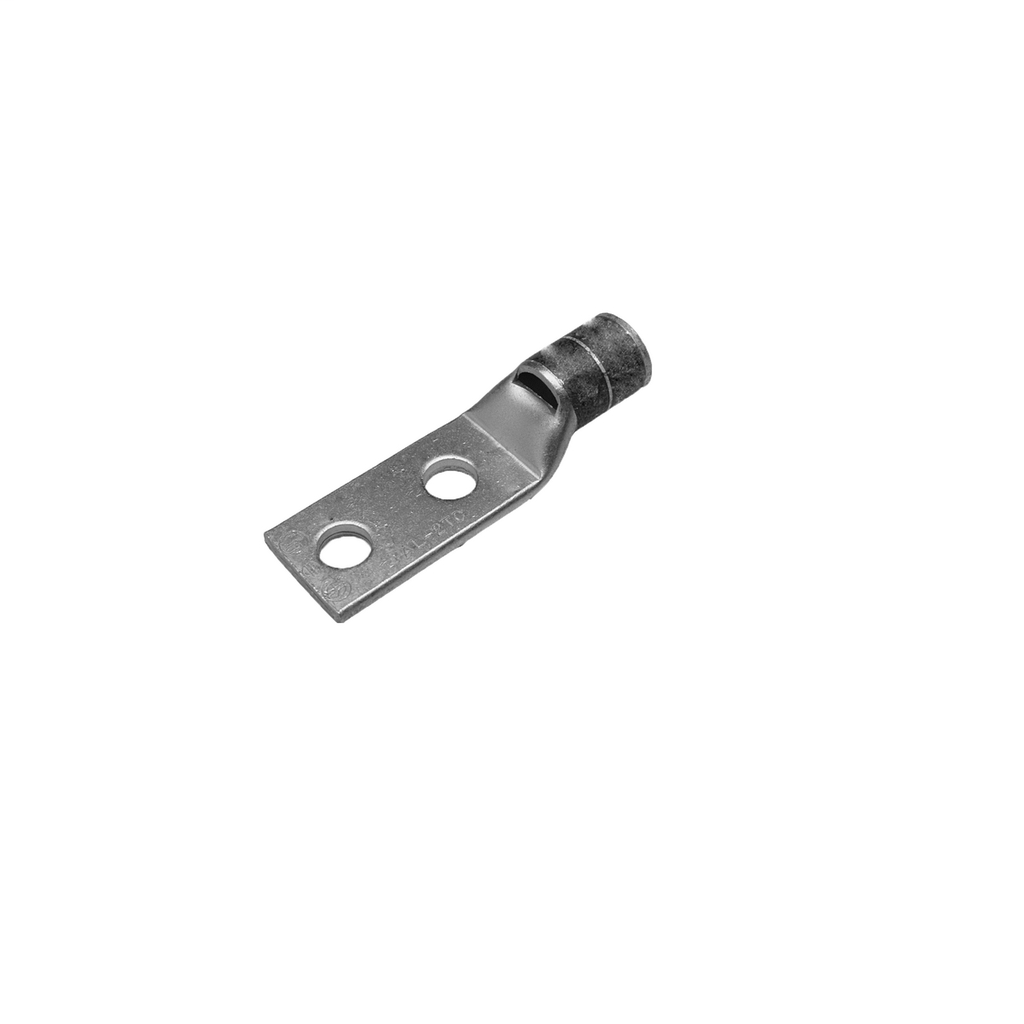

The Burndy YA32L2TC38 is a CU compression tubular terminal designed for code conductors. This 2-hole terminal features an inspection window and is tin plated. It is suitable for use with 400 kcmil conductors and is designed with an internal chamfer for smooth wire insertion. The terminal is UL/CSA certified and supports up to 35kV applications.

• Designed for 400 kcmil conductors
• Features a 2-hole design with an inspection window
• Tin plated for corrosion resistance

Product Highlights

This Burndy compression terminal ensures secure wire termination with its robust construction and adherence to industry standards, suitable for various electrical applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA32L2TC38
• Country of Origin: US - United States

Technical Specifications

• Brand: Burndy
• MPN: YA32L2TC38
• Conductor Size: 400 KCMIL
• Conductor Material: Copper
• Connection Type: Terminal
• Stud Size: 3/8 Inch
• Number of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Maximum Voltage: 35000 V
• Overall Length: 3.69 in
• Finish: Tin Plated
• Plating Type: Tin
• Material: Copper
• CSA Approved: Yes
• UL Listed: Yes
• Die Index: 19
• Barrel Type: Standard
• Application: Wire Termination
• Voltage Rating: 35 kV
• Dimension - Bolt Hole Size inch: 0.39 in
• Dimension - Hole Size inch: 0.41 in
• Dimension - Outside Diameter inch: 0.95 in
• Dimension - Pad Width inch: 1.40 in
• Dimension - Strip Length inch: 1.25
• Physical Attribute - Tongue Angle: Straight
• Conductor Type: CODE
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• UPC: 781810018163
• Termination Method: Crimp
• Mounting: Cable Mount
• Maximum Operating Temperature (°C): 90
