BURNDY YA31 350 KCMIL CU One Hole 1/2 Stud Size Long Barrel Internal Chamfer Replacement MPN

Product Description

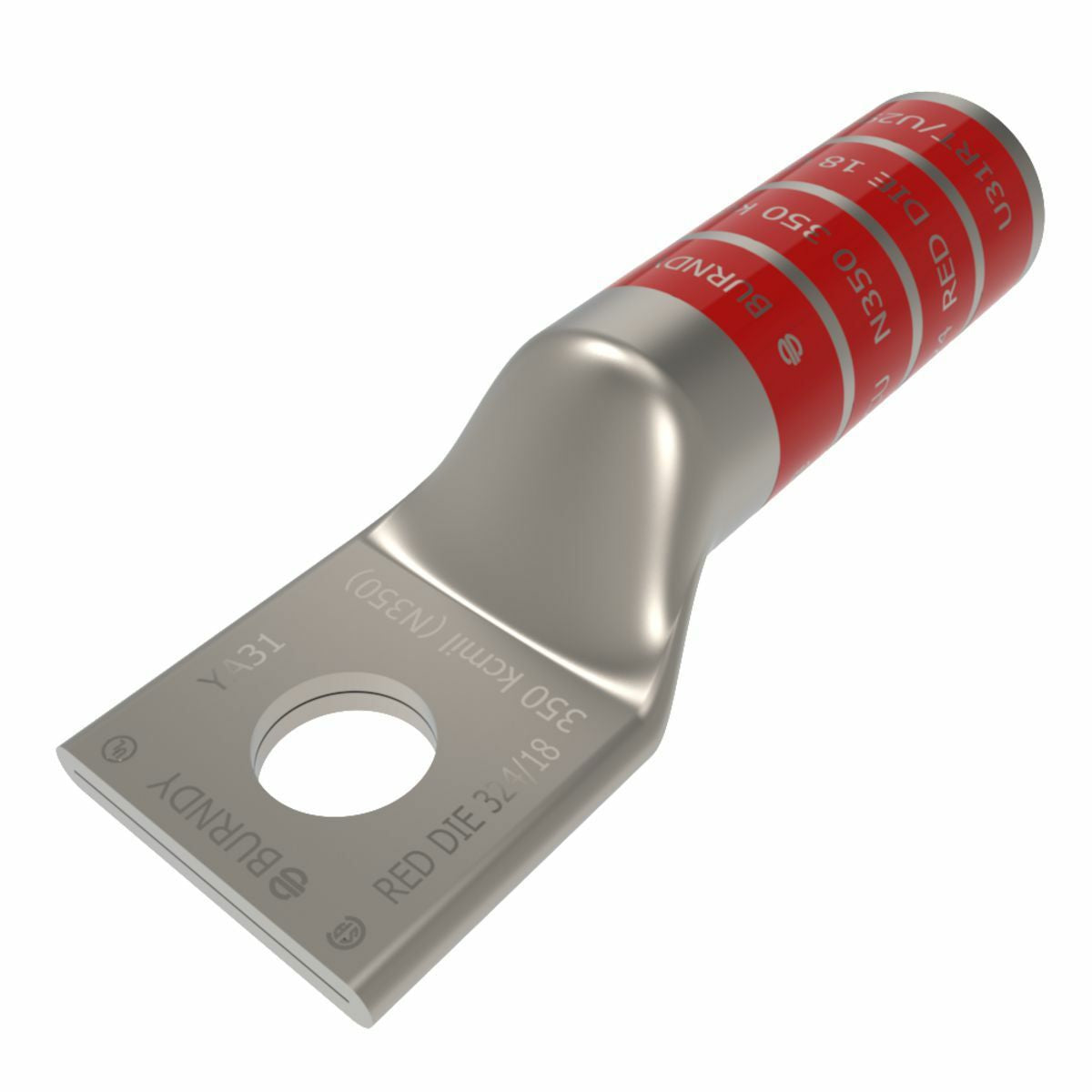

The BURNDY YA31 is a copper compression cable lug designed for effective wire termination. This product is UL listed for use with a voltage rating of up to thirty-five kilovolts. It is suitable for applications requiring a robust and reliable connection in various electrical setups.

• Material: Copper, Electro-Tin Plated
• Voltage Rating: Up to 35 kV
• Die Index: 18 or 324

Product Highlights

The BURNDY YA31 cable lug features a long barrel design with an internal chamfer, ensuring a secure fit and easy wire insertion. It supports a stud size of one-half inch and has a wire strip length of two and one-sixteenth inches.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Made in USA: Yes

Technical Specifications

• Catalog Number: YA31
• Application: Wire Termination
• Material: Copper
• Temperature Rating: 90 °C
• Special Features: UL Listed 90 °C, 600 V - 35 kV, available in 45 and 90-degree angles
• Country of Origin: United States
• Cross Reference Products: L35048, 54915BE, CTL350L-12
• UPC: 781810504956
