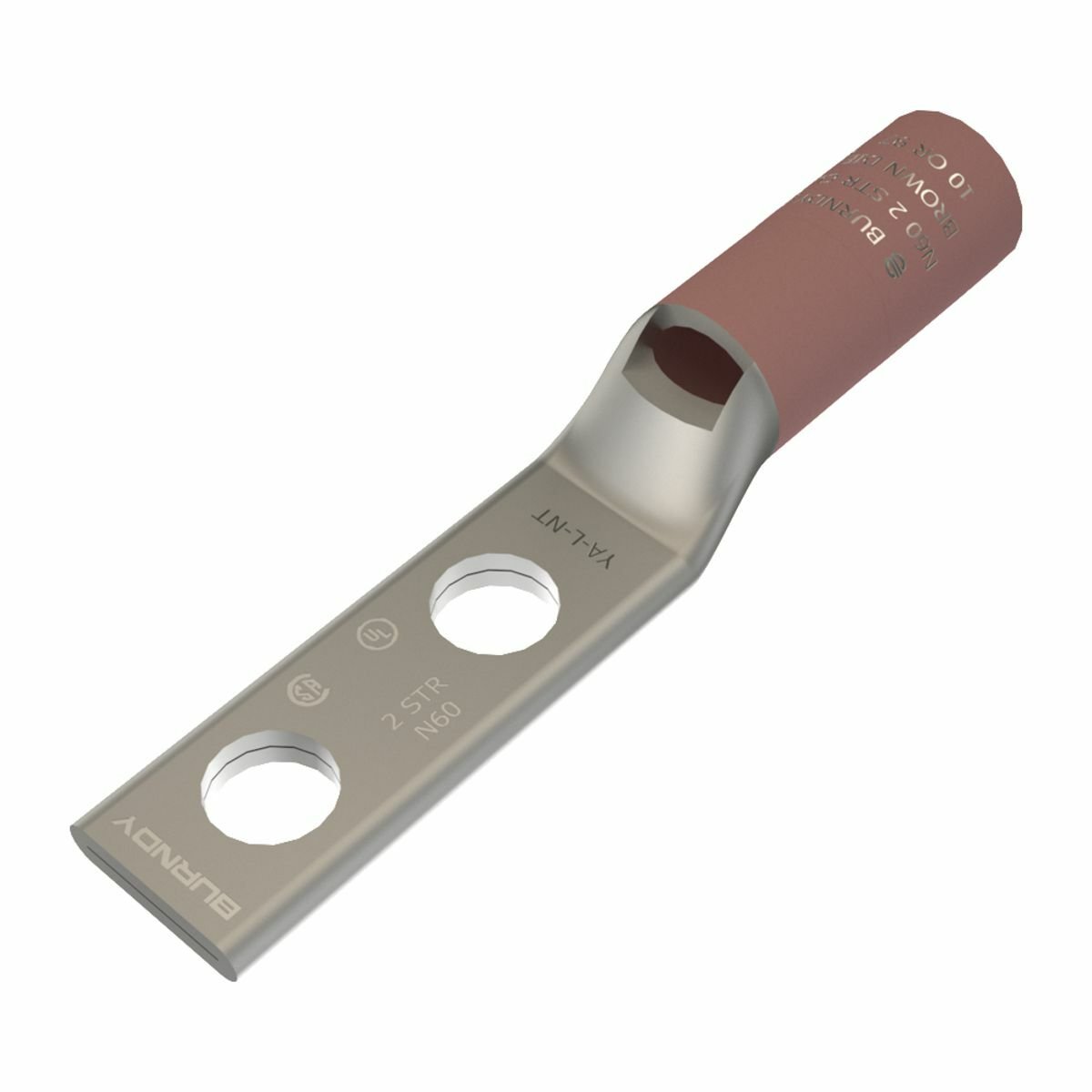

Burndy YA2CL2NT14 2 AWG CU Standard Barrel Lug 1/4 Stud Size Brown Color Code

Product Description

The Burndy YA2CL2NT14 is a two-hole terminal lug designed for connecting 2 AWG stranded copper wire. This lug features a standard barrel with inspection window and narrow tongue internal chamfer. It is suitable for applications requiring reliable wire termination with a voltage rating of up to thirty-five kilovolts.

• Two-hole design for secure wire connections.
• UL and CSA listed, rated up to 90 degrees Celsius.
• Constructed from electrolytic tin-plated copper for enhanced conductivity.

Product Highlights

The Burndy YA2CL2NT14 is ideal for use in both industrial and commercial electrical systems where durable and dependable connections are required.

Product Information

Standard Information

• Brand: Burndy
• Catalog Number: YA2CL2NT14

Technical Specifications

• Voltage Rating: 35 kV
• Material: Copper
• Wire Size: 2 AWG Stranded
• Stud Size: 1/4 inch
• Hole Spacing: 5/8 inch
• Color Code: Brown
• Die Index: 10
• Country of Origin: USA
