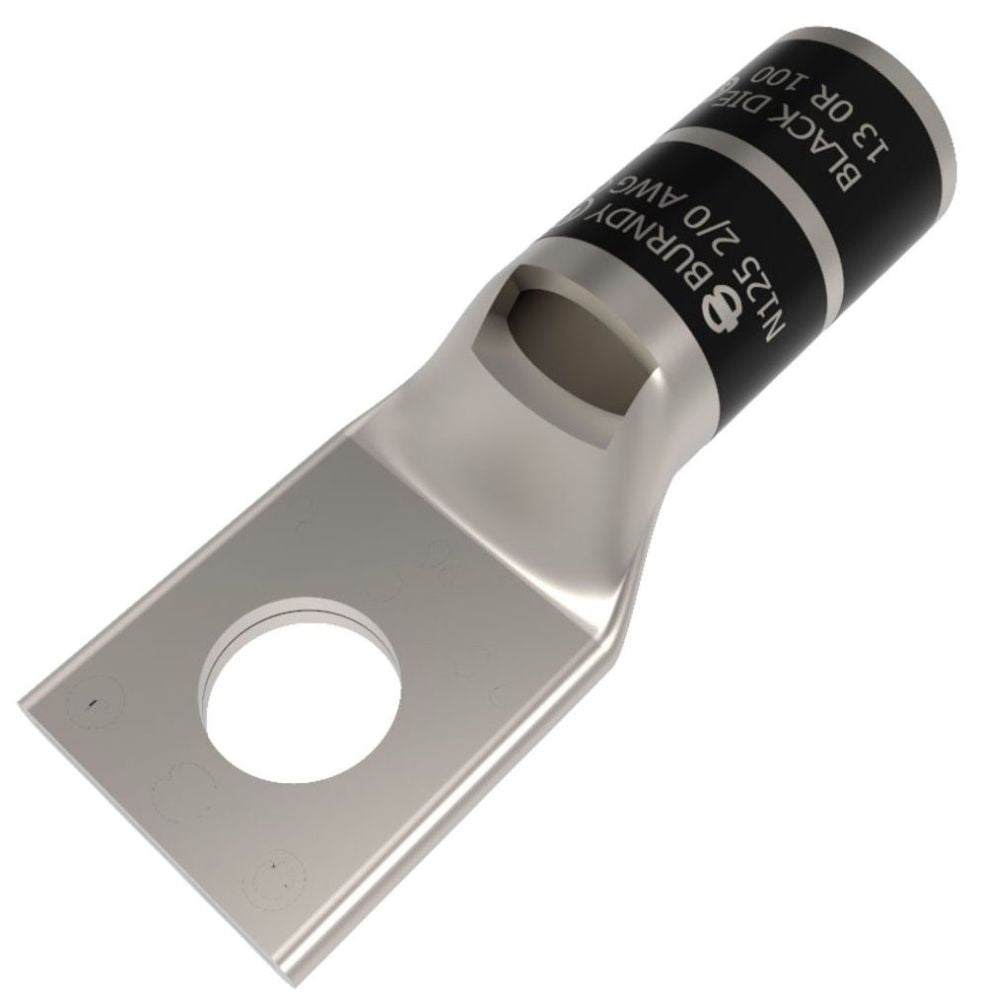

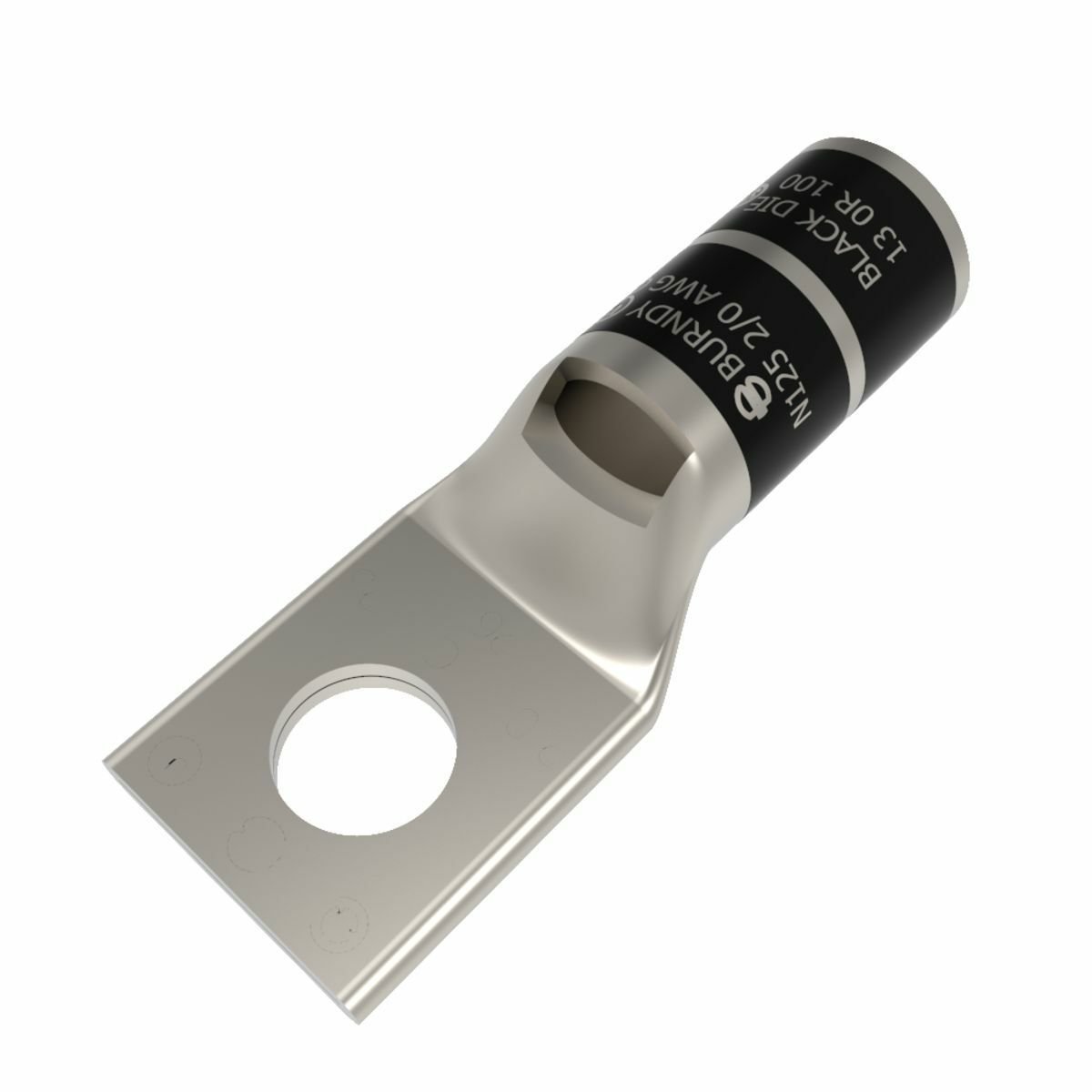

BURNDY YA26L3 Copper Compression Lug 2/0 AWG 5/16 Stud Tin Plated

Product Description

The BURNDY YA26L3 is a copper compression lug designed for reliable wire termination. This lug accommodates a conductor size of 2/0 AWG and features a 5/16 inch stud size. The short barrel design ensures a secure connection, while the inspection window allows for easy visual confirmation.

• Compatible with 2/0 AWG stranded copper conductors
• UL Listed for 90 degree Celsius, 600V - 35kV applications
• Made in the USA from high-quality electro-tin plated copper

Product Highlights

This compression lug is suitable for various electrical applications, specifically in wire connections where reliability is crucial.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY
• Country of Origin: United States
• Application: Wire Termination

Technical Specifications

• Catalog Number: YA26L3
• Conductor Material: Copper
• Special Features: UL Listed, inspection window
• Voltage Rating: 35kV
• Wire Strip Length: 1 inch
• Overall Length: 2.06 inches
• Die Index: 13
• Stud Size: 5/16 inches
