Burndy Y282CR Compression Splice Reducer Adapter, Cu

Product Description

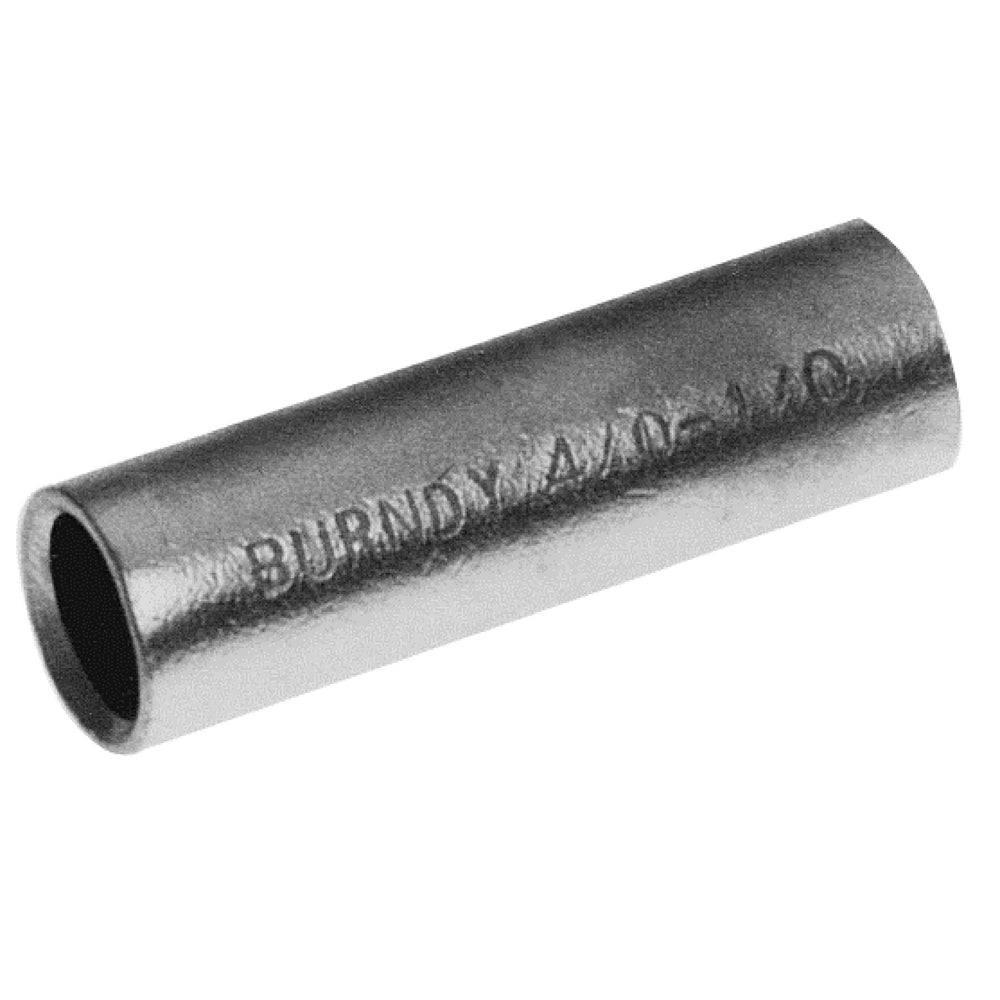

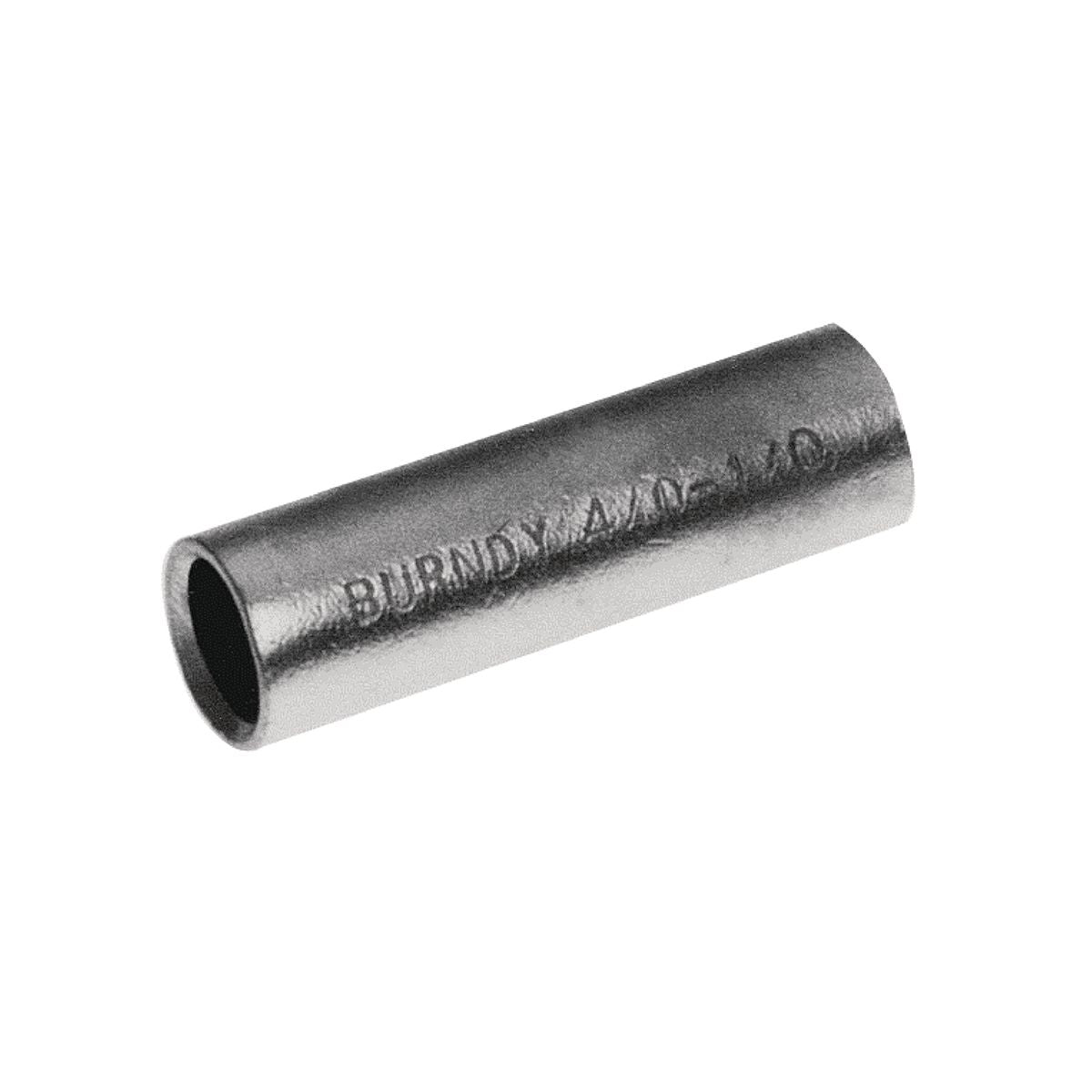

The BURNDY Y282CR is a copper reducing sleeve that allows a larger terminal or splice to accommodate a smaller wire gauge. This compression splice reducer adapter is tin-plated and suitable for wire reducing splice adapter insert applications. It supports a maximum voltage of 35000V and is designed for 4/0 AWG to 2 AWG copper conductors.

• Allows larger terminal or splice to accommodate a smaller wire gauge
• Tin-plated for enhanced conductivity and corrosion resistance
• Suitable for up to 35000V applications

Product Highlights

The BURNDY Y282CR adapter facilitates secure and efficient wire size transitions in electrical connections.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: Y282CR
• Country of Origin: US - United States

Technical Specifications

• Application: Wire Reducing Splice Adapter Insert
• Catalog Number: Y282CR
• Color Code: Purple
• Connector Type: LONG BARREL
• Die Index: 15
• EU RoHS Indicator: Yes
• Feature - Barrel Type: Long
• Finish Type: Tin-Plated
• Material: Copper
• Plated: Y
• Plating Type: Tinned
• Sub Brand: Burndy
• Temperature Rating: 194
• Type: Y-R, Compression
• UPC: 781810000984
• UPC 14 Digit GTIN: 00781810000984
• Dimension - B Length inch: 1.75 in
• Dimension - L Length Overall mm: 44 mm
• Dimension - Length Overall inch: 1.75 in
• Dimension - Outside Diameter inch: 0.534 in
• Voltage - Maximum: 35000
• Conductor - Copper Str Run: 4/0 AWG
• Conductor - Copper Str Run Range: 4/0 AWG
• Conductor - Copper Str Size Range: 2 AWG
• Conductor - Copper Str Tap: 2 AWG
• Conductor - Copper Str Tap Range: 2 AWG
• Conductor - Material: COPPER
• Conductor Type: CODE
• Wire Size: 2 AWG
• Color: Purple
• Color Family: Purple
• Applications: For Copper Conductors, Allowing Large Size, Long Barrel, Copper Long Barrel HYDENT, HYSPLICE And HYTEE Terminals, Splices, And T Taps To Be Used On Smaller Conductor Sizes
• Barrel Type: Long
• Color Coding: Purple
• Conductor Material: COPPER
• Conductor Size: 4/0 AWG/2 AWG
• Connection Type: Long Barrel
• Max Voltage: 35000 V
• Plated?: Yes
• Size: 1.75 IN Length X 0.534 IN Maximum Outer-Diameter
• Voltage: 35,000 Volt
• Finish: Tin-Plated,Tin-Plated
• Product UPC: 78181000098
• Height: 0.53 Inch
• Length: 1-3/4 Inch
• Overall Length: 1.75 in
