BURNDY TP16-6 BUR TP16-6 22-16INS RING LUG RING-

Product Description

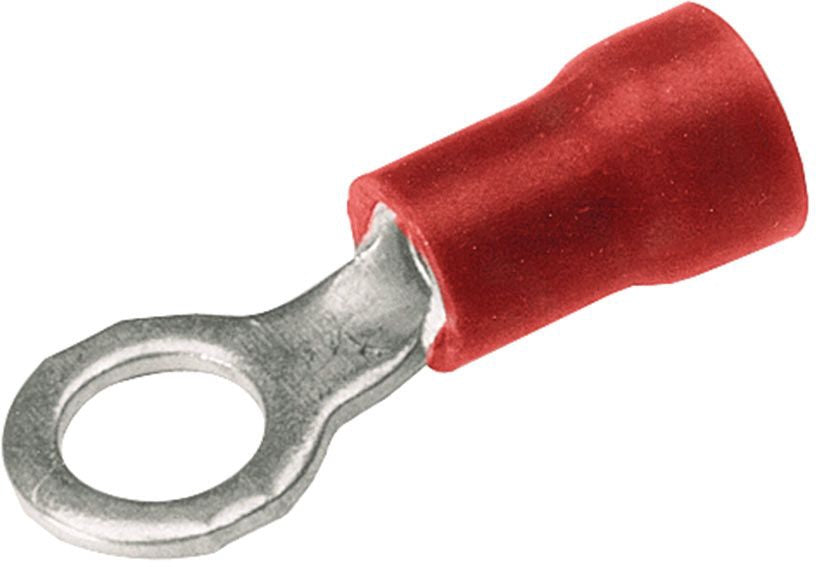

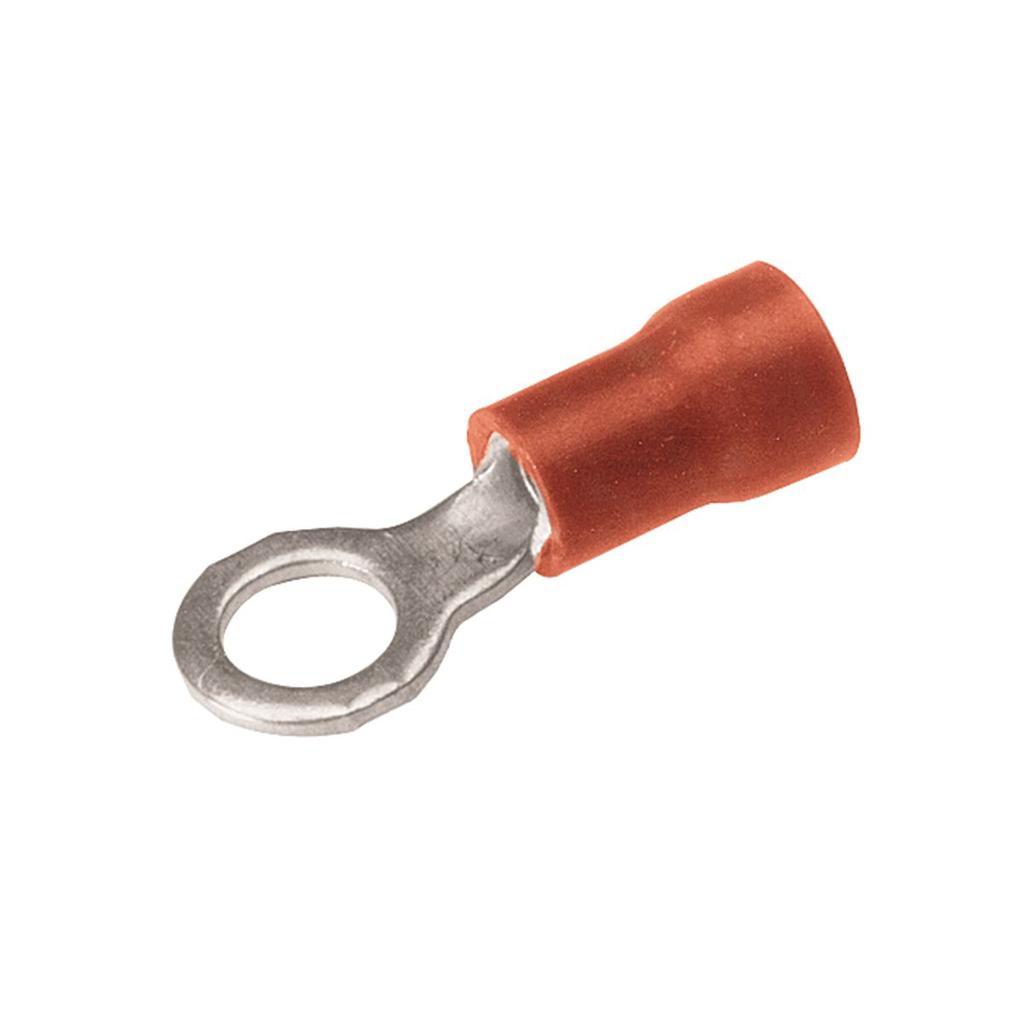

The BURNDY TP16-6 is a compression ring tongue terminal designed for light duty applications. This terminal is suitable for conductor sizes ranging from twenty-two AWG to sixteen AWG. The terminal features a funnel entry type and is insulated with PVC for added safety and reliability.

• Material: Electrolytic Tin Plated Copper
• Temperature Rating: 105 Deg C
• Voltage Rating: 600 V

Product Highlights

This terminal is ideal for electrical connections in various industrial and commercial applications. It provides reliable connectivity with a maximum insulation diameter of zero point one four five inches.

Product Information

Standard Information

• Manufacturer: BURNDY
• UPC: 78181071444

Technical Specifications

• Conductor Size Range: 22 AWG to 16 AWG
• Insulation Type: PVC Insulated
• Stud Size Compatibility: #4 to #6
• Wire Strip Length: 13/64 Inch
• Overall Dimension: 0.74 Inch Length x 0.25 Inch Width
• Approval: UL, CSA, RoHS Compatible
